EMCO Turn E 65

Photo Gallery

EMCO - Turn E 65AT-TUR-EMC-2018-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

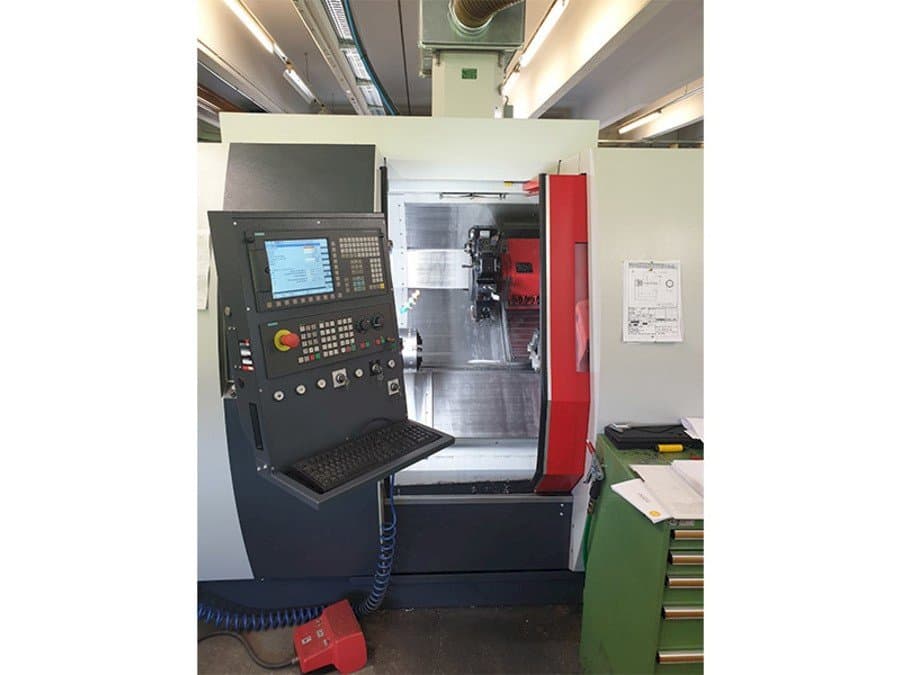

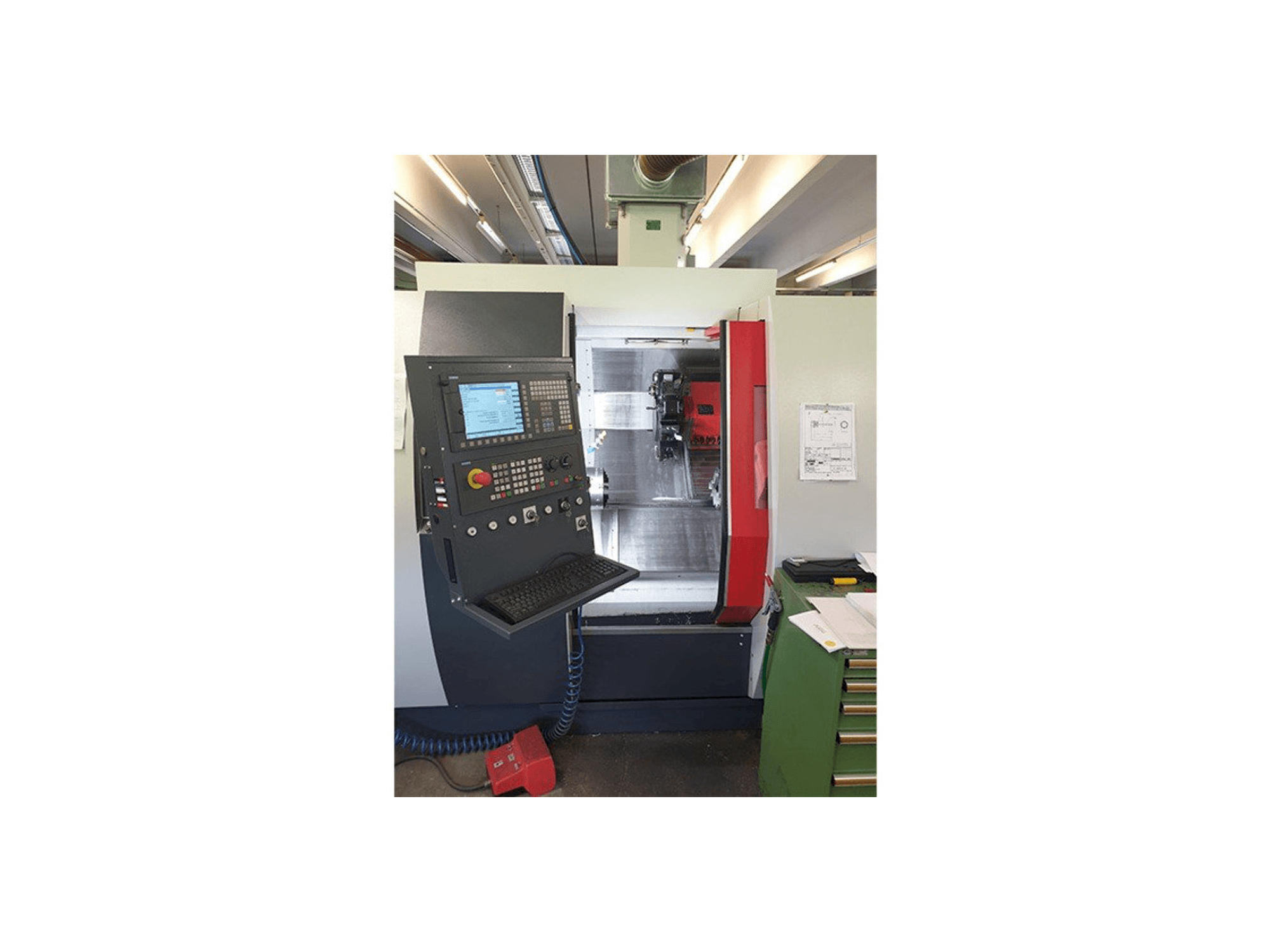

EMCO Turn E 65 Lathe

Show in original language

This EMCO Turn E 65 Lathe was manufactured in the year 2018. It has a record of only 388 production hours. It is equipped with a Siemens Sinumerik 828D control unit. This double spindle machine can work wit a spindle speed up to 5000 rpm, a max turning diameter 500 mm, and a max part length 520 mm. It includes some tools as additional equipment.

Overview

brand: EMCO
year: 2018
MODEL: Turn E 65
production hours: 388
application type: Turning
Location: Austria
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - EMCO Turn E 65

Control Unit

Model: Sinumerik 828D
Brand: SIEMENS

Main drive

Spindle speed range: 0 - 5000 1/MIN
Spindle motor power: 22 kw
Spindle bore: 73 (105) mm

Movement

X-AXIS Movement: 260 mm
Y-AXIS Movement: 80 (+/-40) mm
Z-AXIS Movement: 610 mm

Media

Main electronic connection: 3x400V - 50/60Hz

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition
The machine is ready for operation and under power and can be inspected at any time by appointment

Technical Machine Benefits

Double spindle machine
Counter spindle with tailstock function. (contact pressure programmable via current consumption)
Vdi-40 revolver - 12-station, driven
Automatic door
Swing diameter over bed 610 mm
Swing diameter over cross slide 360 mm
Center distance for tailstock version 682 mm distance main spindle - counter spindle 840 mm
Max. Turning diameter 500 mm
Max. Part length 520 mm
Max. Bar diameter 65 (95) mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
