- EMSIL GMMC-6000 Universal Machining center
Show in original language

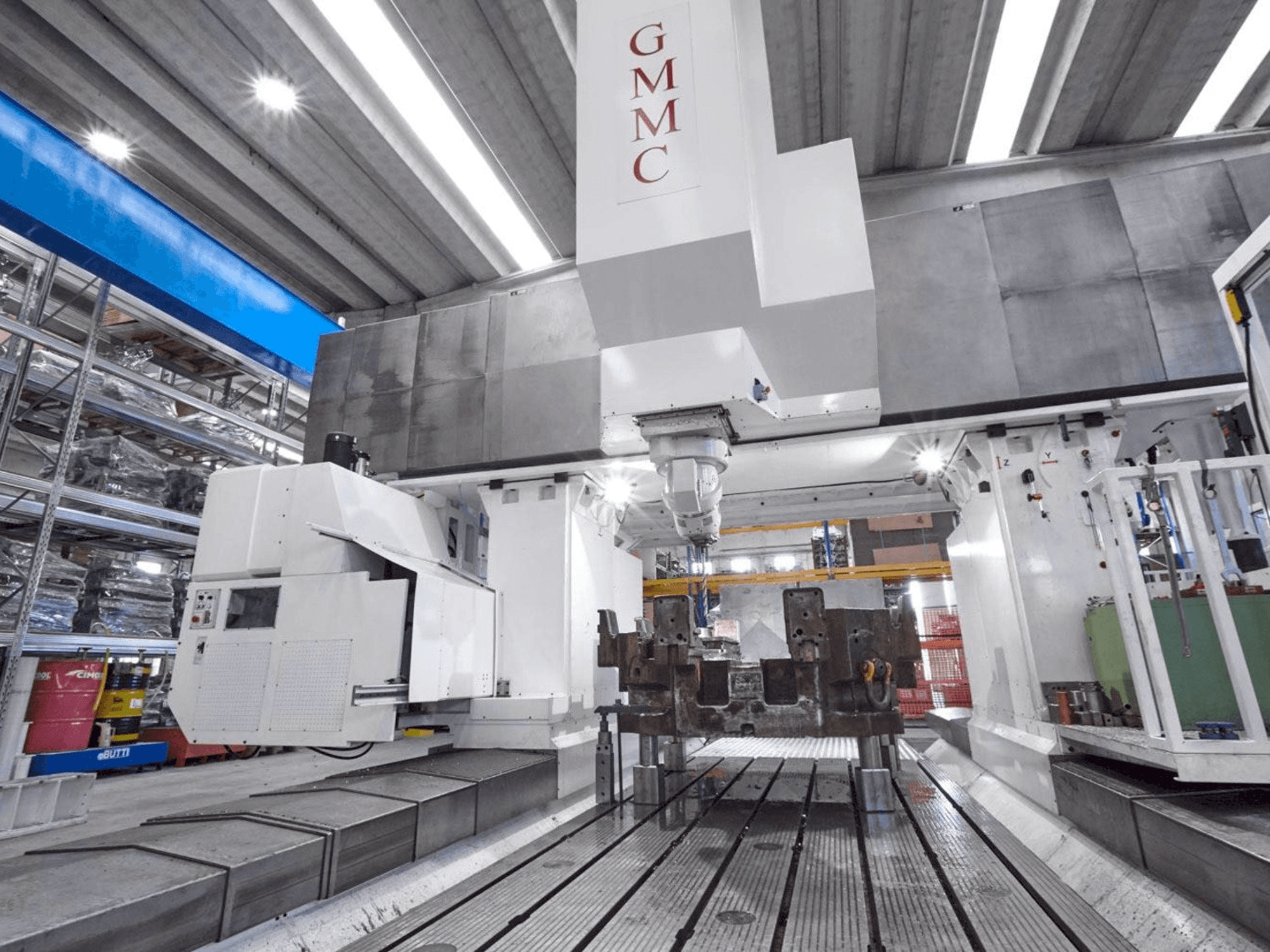

This EMSIL GMMC-6000 Universal Machining center was made in 2023. It is equipped with a Fanuc 31i control unit. The machine has a spindle speed of 3000 rpm.
Overview
- brand: Emsil
- year: 2023
- MODEL: GMMC-6000
- application type: Milling
- Location: Romania
- machine type: Universal Machining Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - Emsil GMMC-6000
Control Unit
- Model: 31i
- Brand: FANUC
Main drive
- Spindle speed range: 3000 1/MIN
- Spindle motor power: 37/45 kW
Movement
- X-AXIS Movement: 6000 mm
- Y-AXIS Movement: 3000 mm
- Z-AXIS Movement: 1500 mm
Table
- Outer length: 6000 mm
- Outer width: 2000 mm
- Table load: 5000 kg/m2
Additional Information
- Technical Machine Benefits:
- - Distance between columns: 2800 mm
- - Ram section : 470x570 mm
- - Working feed on axes: 0-12000 mm/min
- - Rapid feed on axes: 15000 mm/min
- - Taper: iso-50 (din69871)
- - Servomotors ac (brushless)
- - Telescopic covers for x and y axis
- - Internal/external tool cooling
- - Centralized hydraulic and lubrication unit
- - Foundation elements, 1 set
- Qualitative Machine Benefits:
- - Painting: ral7035
- - Heidenhain linear scales for x and y axes & guideway with integrated measuring system schneeberger for z axis
- - Chip evacuation system (2 pieces chip conveyors)
- - Tu-37 automatic indexing milling head (undetacheable)
- - A axis: 360°
- - C axis: ±180°
- - Maximum torque: 1400 nm
- - Pick up station with 2 posts for automatic changing of the head
- - The following options are not included in the above price of standard machine: Heidenhain linear scales for X and Y axes & guideway with integrated measuring system Schneeberger for Z axis: Price: 20.000,00 Eur Fixed table 6000x2000 mm, max. load on table: 5000 kg/m² Price: 42.000,00 Eur Chip evacuation system (2 pieces chip conveyors) Price: 25.000,00 Eur TU-37 automatic indexing milling head (undetacheable) ➢ A axis: 360° ➢ C axis: ±180° ➢ 2.5° indexing in 2 planes ➢ Maximum power: 37 Kw ➢ Maximum torque: 1400 Nm ➢ Maximum speed: 3000 rpm ➢ Taper: ISO-50 (DIN69871) Price: 105.000,00 Eur Pick up station with 2 posts for automatic changing of the head Price: 45.000,00 Eur
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
