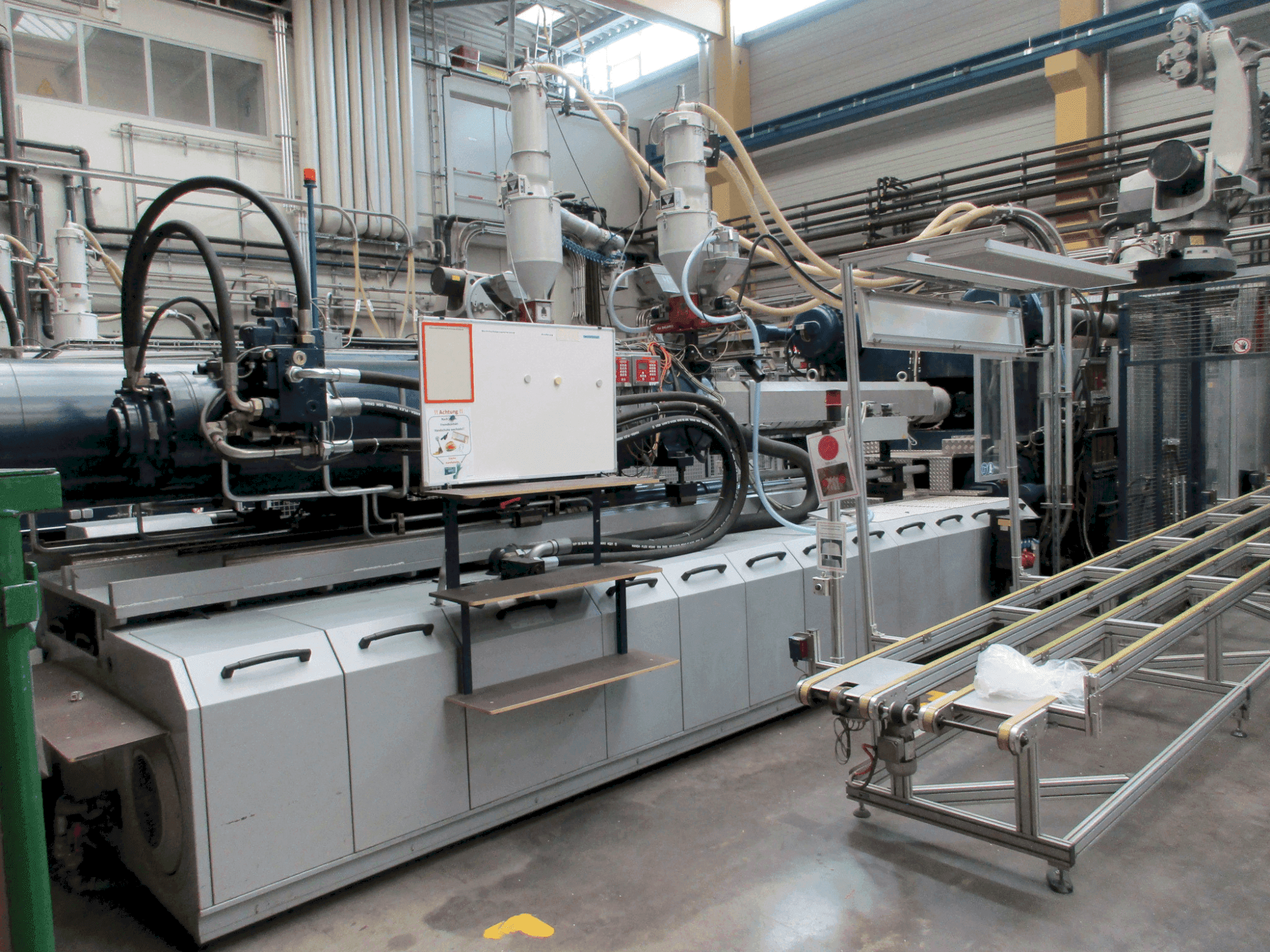

Front view of Engel DUO 18000H/10000H/1300 Combi machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Engel DUO 18000H/10000H/1300 Combi

Photo Gallery

Engel - DUO 18000H/10000H/1300 CombiDE-INJ-ENG-2006-00005

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
ENGEL DUO 18000H/10000H/1300 Combi 2K Injection Moulding Machine

Show in original language

This ENGEL DUO 18000H/10000H/1300 Combi 2K Injection Moulding Machine was manufactured in 2006. It has a clamping force of 13000 kN with 3000 mm opening stroke and is equipped with 2 injection units: #1 = 150mm screw diameter & #2 = 135mm screw diameter. In total, it has operated 61,555 hours. See original tech specs attached as PDF (German). For any further questions feel free to contact us at any time.

Overview

brand: Engel
year: 2006
MODEL: DUO 18000H/10000H/1300 Combi
production hours: 61555
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - Engel DUO 18000H/10000H/1300 Combi

General Data

Machine weight: 42000 kg

Injection Unit

Screw diameter: 150/135 mm
Stroke volume: 10960/8160 CM³
Injection pressure: 1420/1420 BAR
Plasticizing rate max.: 1340/890 cm3/s
Screw speed: 85/80 r/min
Heating capacity: 118/97 kW
Adjustable heating zones: 7/7

Clamping unit

Clamping force: 13000 kN
Opening stroke: 2200
Max open daylight: 4000 mm
Mould height min: 1000 mm
Mould height max: 1800 mm
Size of mold platens: 2200 x 1990 mm
Ejector stroke: 300 mm
Ejector force for / back: 230 kN

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
