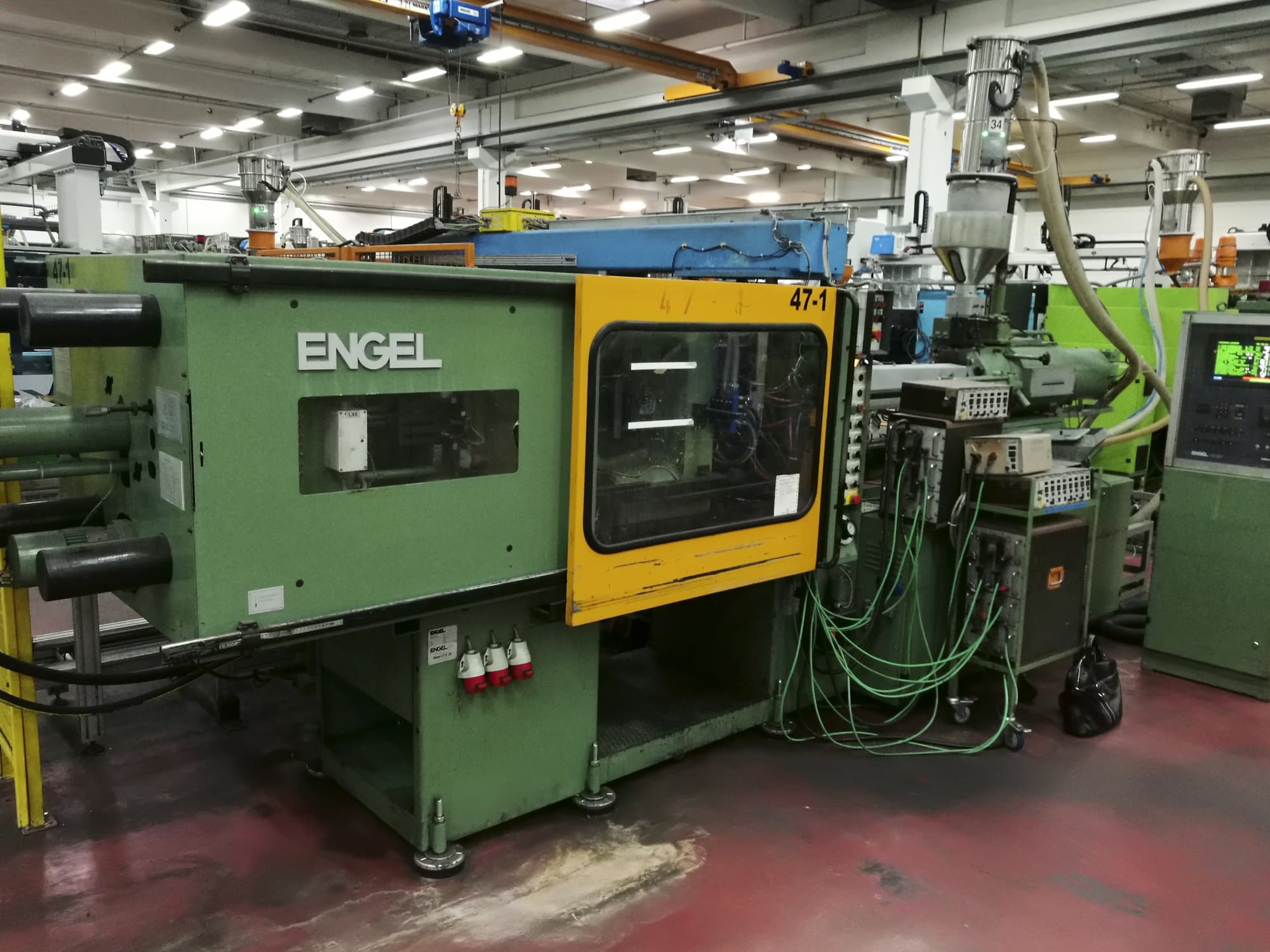

ENGEL ES 1300/200 Injection Moulding Machine

Show in original language

This ENGEL ES 1300/200 Injection Moulding Machine was manufactured in Germany in 1989 and has a working record of 132515 production hours. The model is operated through an ENGEL CC90 control unit, and stands out for incorporating two core pull cylinders. In the past, this machine has handled mainly PP56M10 polymer, producing wheels for shopping carts.

Overview

brand: Engel
year: 1989
MODEL: ES 1300/200
production hours: 132515
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
control unit brand: ENGEL

Technical Information - Engel ES 1300/200

General Data

Measurements width: 6850 mm
Measurements depth: 1630 mm
Measurements height: 2440 mm
Machine weight: 8500 kg

Control Unit

Model: CC90
Brand: ENGEL

Injection Unit

Screw diameter: 70 mm
Shot weight: 900 g/PS
Stroke volume: 1000 cm³
Injection pressure: 1100 bar
Plasticizing rate max.: 380 g/s PS
Screw speed: 5-210 1/min
Heating capacity: 18.6 kW
Adjustable heating zones: 4
Nozzle pressure: 96 kN

Clamping unit

Clamping force: 2000 kN
Opening stroke: 510 mm
Distance between bars: 510 x 510 mm
Mould height min: 200 mm
Mould height max: 510 mm
Size of mold platens: 770 x 770 mm
Ejector stroke: 150 mm
Ejector force for / back: 61 kN

Media

Pump drive power: 37 kVA
Oil tank: 360 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
