ENGEL ES 7000/1200 B Injection Moulding Machine

Show in original language

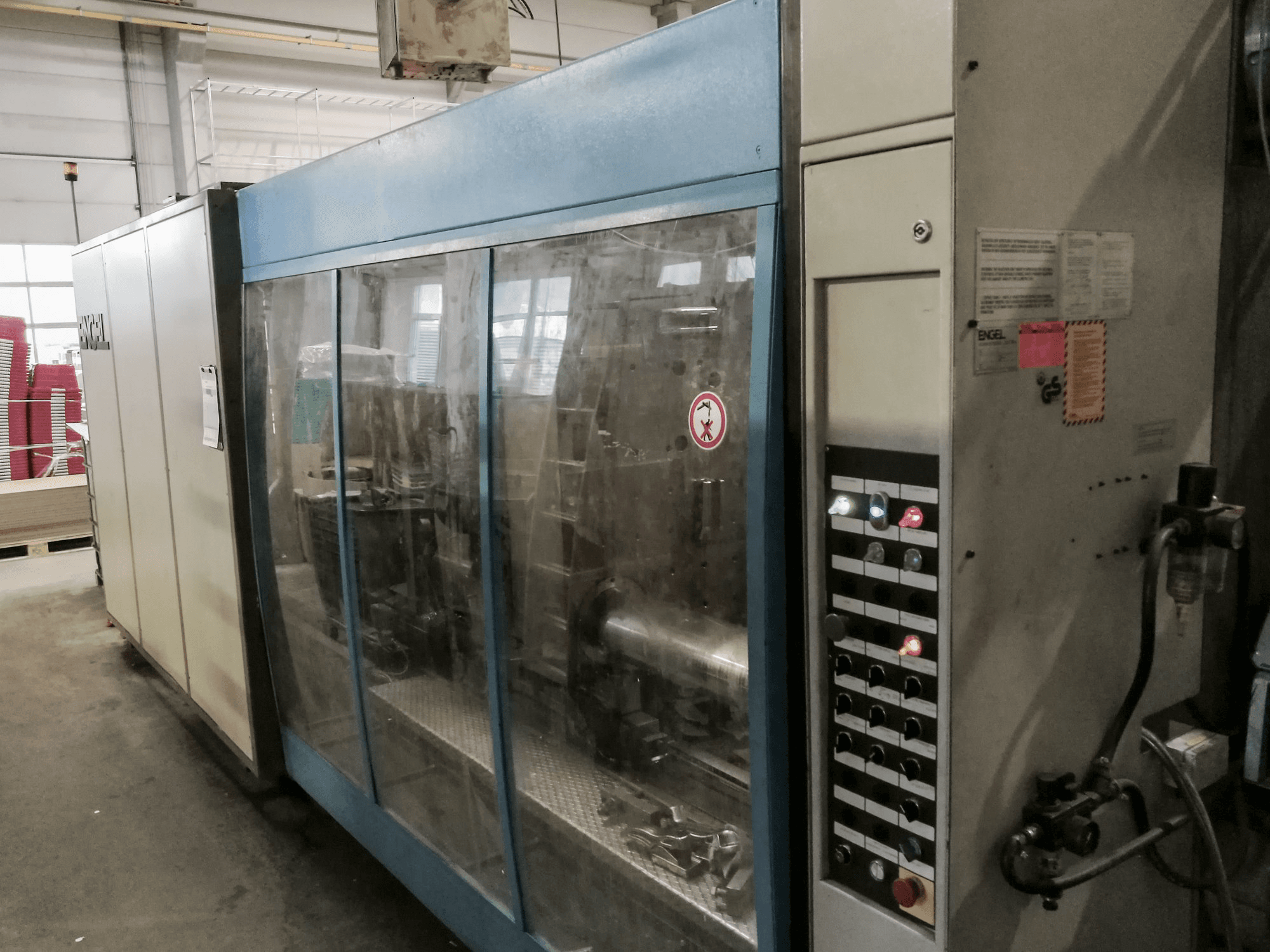

This ENGEL ES 7000/1200 B Injection Moulding Machine was manufactured in 1993 in Austria and has a working record of 137287 production hours. This machine, operated through a ENGEL C90 Control unit, has two hydraulic locking core pull cylinders increasing overall cost savings and reducing cycle time. During the past, this machine has mostly handled plastics producing household good for the end-consumer market.

Overview

brand: Engel
year: 1993
MODEL: ES 7000/1200 B
production hours: 137287
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ENGEL

Technical Information - Engel ES 7000/1200 B

General Data

Measurements width: 13000 mm
Measurements depth: 3900 mm
Measurements height: 2600 mm
Machine weight: 87000 kg

Control Unit

Model: C90
Remote control: Yes
Brand: ENGEL

Injection Unit

Screw diameter: 105 mm
Shot weight: 580 g/sec
Stroke volume: 4156 cm3 CM³
Injection pressure: 1750 bar
Plasticizing rate max.: 117 g/s PS
Screw speed: 5-130 1/min
Heating capacity: 68 kW
Adjustable heating zones: 6
Nozzle pressure: 150 kN

Clamping unit

Clamping force: 12000 kN
Opening stroke: 13200 mm
Max open daylight: 1100 mm
Distance between bars: 1400 x 1150 mm (h x v)
Mould height min: 400 mm
Mould height max: 1200 mm
Size of mold platens: 1990 - 1740 mm
Ejector stroke: 300 mm
Ejector force for / back: 215 kN

Media

Power consumption: 110 kVA
Oil tank: 1800 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
