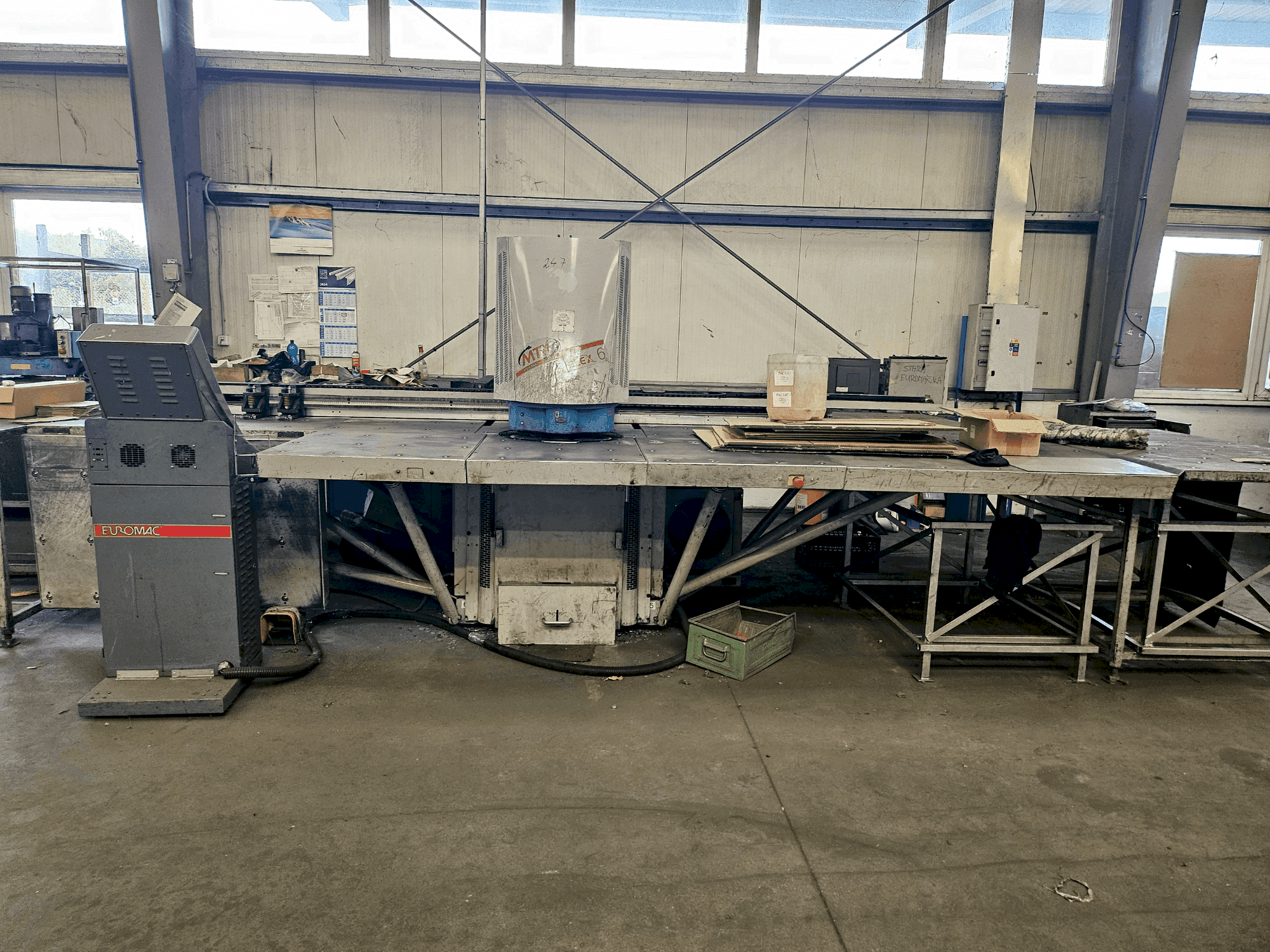

Front view of Euromac MTX Flex 6 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Euromac MTX Flex 6

Photo Gallery

Euromac - MTX Flex 6AT-BEN-EUR-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Euromac MTX Flex 6 For Sale | gindumac.com

Show in original language

This Euromac MTX Flex 6 turret punch press was manufactured in 2011. It features a maximum punching force of 300 kN and can handle sheet weights up to 150 kg. The machine includes a servomotor-controlled hydraulic system and supports a maximum punching diameter of 85 mm at Autoindex stations. Ideal for high-speed operations, it offers up to 375 strokes per minute at 20 mm pitch. For more information about this turret punch press, please reach out to us.

Overview

brand: Euromac
year: 2011
MODEL: MTX Flex 6
application type: Punching
Location: Austria
machine type: Turret Punch Press

Technical Information - Euromac MTX Flex 6

General Data

Measurements width: 3630 mm
Measurements depth: 4850 mm
Machine weight: 8500 kg

Main drive

Punching force: 300 kN
Stroke adjustment: Yes
Number of axis: 2

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1250 mm

Additional Equipment

- Tank capacity: 135 liters

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Stroke adjustment: 0. 1 to 31 mm
- - Punching accuracy, shape repeatability accuracy, autoindex features
- - Automatic repositioning: up to 10000 mm
- - Hydraulic system: controlled by a servomotor (standard)
- - Clamp aperture: 11 mm
- - Operating system: windows® 7 - 64bit
- - Usb ports: 6
- - Installed power: 8. 5 kw
- - Average power draw: 4. 5 kw/h
- - Workpiece:maximum punching diameter: 85 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
