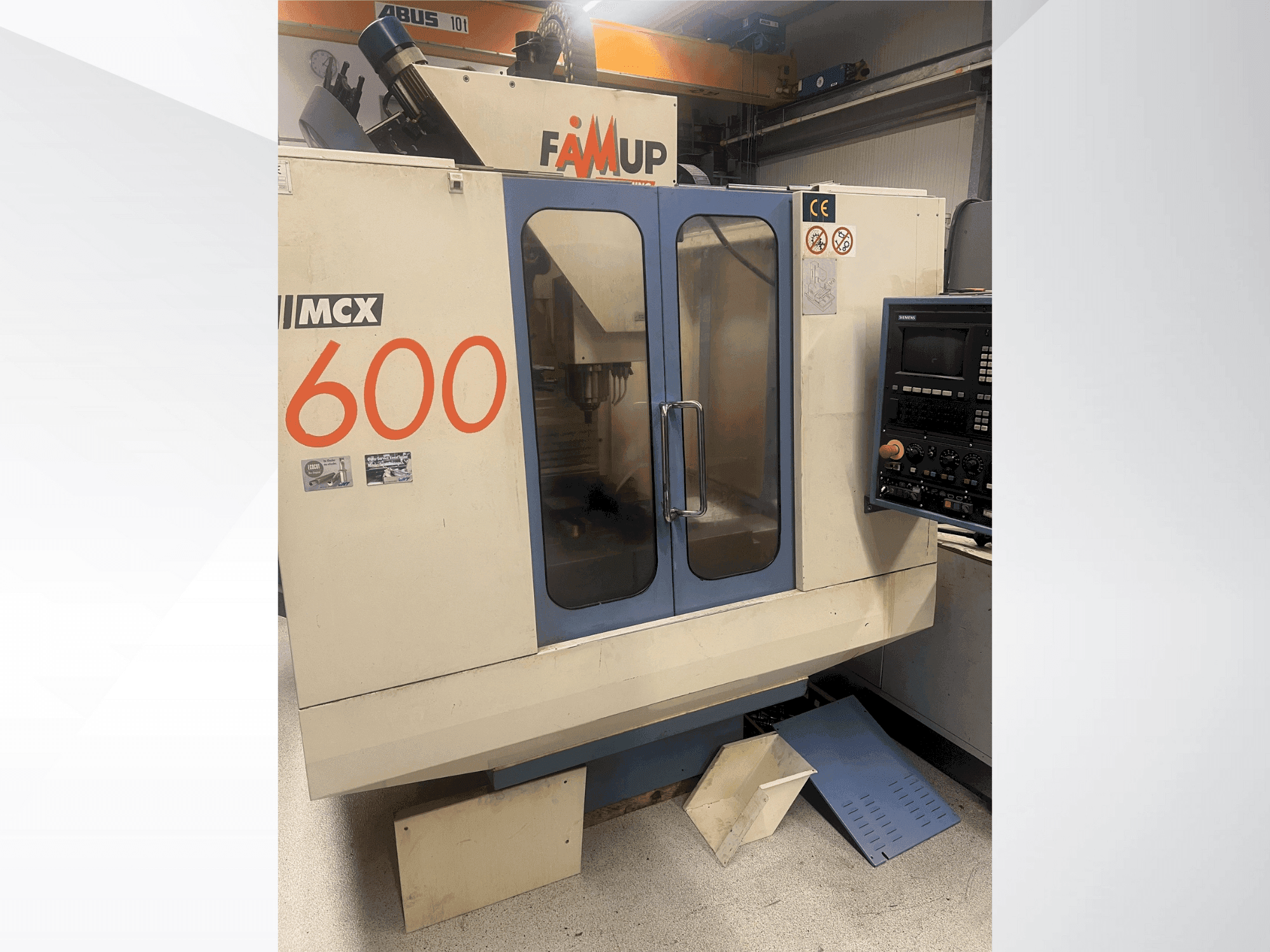

Front view of FAMUP MCX 600 machine
Front view of FAMUP MCX 600 machine

FAMUP - MCX 600DE-MIL-FAM-1997-00002

£ 9,600
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis FAMUP MCX 600 was manufactured in 1997. It features a robust 3600 kg base machine weight, with a total weight including all components at 4630 kg. The machine offers a spindle speed of up to 6000 rpm and accommodates a maximum table load of 400 kg. X, Y, and Z axes travel are 600 mm, 400 mm, and 400 mm respectively. Consider the opportunity to buy this FAMUP MCX 600 vertical machining centre. Contact us for more information.

Overview

  • brand: FAMUP
  • year: 1997
  • MODEL: MCX 600
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: SIEMENS

Technical Information - FAMUP MCX 600

General Data

  • Machine weight: 3600 KG

Control Unit

  • Brand: SIEMENS
  • Model: Sinumerik

Main drive

  • Spindle speed range: 6000 1/MIN

Movement

  • X-AXIS Movement: 600 MM
  • Y-AXIS Movement: 400 MM
  • Z-AXIS Movement: 400 MM

Table

  • Outer length: 800 mm
  • Outer width: 375 mm
  • Number of tslots: 3
  • Min distance between vertical spindle and table: 140 mm
  • Max distance between vertical spindle and table: 540 mm
  • Table load: 400 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - T-slot spacing: 125 mm
      • - T-slot width: 14 mm
      • - Table-to-floor distance: 850 mm
      • - Cone standard din 69871: iso 40
      • - Noise level (work area): 71. 5 db(a)

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
