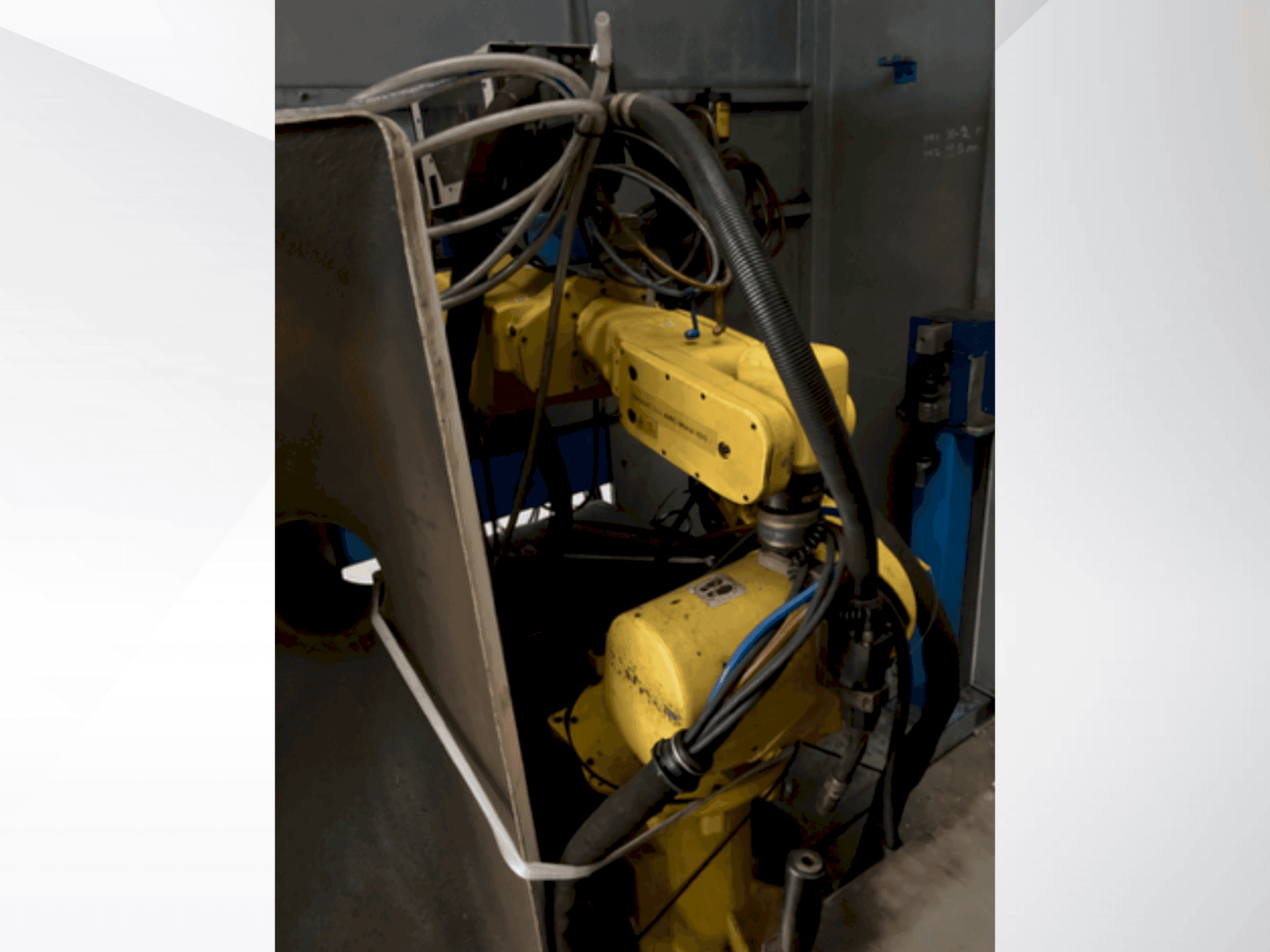

Front view of FANUC ARC Mate 100i machine
Front view of FANUC ARC Mate 100i machine

FANUC - ARC Mate 100iNL-ROB-FAN-2000-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This FANUC ARC Mate 100i Robot machine was manufactured in 2000. It has 6 axes and a payload capacity of 6 kg (13 lbs). It offers a reach of 1368 mm (54 in) with a repeatability of ±0.1 mm (.0039 in). It operates at the following motion speeds: J1-J3 at 120 °/s (2.09 rad/s), J4-J5 at 360 °/s (6.28 rad/s), and J6 at 450 °/s (7.85 rad/s). Its motion range includes J1 at -330°, J2 at -210°, J3 at -299°, J4 at -380°, J5 at -280°, and J6 at -640°. Contact us anytime for further information.

Overview

  • brand: FANUC
  • year: 2000
  • MODEL: ARC Mate 100i
  • application type: Robotics
  • Location: Netherlands
  • machine type: Robot Arm
  • availability: Sold

Technical Information - FANUC ARC Mate 100i

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - 6 axes
      • - Payload: 6 kg (13 lbs)
      • - Reach: 1368 mm (54 in)
      • - Repeatability: ±0. 1mm (. 0039 in)
      • - Robot mass: 290 kg (639 lbs)
      • - Structure: articulated
      • - Robot motion speed: j2 120 °/s (2. 09 rad/s), j2 120 °/s (2. 09 rad/s), j3 120 °/s (2. 09 rad/s), j4 360 °/s (6. 28 rad/s), j5 360 °/s (6. 28 rad/s), j6 450 °/s (7. 85 rad/s)
      • - Robot motion range: j1 - 330°, j2 - 210°, j3 - 299°, j4 - 380°, j5 - 280°, j6 - 640°

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
