FANUC - Robodrill Alpha-T21iDLFI-MIL-FAN-2003-00002
Do you have further questions? Contact us.

Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com

- GINDUMAC
- Products
- Machine Tools
- FANUC Robodrill Alpha-T21iDL Vertical Machining

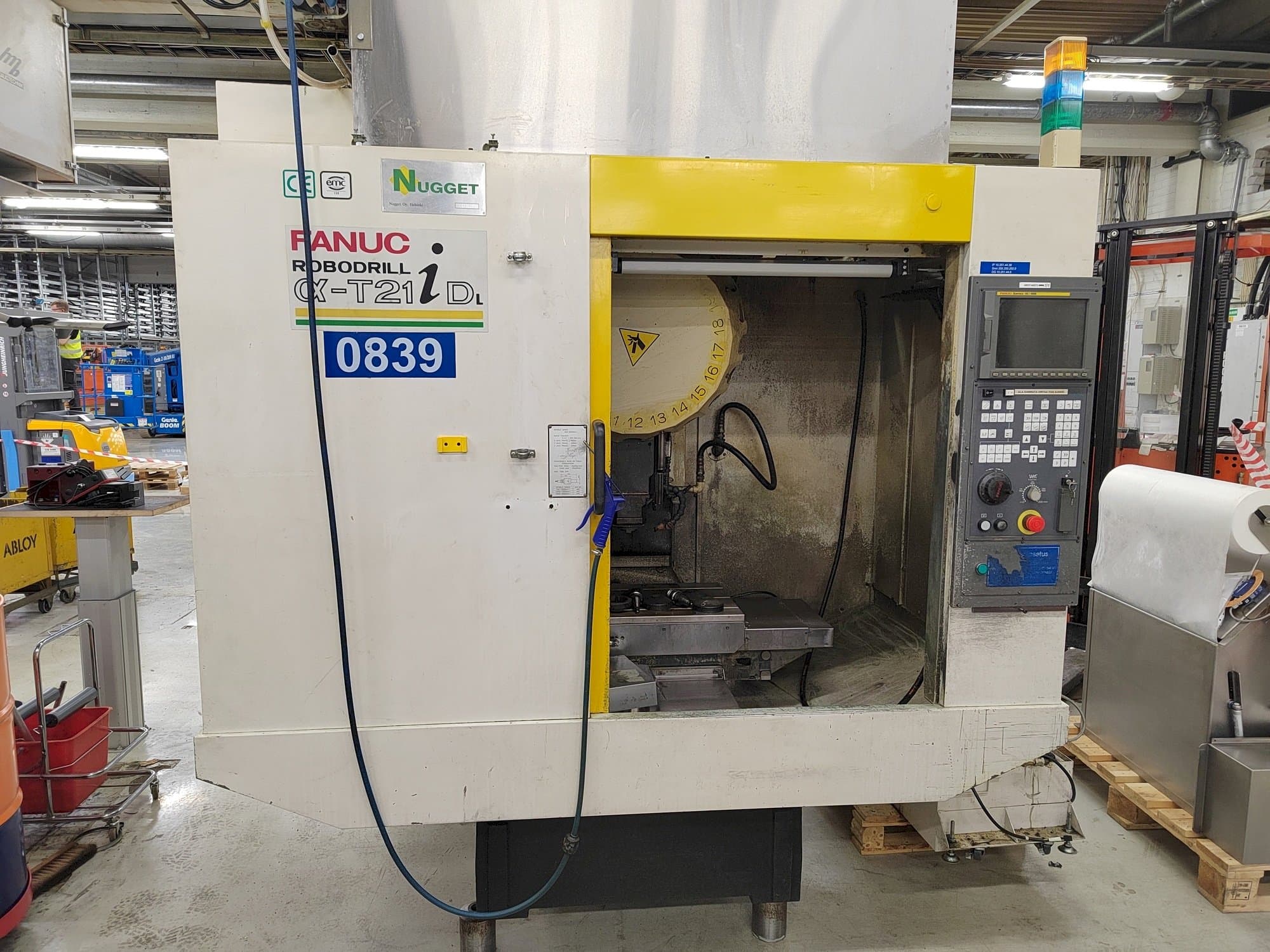

This FANUC Robodrill Alpha-T21iDL Vertical Machining center was manufactured in 2003 in Japan. It is equipped with Fanuc Series 16i-MB control unit and has 3 axis. The machine has a spindle speed of 20000 rpm and has lubricating tank with pump as additional equipment.
Overview
- brand: FANUC
- year: 2003
- MODEL: Robodrill Alpha-T21iDL
- application type: Milling
- Location: Finland
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - FANUC Robodrill Alpha-T21iDL
General Data
- Measurements width: 2115 mm
- Measurements depth: 2040 mm
- Measurements height: 2600 mm
- Machine weight: 2200 kg
Control Unit
- Model: Series 16i-MB
- Brand: FANUC
Main drive
- Number of spindles: 1
- Spindle speed range: 20000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 700 mm
- Y-AXIS Movement: 400 mm
- Z-AXIS Movement: 330 mm
Workpiece
- Workpiece weight: 300 kg
Table
- Outer length: 500 mm
- Outer width: 500 mm
Tools
- Slots in storage: 21
- Type of tool holder: BT 30
Media
- Main electronic connection: 400 V
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Equipment
- - Lubricating tank with pump
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
