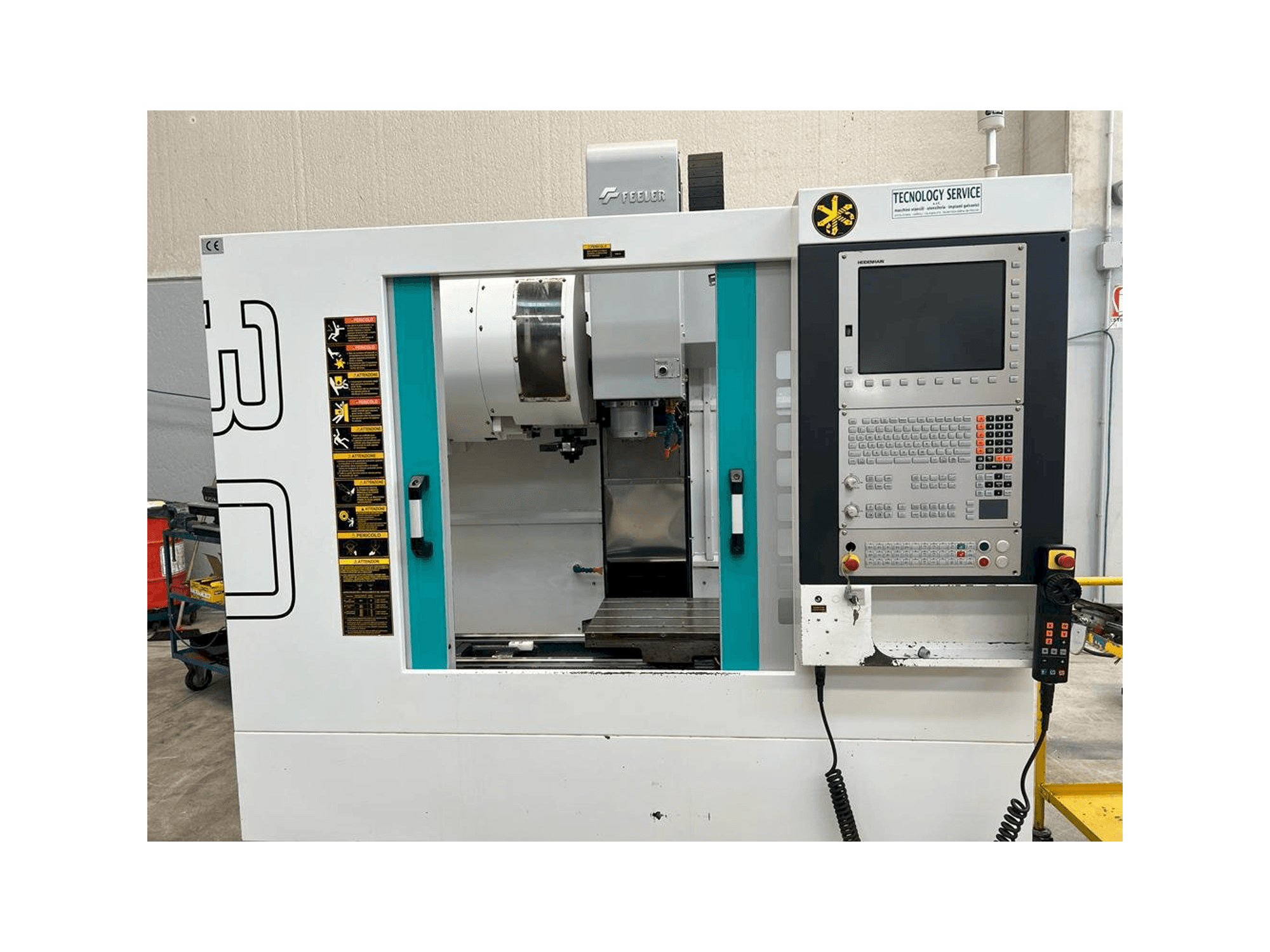

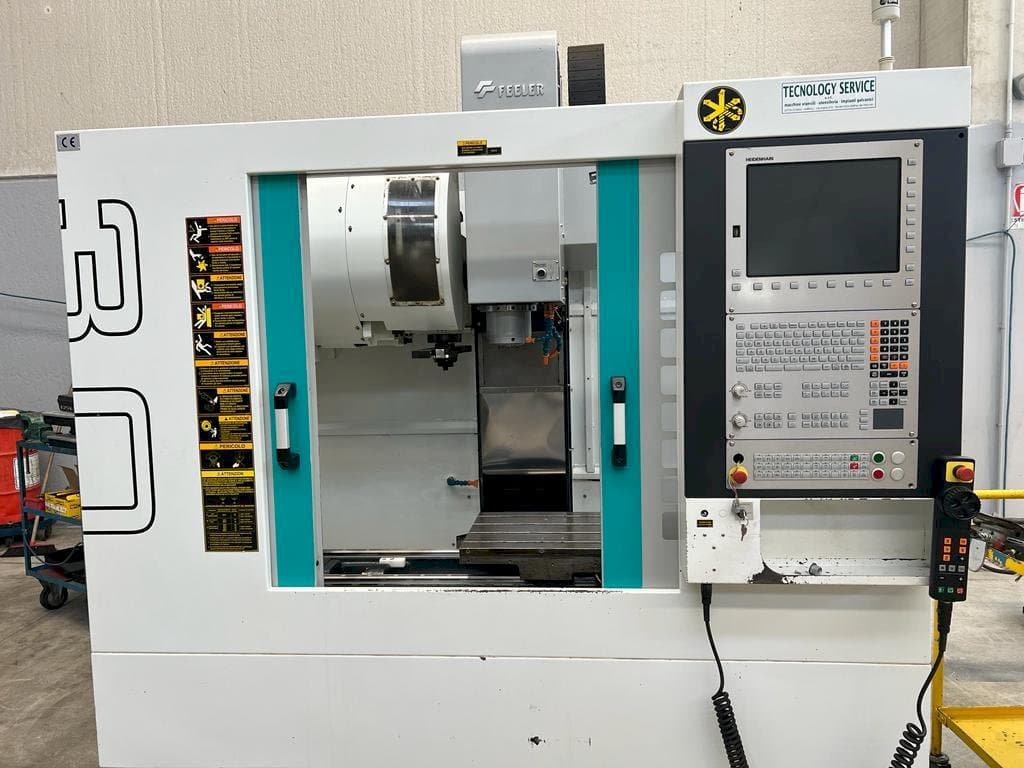

FEELER VMP-30A Vertical Machining center

Show in original language

This FEELER VMP-30A Vertical Machining center was manufactured in the year 2015 in Taiwan. It is equipped with a HEIDENHAIN control unit. The machine has a spindle speed of 10000 rpm.

Overview

brand: Feeler
year: 2015
MODEL: VMP-30A
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Feeler VMP-30A

General Data

Machine weight: 3300 kg

Control Unit

Brand: HEIDENHAIN

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 7.5/11 Kw
Tool taper: BT 40

Movement

X-AXIS Movement: 760 mm
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 420 mm
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 510 mm
Z-AXIS Rapid traverse: 36 m/min

Table

Outer length: 890 mm
Outer width: 420 mm
Table load: 300 kg

Tools

Slots in storage: 20

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table-spindle distance 80-590 mm
Qualitative Machine Benefits:
- - Condition excellent
- - Condition used

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
