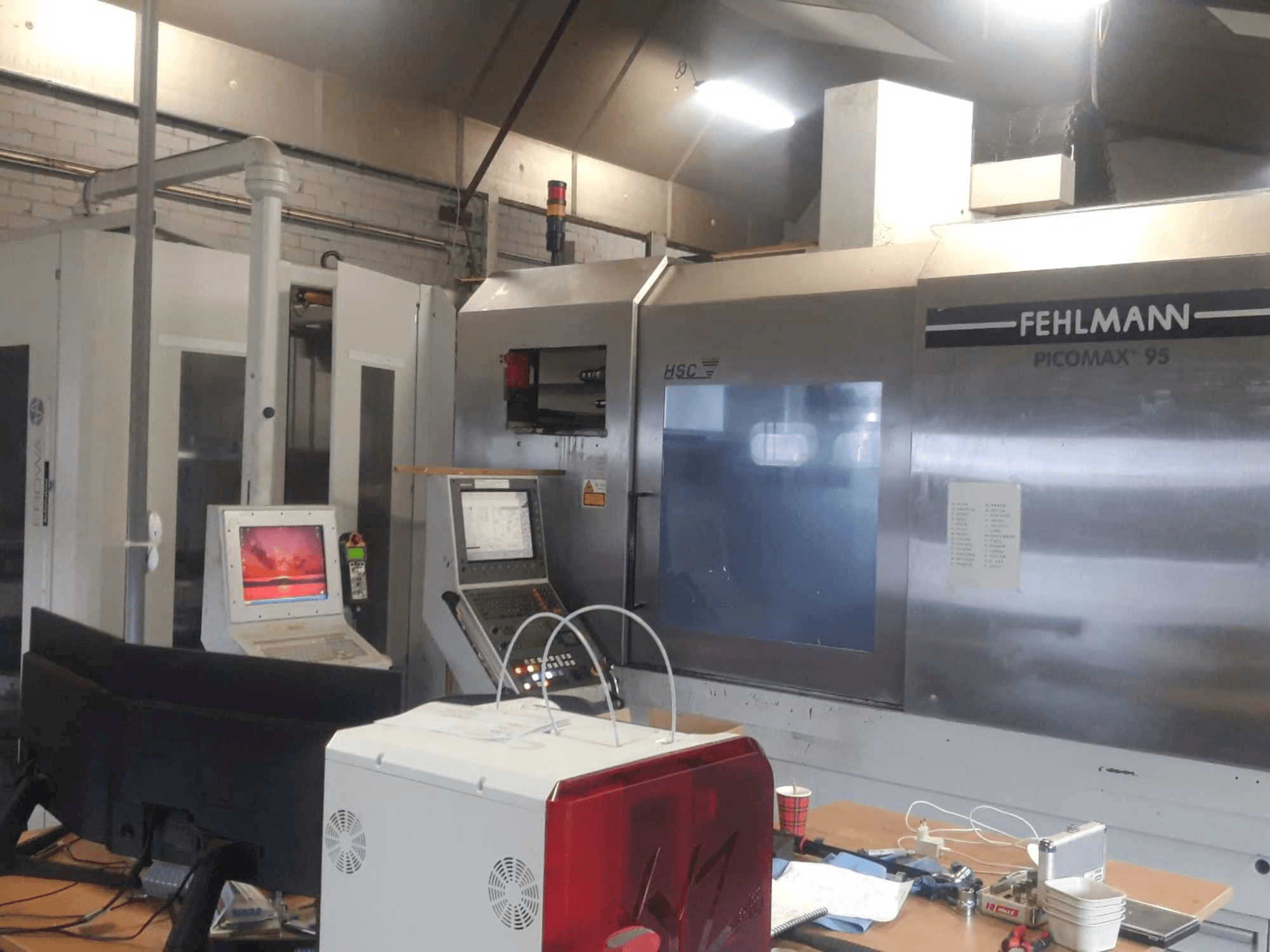

Front view of FEHLMANN PICOMAX 95 + EROWA machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FEHLMANN PICOMAX 95 + EROWA

Photo Gallery

FEHLMANN - PICOMAX 95 + EROWANL-MIL-FEH-2006-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
FEHLMANN PICOMAX 95 + EROWA Vertical Machining center

Show in original language

This FEHLMANN PICOMAX 95 + EROWA Vertical Machining Center was manufactured in the year 2006 in Switzerland. It is equipped with a HEIDENHAIN iTNC control unit and has 5 axis. The machine has a spindle speed of 50-14000 rpm.

Overview

brand: FEHLMANN
year: 2006
MODEL: PICOMAX 95 + EROWA
application type: Milling
Location: Netherlands
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - FEHLMANN PICOMAX 95 + EROWA

General Data

Measurements width: 3000 mm
Measurements depth: 2200 mm
Measurements height: 3100 mm
Machine weight: 9100 kg

Control Unit

Model: iTNC
Brand: HEIDENHAIN

Main drive

Spindle speed range: 50-14000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 610 mm
B-AXIS Movement: -10°- 120° MM

Table

Outer length: 1600 mm
Outer width: 550 mm
TSlots size: 46

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 3d measuring probe: reinnishaw omp
- - Zero-pump clamping system for pallets diameter 210 mm, blum tool

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
