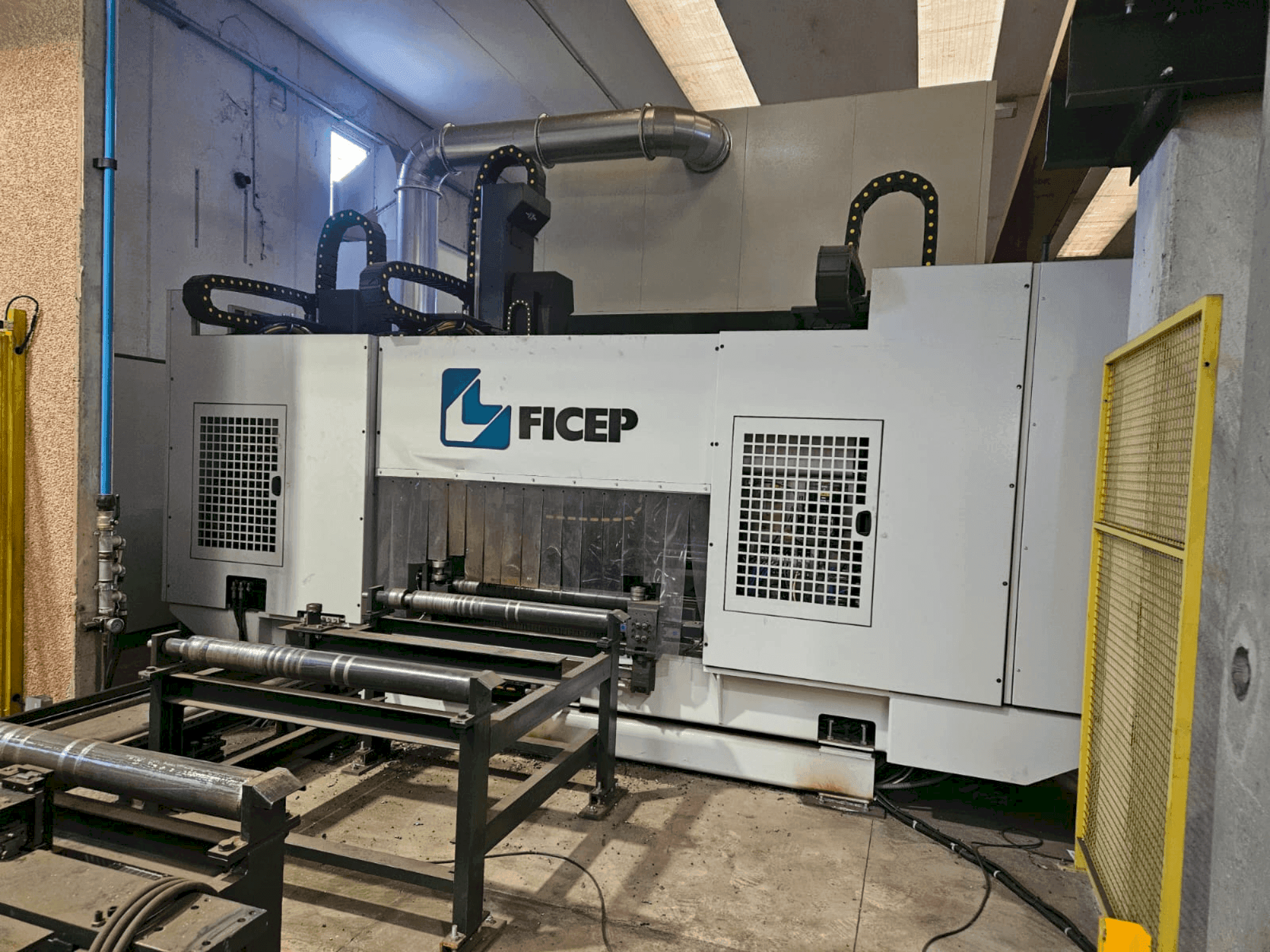

Front view of FICEP VALIANT 1004 VLFRC machine
Front view of FICEP VALIANT 1004 VLFRC machine

FICEP - VALIANT 1004 VLFRCIT-OTH-FIC-2022-00002

£ 452,550
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This FICEP VALIANT 1004 VLFRC drilling machine was manufactured in 2022. It features a CNC Automatic Line for Drilling and Thermal Cutting with a Flexible Robot "FRC". Capable of handling profiles from 80 mm to 1015 mm in height and up to 450 mm in width, it supports a maximum length of 15,000 mm. Ideal for processing I-beams, U-channels, angle irons, flat bars, and rectangular tubes. Contact us for more information about this machine.

Overview

  • brand: FICEP
  • year: 2022
  • MODEL: VALIANT 1004 VLFRC
  • application type: Other Machine Tools
  • Location: Italy
  • machine type: Drilling Machine (Metal)

Technical Information - FICEP VALIANT 1004 VLFRC

Main drive

  • Spindle speed range: 180-5000 1/MIN
  • Spindle motor power: 31 KW
  • Tool taper: HSK-A80

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Transferable length: 2500 - 15000 mm
      • - Profile height: 80 - 1015 mm
      • - Profile width: 10 - 450 mm
      • - Processable materials include i-beams, u-channels, angle irons, flat bars, square tubes, and rectangular tubes
      • - Max. Drilling diameter: 40 mm
      • - Max. Drilling thickness: 100 mm
      • - Drilling feed speed: 40 – 1000 mm/min
      • - Rapid approach/return speed: 30 m/min
      • - Max. Profile linear weight: 450 kg/m
      • - Max. Bar longitudinal feed speed: 50 m/min
    • Qualitative Machine Benefits:
      • - Horizontal head positioning speed: 30 m/min
      • - Vertical head positioning speed: 30 m/min
      • - Working table height: 865 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
