Finn-Power E5

Photo Gallery

Finn-Power - E5BY-PUN-FIN-2007-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

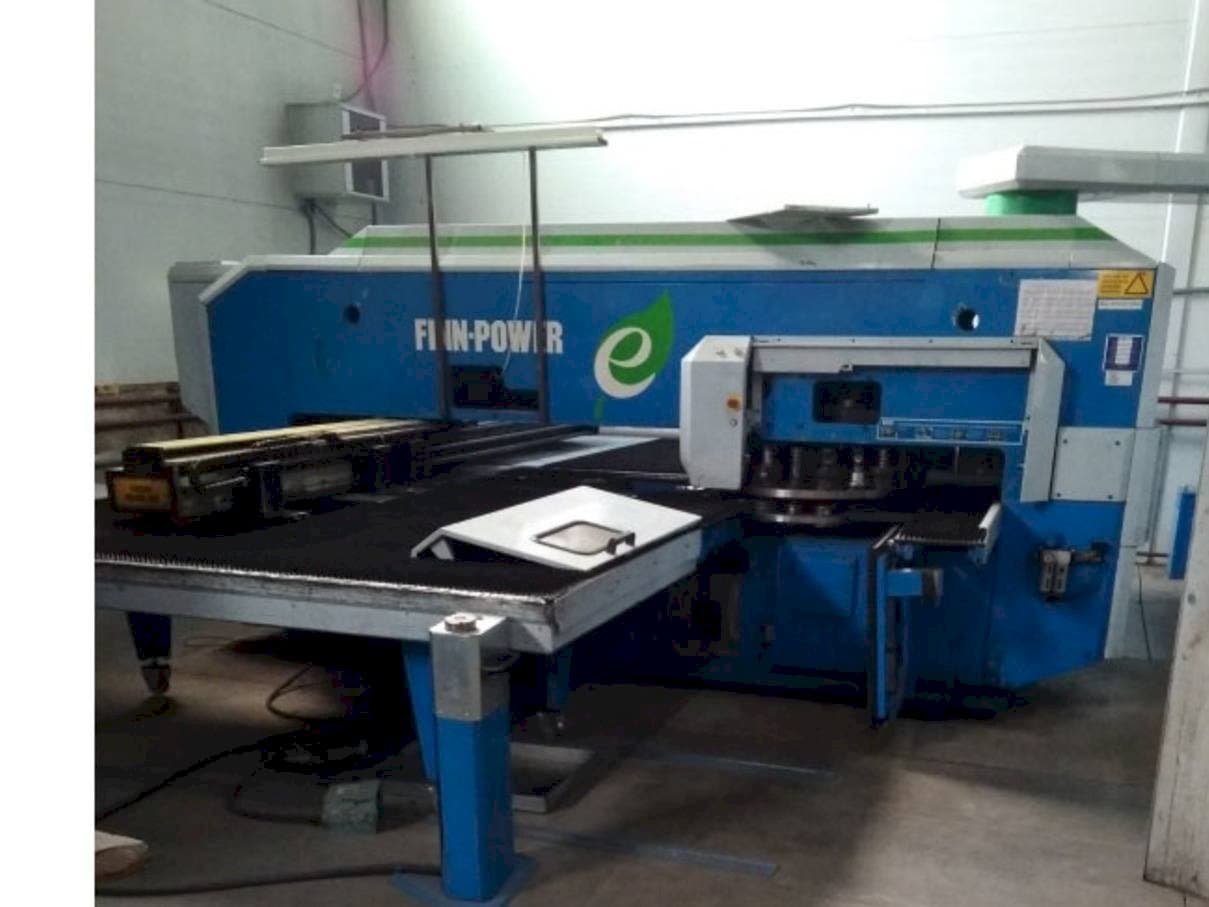

This Finn-Power E5 Punching Machine was manufactured in the year 2007. It is operated through a SIEMENS SINUMERIK 840 D control unit. This punching machine can work with a punching force 200 kN and a punching diameter 89 mm.

Overview

brand: Finn-Power
year: 2007
MODEL: E5
application type: Punching
Location: Belarus
machine type: CNC Punch Press
control unit brand: SIEMENS

Technical Information - Finn-Power E5

Control Unit

Model: Sinumerik 840D
Interface: Windows
Brand: SIEMENS

Main drive

Punching force: 200 kN
Max Sheet length: (X/Y) - 2530 / 1270 mm

Movement

X-AXIS Movement: 2584 mm
Y-AXIS Movement: 1317 mm

Table

Max punching diameter: 89 mm

Tools

Number of index: 2 pcs. (max. 10 pcs.)
Number of stations: 20 pcs
Number of clamps: 3 pcs

Media

Power consumption: Average (150 beats / min) - 4...5 kW
Air pressure: min. - 6 bar
Lubrication tank: 2000 cm3

Additional Information

Machine Benefits

Qualitative Machine Benefits

Punching — electric servo motor
Tool — thick turret
Sheet clamps: pneumatic
Axis speed (x-axis), max. - 80 m / min
Axis speed (y-axis), max. - 60 m / min
Travel speed, max. — 100 m/min
Cutting with scissors (1... 3 mm) - 480 min-1
25 mm between the holes — 310 min–1
250 mm between the holes — 140 min–1
Hole center deviation (x/y axis), max. - 0. 1 mm

Technical Machine Benefits

The depth of the stroke during molding — programmable in increments of 0. 001 mm
Forming stroke length-programmable in 0. 001 mm increments
Deviation of the distance between the centers of the holes (x/y axes), max. - ±0. 05 mm
The speed of the gun is 30 rad/min
The tool change time is 1-3 seconds
Tool rotation speed, max. — 58 rad/min.
Top forming force-200 kn
The height of the die stroke during forming is programmable with increments of 0. 001 mm (max. 12 mm)
Sheet size, max. (x/y) - 2530/1270 mm
Sheet weight, max. - 200 kg

Machine History

Material thickness

Min. 0. 5 mm - max. 8 mm
