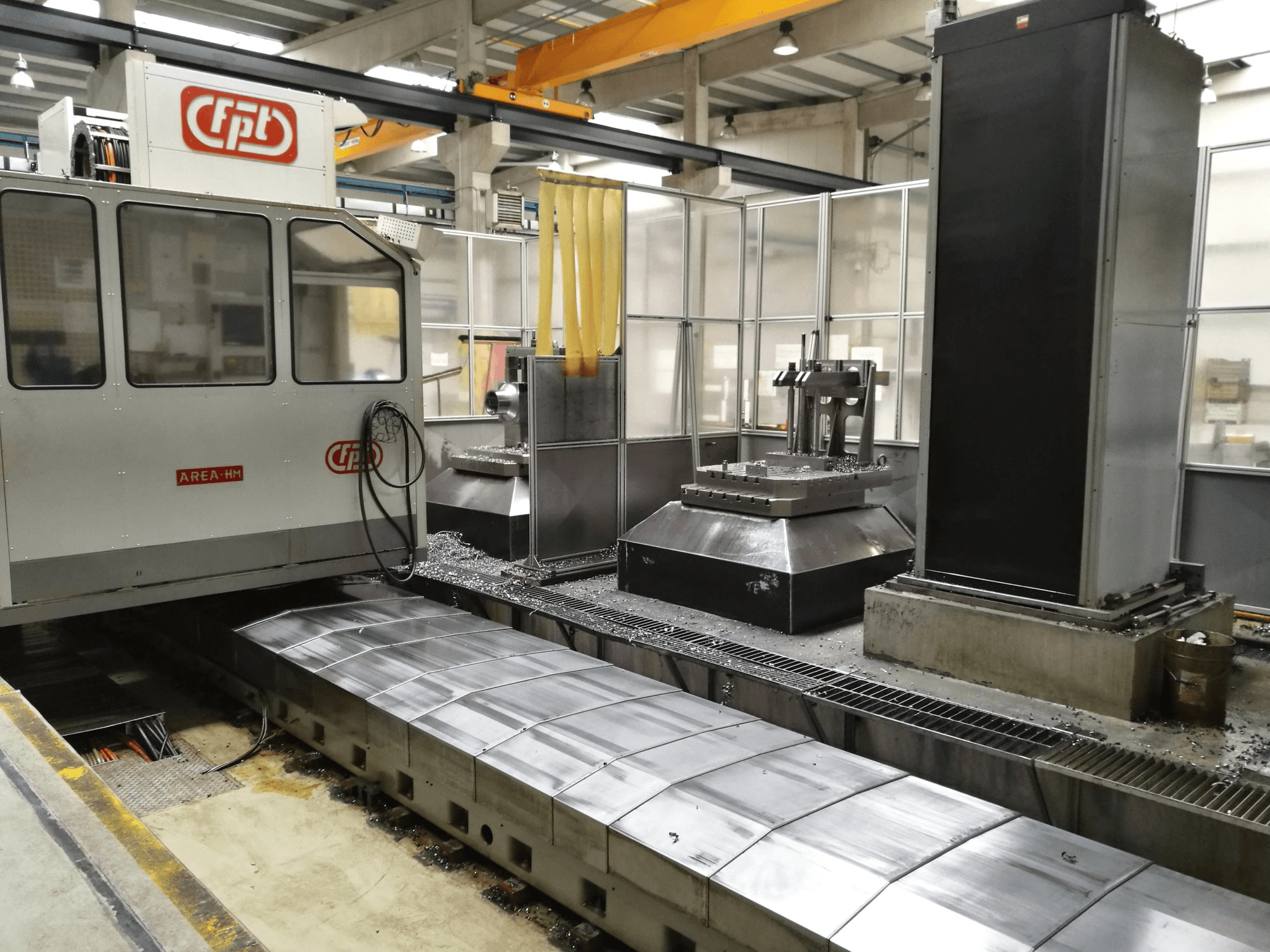

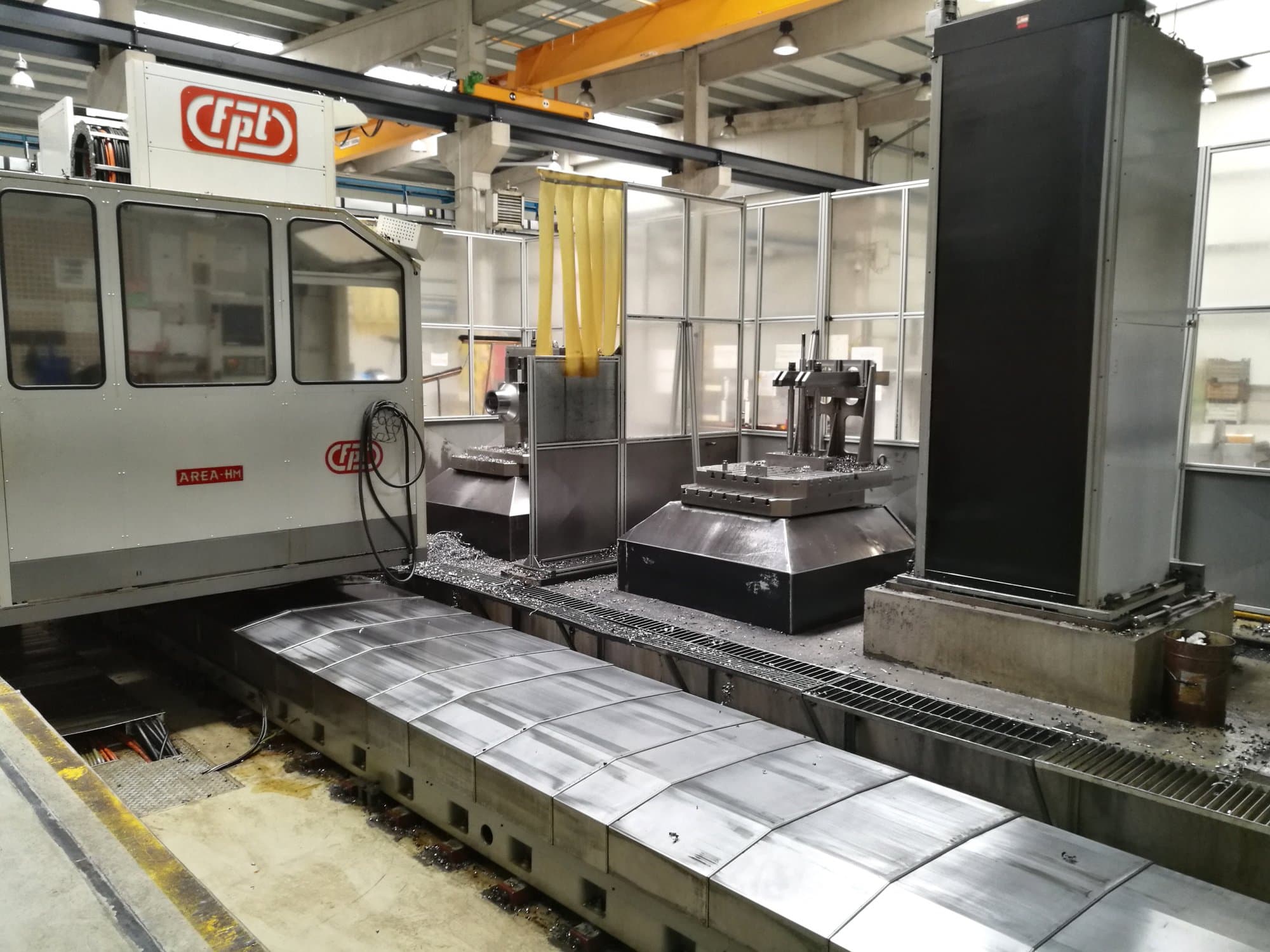

This FPT AREA M Machining Center was built 2009 in Italy and was in use for around 10000 production hours since then. With a SINUMERIK 840D Control unit by SIEMENS, this model stands out due to its hydrostatic guideways on the X, Y and Z axis, its pallet changing system and automatic milling head exchange. During the past, this machine has worked mainly with steel and comes with various additional equipment.
Overview
- brand: FPT
- year: 2009
- MODEL: AREA M
- production hours: 10000
- application type: Milling
- Location: Czech Republic
- machine type: Gantry Milling Machine
- control unit brand: SIEMENS
Technical Information - FPT AREA M
Control Unit
- Model: SINUMERIK 840D
- Brand: SIEMENS
Main drive
- Number of spindles: 1
- Spindle speed range: 3000 1/min
- Spindle motor power: 37 kW
Movement
- X-AXIS Movement: 6000 mm
- Y-AXIS Movement: 1250 mm
- Z-AXIS Movement: 2000 mm
Workpiece
- Workpiece weight: 7000 kg
Table
- Outer length: 1000 mm
- Outer width: 1000 mm
Turret
- Number of tool slots: 40
Tools
- Max weight: 20 kg
- Max tool diameter: 230 / 125 mm
- Max tool length: 400 mm
Media
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Equipment
- - Universal bi-rotative head
- - UT5-630S boring and facing head
- - Angle head for DN500 valve
- - Tools
- - Tool holder
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
