+GF+ - Agie Charmilles Form E600HU-EDM-GFX-2018-00001

Name: +GF+ Agie Charmilles Form E600
Brand: +GF+
SKU: HU-EDM-GFX-2018-00001
Price: 62653 GBP
Availability: InStock

£ 62,653

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
GF Agie Charmilles Form E600 Erosion machine

Show in original language

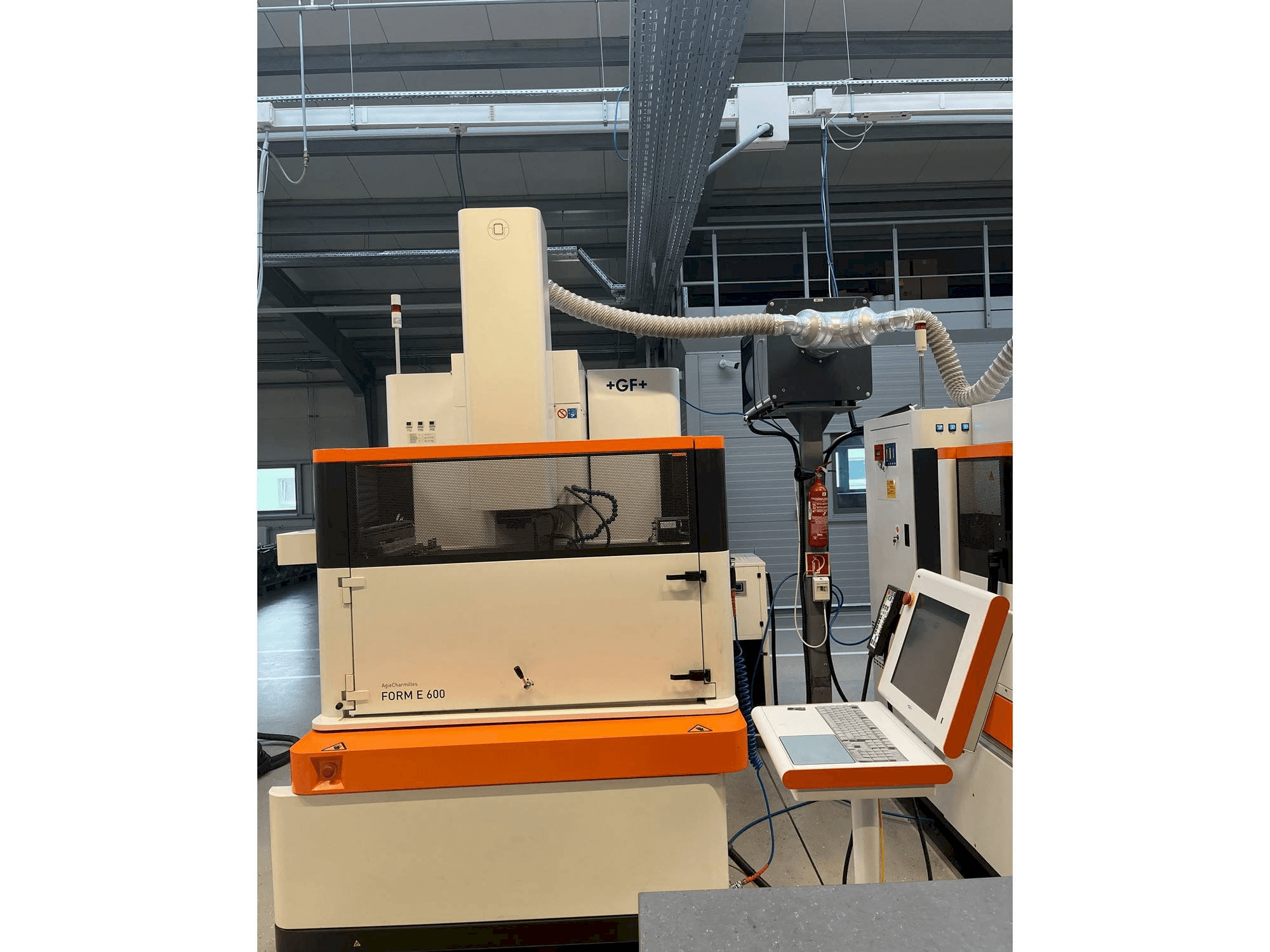

This GF Agie Charmilles Form E600 Erosion machine was manufactured in the year 2018 in China. It is equipped with a GF AC FORM HMI control unit.

Overview

brand: +GF+
year: 2018
MODEL: Agie Charmilles Form E600
production hours: 2000
application type: EDM
Location: Hungary
machine type: Die-Sinking EDM Machine

Technical Information - +GF+ Agie Charmilles Form E600

Dimensions

Machine Depth: 1600 mm
Machine Height: 2700 mm
Machine Weight: 4150 kg
Table Length: 800 mm
Table Load: 1000 kg
Table Width: 600 mm

Additional Information

Additional equipment

Control system: AC FORM HMI with 17" touch screen
Linear tool changer capacity: 6 electrodes / Max electrode size: 75 mm diameter, 280 mm length / 4-position electrode changer
Best surface finish: Ra = 0.2 μm
Erowa ITS-50 automatic chuck
Glass scales on X/Y axes
Fire protection system
Optimal ambient temperature: 20°C / Relative humidity: < 80%

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
