HAAS - ST-30PL-TUR-HAA-2012-00002

Name: HAAS ST-30
Brand: HAAS
SKU: PL-TUR-HAA-2012-00002
Price: 33950 GBP
Availability: InStock

£ 33,950

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS ST-30 Horizontal Lathe For Sale | gindumac.com

Show in original language

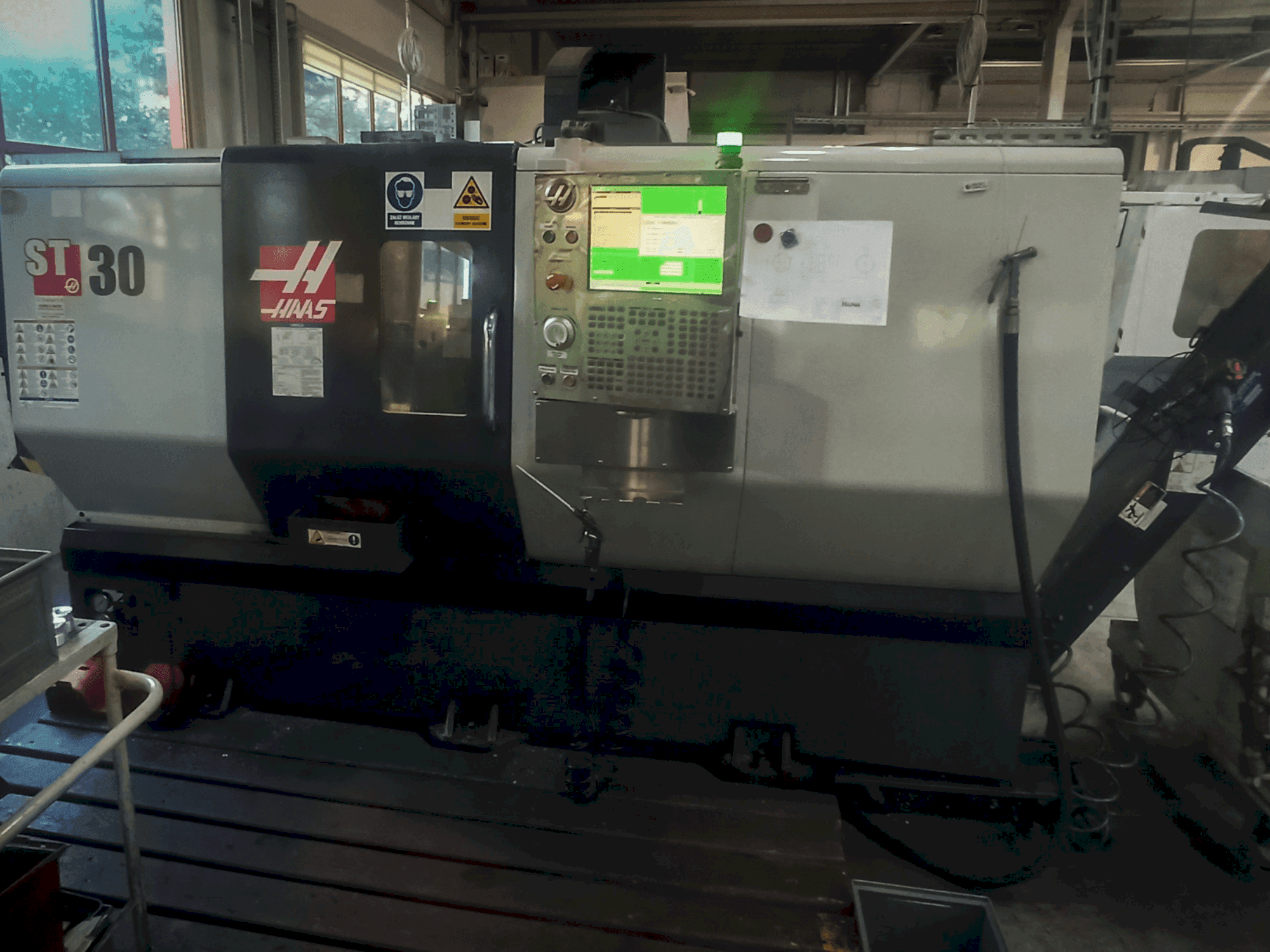

This HAAS ST-30 was manufactured in 2012. A robust horizontal turning machine, it features a spindle speed of 3400 rpm and a bar capacity of 100 mm. It includes a 12-position turret and a motor power of 22.4 kW. Dimensions are 4350 mm in length, 2290 mm in width, and 2490 mm in height, weighing 4944 kg. Consider the opportunity to buy this HAAS ST-30 horizontal turning machine. Contact us for more information about this machine.

Overview

brand: HAAS
year: 2012
MODEL: ST-30
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
control unit brand: HAAS

Technical Information - HAAS ST-30

General Data

Measurements width: 2290 mm
Measurements depth: 4350 mm
Measurements height: 2490 mm
Machine weight: 4944 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 3400 1/MIN
Spindle motor power: 224 kW
Spindle bore: 88.9 mm
Tool taper: A2-6
Number of axis: 2

Movement

X-AXIS Movement: 239 mm
X-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 826 mm
Z-AXIS Rapid traverse: 24 m/min

Turret

Number of turrets: 1

Tools

Number of stations: 12

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning length: 826 mm
- - Turning diameter: 381 mm
- - Max part swing: 533 mm
- - Center-to-center distance: 826 mm
- - Bar capacity: 100 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
