➤ ST-40 Lathe by HAAS - Used

Show in original language

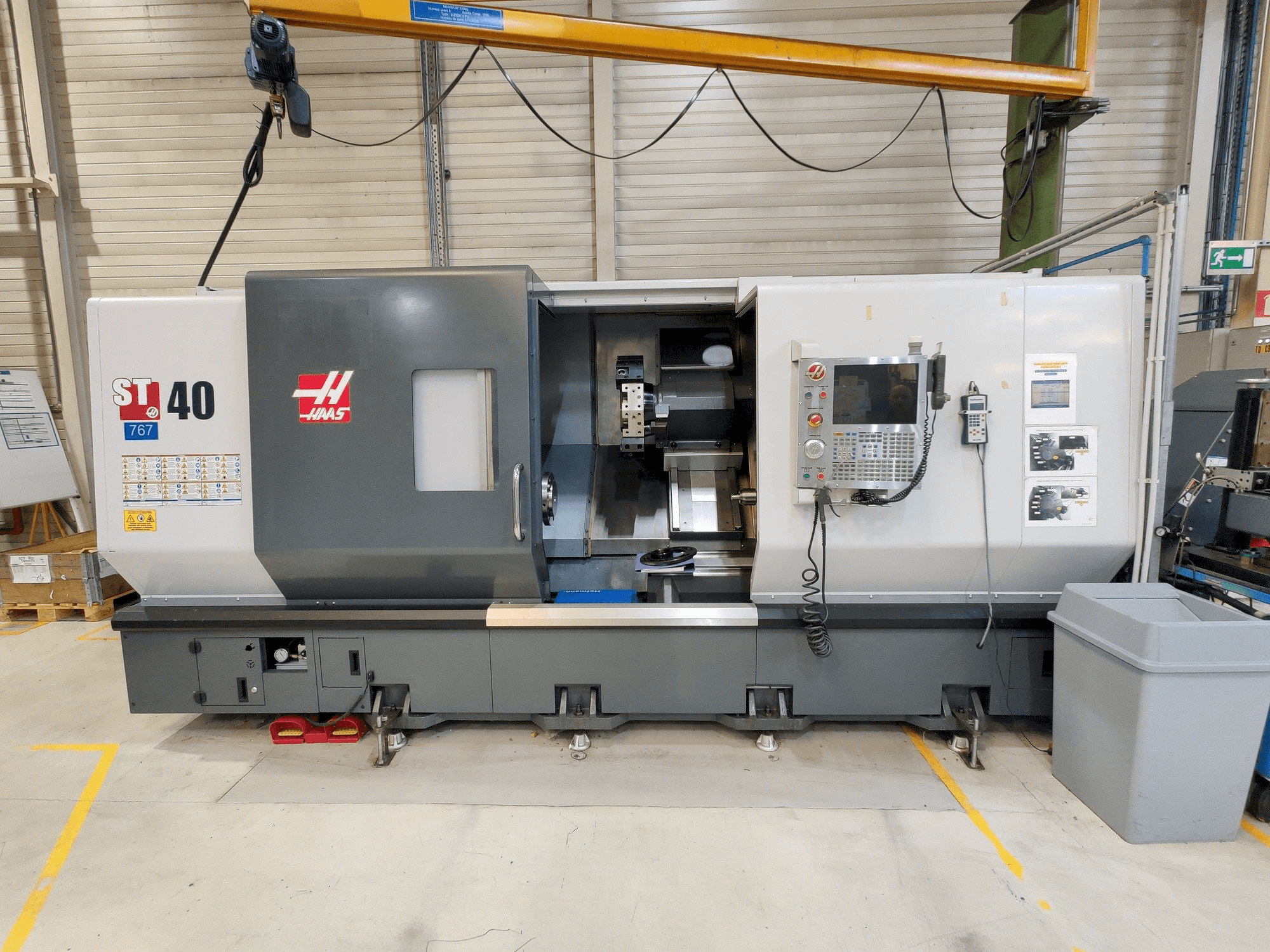

This HAAS ST-40 Lathe was made in 2012 in the United States and has only 100 hours. It is equipped with a Haas control unit. The machine has a spindle speed of 0 - 1400 rpm, diam. max. turning length of 648 mm.

Overview

brand: HAAS
year: 2012
MODEL: ST-40
production hours: 100
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HAAS

Technical Information - HAAS ST-40

General Data

Measurements width: 5817 mm
Measurements depth: 3531 mm
Measurements height: 2261 mm
Machine weight: 12247 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 0 - 1400 1/MIN
Spindle motor power: 29.8kW
Spindle bore: Ø 117.3 mm

Movement

X-AXIS Movement: 432 mm
X-AXIS Rapid traverse: 18 m/min
Z-AXIS Movement: 1118 mm
Z-AXIS Rapid traverse: 18 m/min

Media

Main electronic connection: 380 V, three-phase, 50-60 Hz
Power consumption: 28 kVA

Additional Equipment

- 12-station bolt-on turret
- Memory expansion up to 1 MB
- High torque 2-stage gearbox
- Rigid tapping
- 15” LCD color display and USB interface, Remote control
- Programmable hydraulic tailstock
- Locking access to memory by key switch on the panel
- Additional filtration system 25µ
- Hinged Belt Chip Conveyor
- Rapid detection of power outages

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tank capacity: 340 l
- - Compressed air: 113 l/min @ 6. 9 bar
- - Torque at the spindle: 1998 nm @ 150 rpm
- - Spindle nose: a2-11
- - Cylinder bore: Ø 178 mm
- - Passage diameter: 876 mm
- - Diam. Max. Turning length: 648 mm
- - Max length turning length: 1118 mm
- - Positioning accuracy: ± 0. 0051 mm
- - Repeatability accuracy: ± 0. 0025 mm
Qualitative Machine Benefits:
- - Coolant through the center high pressure 20 bar
- - Ethernet interface
- - Definable user macros
- - Spindle orientation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
