HAAS - UMC-750SK-MIL-HAA-2020-00001

Name: HAAS UMC-750
Brand: HAAS
SKU: SK-MIL-HAA-2020-00001
Price: 91400 GBP
Availability: InStock

£ 91,400

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS UMC-750 For Sale | gindumac.com

Show in original language

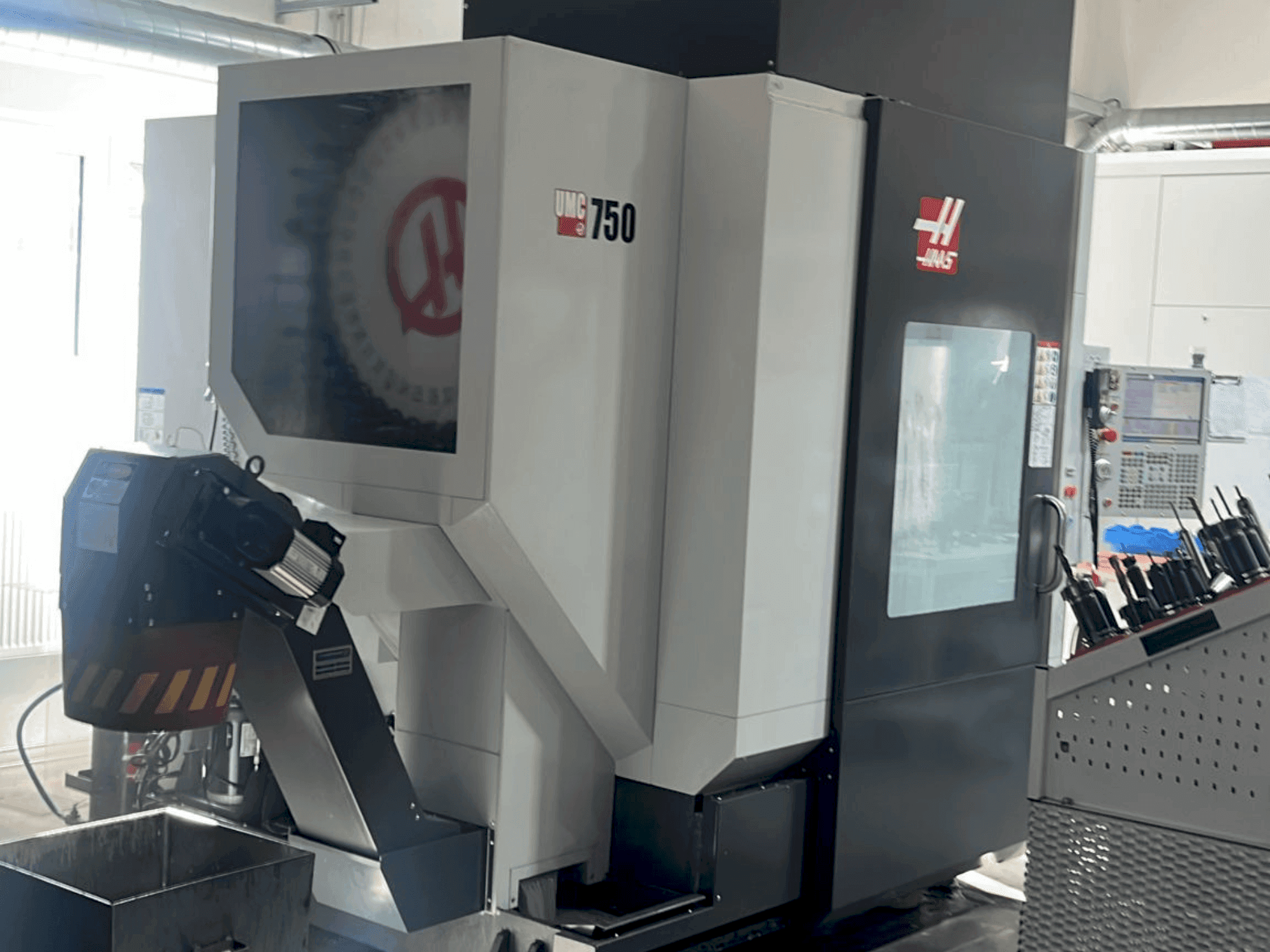

This 5-axis HAAS UMC-750 was manufactured in 2020, featuring a 762 mm X-axis, 508 mm Y-axis, and 508 mm Z-axis. It includes a spindle speed up to 12,000 rpm, ISO 40 taper, and a robust 40-position tool changer. The machine supports a maximum table load of 300 kg and offers advanced features like a wireless probing system, chip conveyor, and through-spindle coolant. Consider the opportunity to buy this HAAS UMC-750 universal machining centre. Contact us for more information.

Overview

brand: HAAS
year: 2020
MODEL: UMC-750
production hours: 5717
application type: Milling
Location: Slovakia
machine type: Universal Machining Centre
control unit brand: HAAS

Technical Information - HAAS UMC-750

General Data

Measurements width: 2387 mm
Measurements depth: 3978 mm
Measurements height: 2565 mm
Machine weight: 8200 kg

Control Unit

Brand: HAAS

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 762 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 508 mm

Table

Table load: 300 kg

Media

Chip conveyor: Yes

Additional Equipment

- Wireless Intuitive Probing System
- Through-Spindle Coolant

Additional Information

Machine Benefits

Technical Machine Benefits:
- - B-axis travel: 120° to -35°
- - C-axis travel: 360°
- - Spindle nose to table (max/min): 610/102 mm
- - Table diameter: 500 mm
- - Tool changer capacity: 40 positions

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
