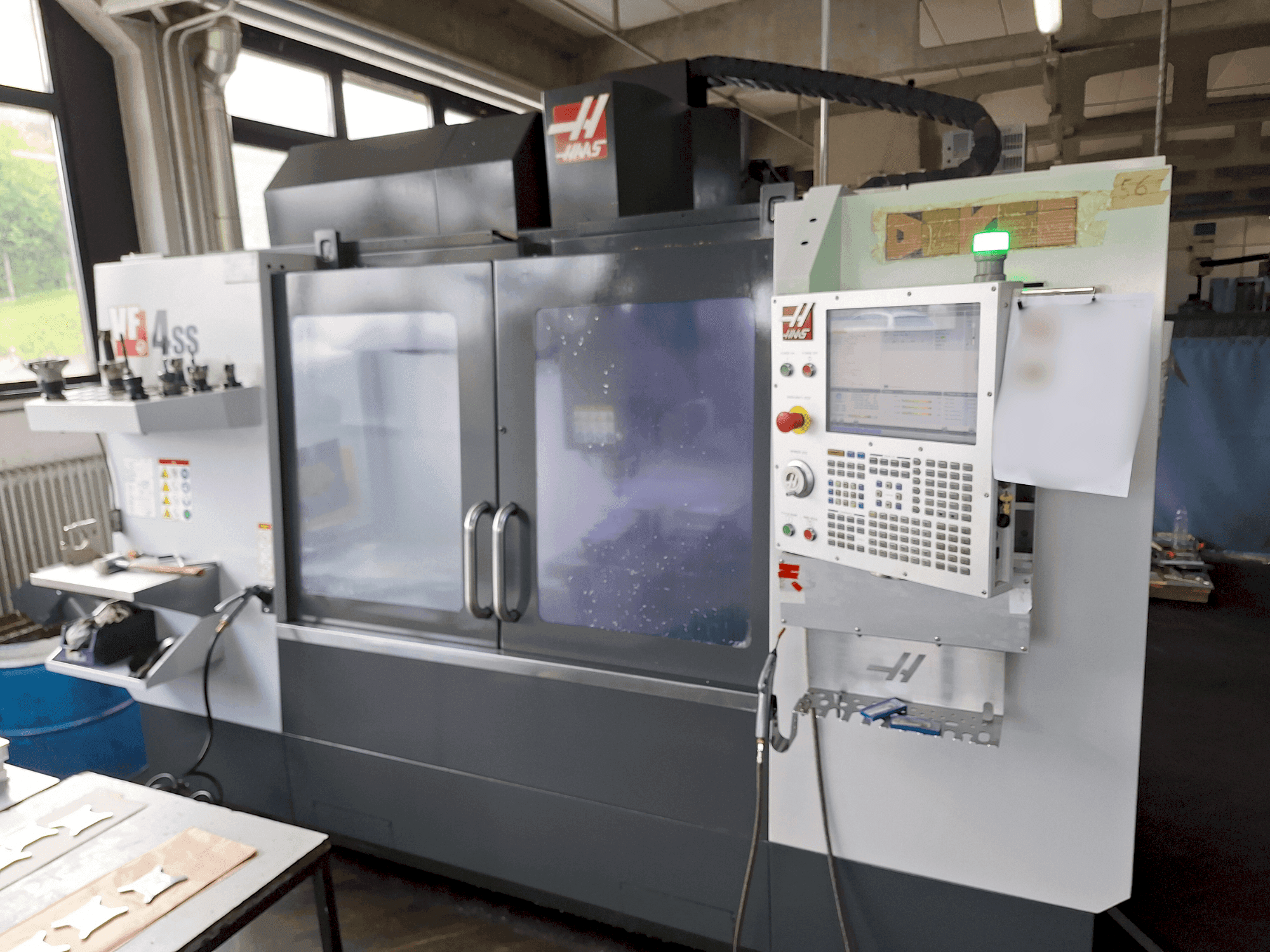

Front view of HAAS VF-4SS machine
Front view of HAAS VF-4SS machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

HAAS - VF-4SSSI-MIL-HAA-2019-00002

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis HAAS VF-4SS was manufactured in 2019, featuring a robust vertical machining center design. It boasts a spindle speed of 12000 rpm and a spindle power of 22.4 kW, ensuring high-efficiency machining. The machine includes a 30+1 tool changer and supports a maximum table load of 794 kg. Rapid movements reach up to 35.6 m/min on all axes, enhancing productivity. For more information about this Machining Center, please reach out to us.

Overview

  • brand: HAAS
  • year: 2019
  • MODEL: VF-4SS
  • production hours: 0
  • application type: Milling
  • Location: Slovenia
  • machine type: Vertical Machining Centre

Technical Information - HAAS VF-4SS

General Data

  • Machine weight: 6260 KG

Main drive

  • Spindle speed range: 12000 1/MIN
  • Spindle motor power: 22.4 kw
  • Tool taper: ct40 | bt40 | hsk-a63
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1270 mm
  • X-AXIS Feed Force: 13723 n
  • X-AXIS Rapid traverse: 35.6 m/min
  • Y-AXIS Movement: 508 mm
  • Y-AXIS Feed Force: 13723 n
  • Y-AXIS Rapid traverse: 35.6 m/min
  • Z-AXIS Movement: 635 mm
  • Z-AXIS Feed Force: 17459 n
  • Z-AXIS Rapid traverse: 35.6 m/min

Table

  • Outer length: 1321 mm
  • Outer width: 495 mm
  • TSlots size: Width: 15.90 mm to 16.00 mm. Center distance: 80 mm
  • Number of tslots: 5
  • Min distance between vertical spindle and table: 107 mm
  • Max distance between vertical spindle and table: 742 mm
  • Table load: 794 kg

Tools

  • Slots in storage: 30+1
  • Max weight: 5.4 kg
  • Max tool diameter: 127 mm
  • Max tool length: 330 mm

Media

  • Air pressure: 5.5 bar

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Maximum torque: 122. 0 nm at 2000 rpm
      • - Drive system inline direct-drive
      • - Bearing lubrication air / oil injection
      • - Coolant capacity: 208 l
      • - Tool-to-tool (avg): 1. 80 s
      • - Chip-to-chip (avg): 2. 40 s

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
