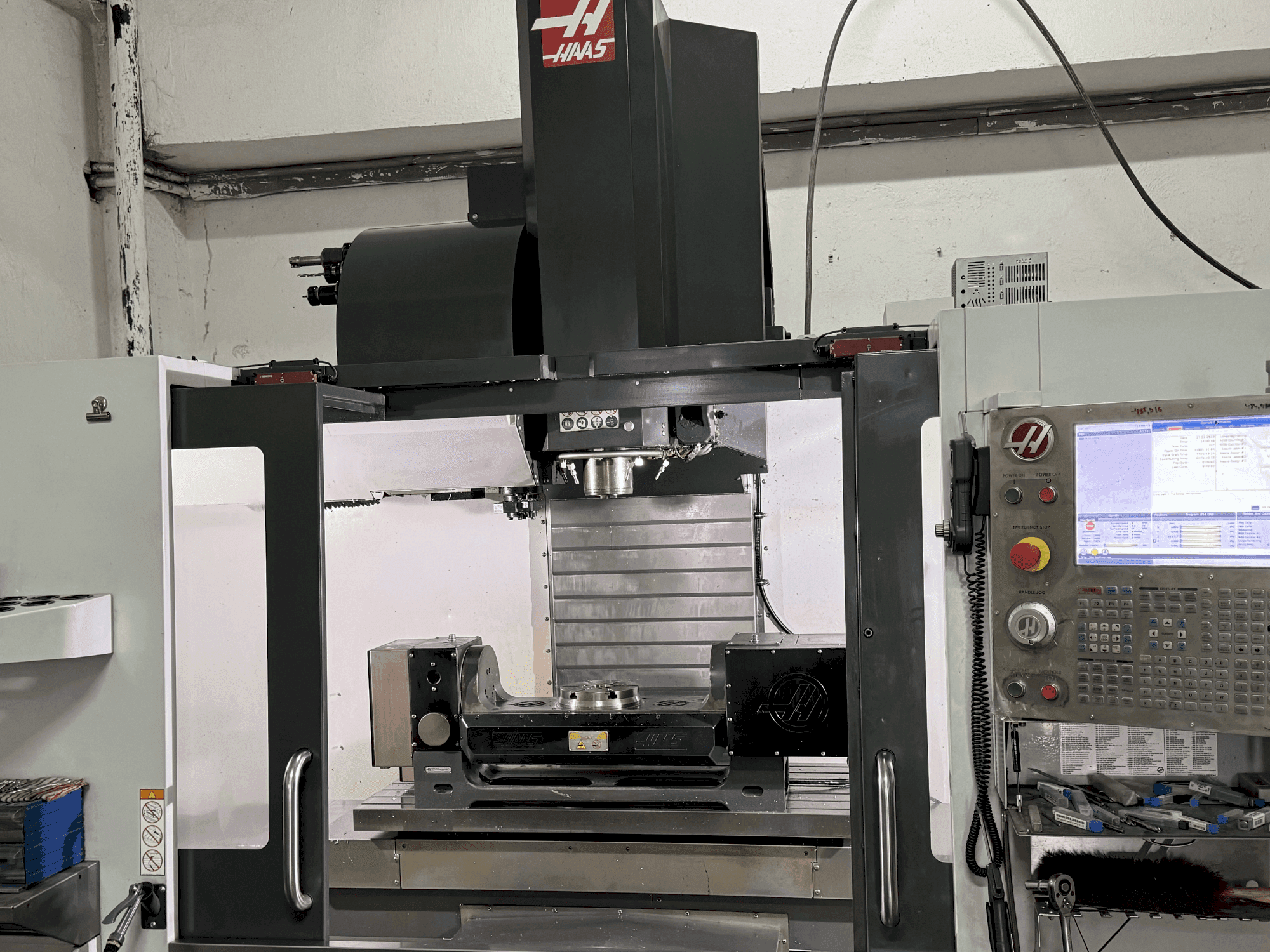

HAAS - VF-5/40TRBG-MIL-HAA-2018-00001

Additional Equipment

• - 95 gallon (360 liter) flood cooling system
• - 24 +1 side-bayonet tool changer

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - 5-axis vertical machining center (1270 x 660 x 635 mm) with removable 210 mm, 2-axis thumb rotary table
  • - X-axis: 1. 270mm / y-axis: 660mm / z-axis: 635mm / a-axis: +-120° / b-axis: 360°
  • - 40 cones
  • - 30 hp (22. 4 kw) vector disc // 710 ipm (18. 0 m/min) rapids
  • - Built-in direct drive vane
  • - Wireless intuitive probing system: renishaw. Includes the haas visual programming system, macros, spindle orientation, and coordinate rotation and scaling.
  • - Standard program memory: 1 gb of onboard memory for program storage and backup.
  • - Chip auger: automatically removes chips from the machine, while compressing them and wringing out the coolant.
  • - Haasconnect: remote monitoring of your haas machine. Requires the machine to be connected to the internet.
  • - Ethernet interface: allows you to easily transfer files to and from the machine over a local wired network.
• Qualitative Machine Benefits:
  • - Media display is used within an nc program to call up media files (images, videos, pdf files) from memory and display them on the control screen as the program runs.
  • - High-speed machining; allows faster feedrates and more complex toolpaths, without hesitation or starving the machine.
  • - Remote jog handle with extra-large touchscreen display; lets you to get up-close to the machine’s work area for part setup, changeover, and inspection, while still having control of the machine.
  • - Rigid tapping; synchronized tapping, with built-in tap cycles.
  • - Through-spindle coolant, 300 psi (21 bar). Provides high-pressure coolant directly through the cutting tool. Requires 3-phase power. Note: tsc cannot be installed in the field unless the tsc-ready option is ordered with the machine.
  • - Through-tool air blast; supplies high-pressure / high-flow air through the tool, directly to the cutting edge. Available for inline spindles, and 50-taper mills. Requires a haas through-spindle coolant system, or the tsc ready option.
  • - Auxiliary coolant filter system; a bag-style filtration system that keeps the coolant free of particulates down to 25 microns. Note: if high-pressure flood coolant (high pressure cool) is installed, do not connect the auxiliary coolant filter (acf) directly to the high-pressure flood coolant pump. To use the auxiliary coolant filter with high-pressure flood coolant, the filter must be connected through an optional through-spindle coolant (tsc) system.
  • - Programmable coolant nozzle; a multi-position nozzle that automatically directs coolant precisely at the cutting tool.
  • - Dwo/tcpc
  • - Machine other options: acf/tab /tsc/wips-r/rtap-3
