Used HAITIAN 530/650 - 2006 - Blow Moulding Machine for sale | gindumac.com

Show in original language

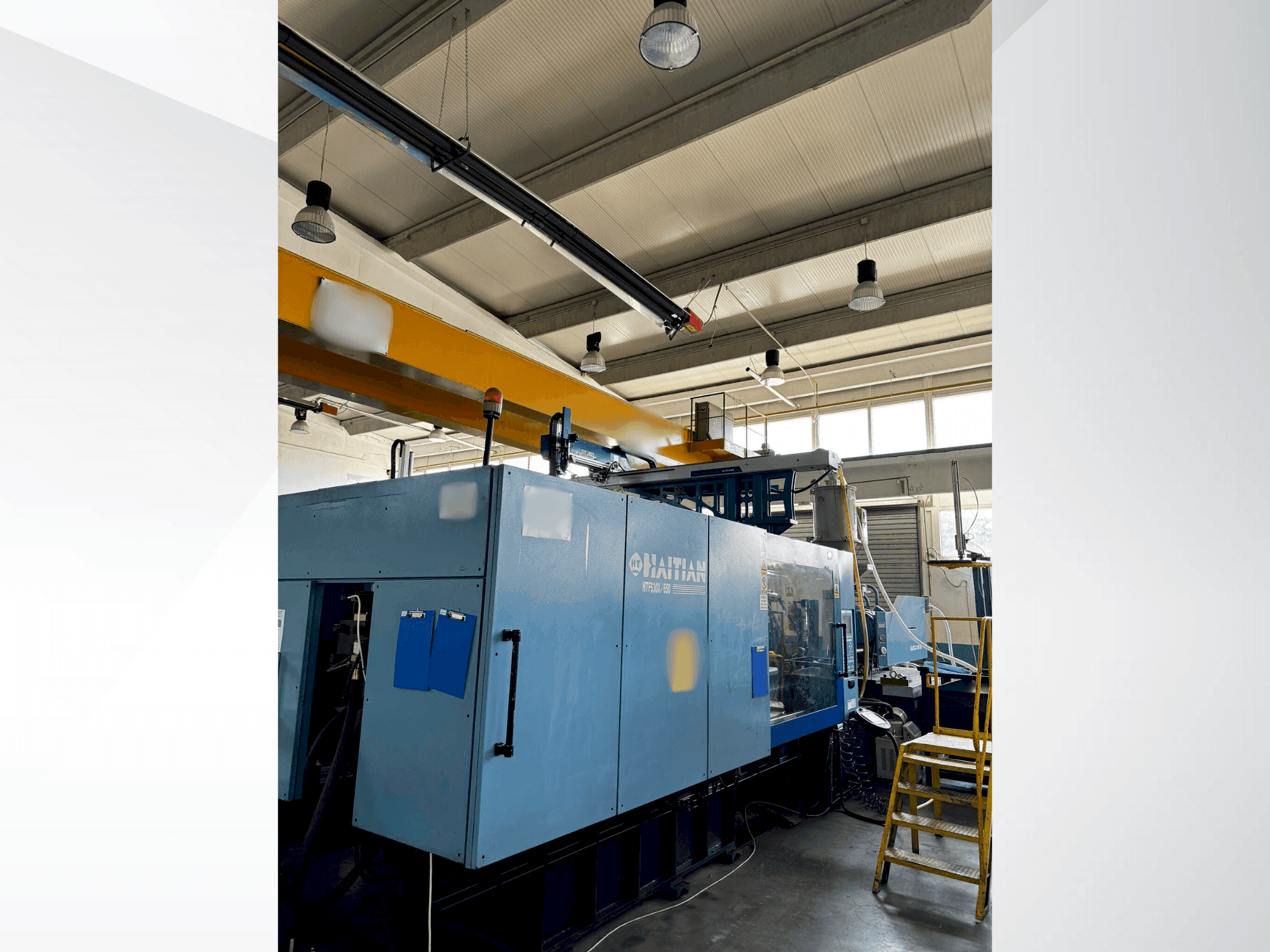

This HAITIAN 530/650 blow moulding machine was manufactured in 2006. It boasts a substantial injection capacity of 2344 grams and a maximum injection pressure of 1770 Bar. The mold clamping force reaches up to 530 tons, supporting a mold thickness range from 350 mm to 820 mm. It features a maximum distance between tie bars of 1640 mm. Consider the HAITIAN 530/650 machine we have for sale. Contact us for further details regarding this blow moulding machine.

Overview

brand: HAITIAN
year: 2006
MODEL: 530/650
application type: Injection Moulding
Location: Croatia
machine type: Hydraulic Injection Moulding Machine
availability: Immediately

Technical Information - HAITIAN 530/650

Main drive

Main motor power: 101.45 kw

Injection Unit

Screw diameter: 90 mm
Injection pressure: Maximum 1770 bar

Clamping unit

Clamping force: Maximum 530 tons KN
Distance between bars: Maximum 1640 mm
Mould height min: 350 mm
Mould height max: 820 mm

Additional Equipment

- New pump
- New cams
- New oil cooler
- New positioners

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Injection capacity: 2344 g
- - Distance between guide rails: 820x820 mm
- - Diameter of central ring: 200 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
