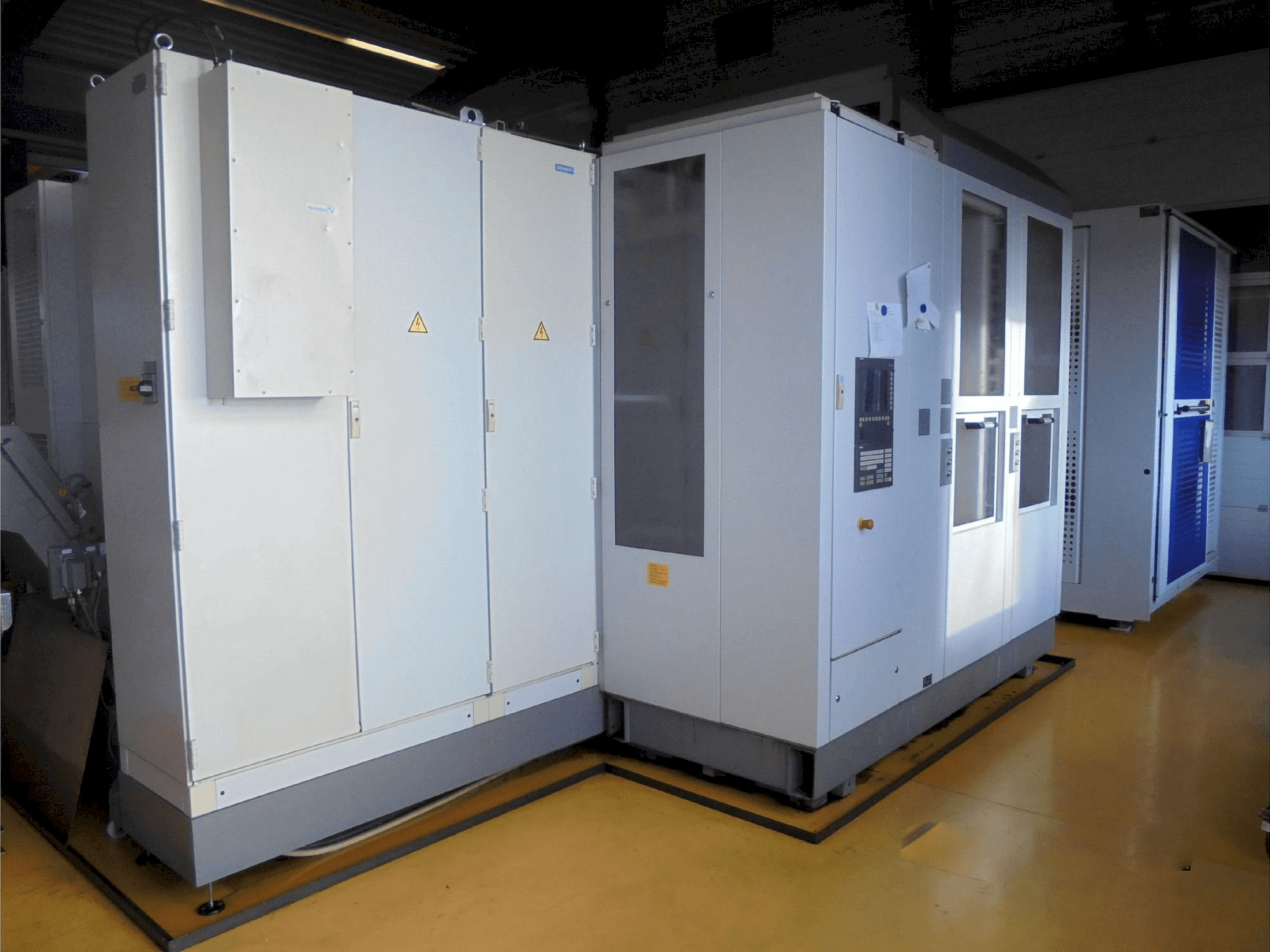

Heckert - HEC500D XXLDE-MIL-HEC-2010-00002

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Tool holder, hollow shank taper din 69893 *tool chain magazine 60 places. 500 x 500 mm
  • - Prepared for retrofitting a portable electronic handwheel (in the manual control panel) *internal coolant supply: coolant through the center of the spindle centric form ad; mechanically adjustable; coolant tank integrated with backwash filter external coolant supply: coolant via nozzles pindle
  • - Flushing gun at the clamping station
  • - Shaft shower > open outlets
  • - Chip conveyor, scraper
  • - Completely enclosed work area cladding according to uv
  • - Piece counter on the nc screen
  • - Remote diagnosis with analog modem
  • - Computer connection via ethernet interface
  • - Pallet sequence operation,tool speed monitoring ,operating hours display
• Qualitative Machine Benefits:
  • - Operating voltage, dialog language german or english, when ordering the options, the corresponding items of the basic equipment are omitted.
  • - Color scheme: light grey ral 7035, mouse grey ral 7005, ruby red ral 3003. Documentation in german on cd-rom
  • - Sinumerik 840d control system
  • - The machining center is equipped with a cnc sinumerik 840d or de with integrated plc. The control system in combination with the simodrive 61d drive components is designed for maximum machining accuracy and high productivity.
  • - The most important functions of the standard equipment are listed below: operating and display components / interfaces - flat control panel with 15" tft color display - at-compatible pc as hmi-pcu50 with windows user interface and membrane keyboard
  • - (hmi = human-machine communication), remote diagnostics with analog modem and software 1 /
  • - Machine control panel for operating machine functions - usb interface on the main control panel
  • - Ethernet interface 10/100 mbit/s for rj45 connector
  • - Cnc user memory 5. 1 mbyet buffered for programs and data
  • - Manual input (mda) and teach ni - set-up functions (jog) for all axes and the milling spindle with machine control panel or manual control panel - constantly active diagnostics system with error and status display in plain text - screens for display or input of: tool data, process data, data for chip conveyor runtime regime, data for operator influence, operating hours display service function for tool and pallet changes tool corrections - tool management - tool wear monitoring (time, number of pieces) - tool radius correction in the plane zero point offsets - 04zero point offsets ej axis and additional additive, programmable zero point offsets - zero point offsets programmable (frames)
