HELLER - MCH 350DE-MIL-HEL-2006-00002

Name: HELLER MCH 350
Brand: HELLER
SKU: DE-MIL-HEL-2006-00002
Price: 120085 GBP
Availability: InStock

£ 120,085

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HELLER MCH 350 For sale | gindumac.com

Show in original language

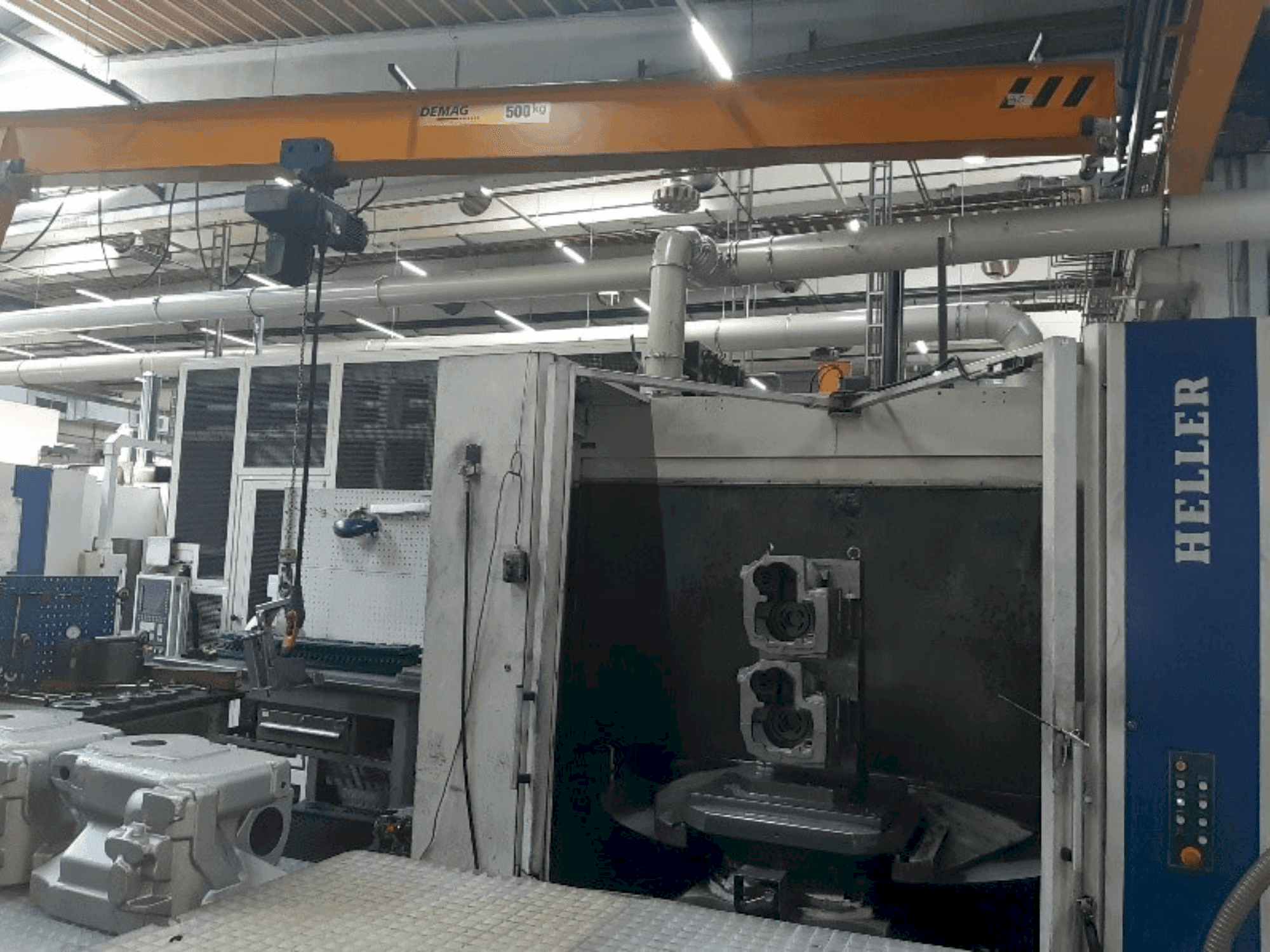

This 4-axis HELLER MCH 350 was manufactured in 2006, featuring a Siemens 840D PL control system and a robust spindle capable of 7,000 rpm. It includes a HSK 100 tool clamping system and a large magazine with 234 slots. The machine offers a substantial working area of 1250 x 1000 x 1000 mm and a pallet size of 800 x 800 mm. For more information about this machining centre, please reach out to us.

Overview

brand: HELLER
year: 2006
MODEL: MCH 350
production hours: 48659
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - HELLER MCH 350

Control Unit

Control Brand: SIEMENS
Control Model: 840D PL

Dimensions

Table Length: 800 mm
Table Width: 800 mm

Movement

Number of Axes: 4
X-axis Travel: 1250 mm
Y-axis Travel: 1000 mm
Z-axis Travel: 1000 mm

Technical Specification

Spindle Power: 43 kW
Spindle Speed: 7000 RPM
Taper Size: HSK 100
Through-spindle Coolant: Yes

Additional Information

Additional equipment

KNOLL Coolant System, VRF 250, IKZ 50 bar
Rotary table with 360,000° x 0.001° positioning
Infrared receiver for measuring probe (BLUM)
Multi-spindle head mount
Quick drill breakage control (SBBK)
Code chip for tools runtime and quantity recording
Integrated process monitoring (IPM)
Disk blowing device for operator door
Evacuation strategy
