HELLER MCS-U 300 Horizontal Machining Center

Show in original language

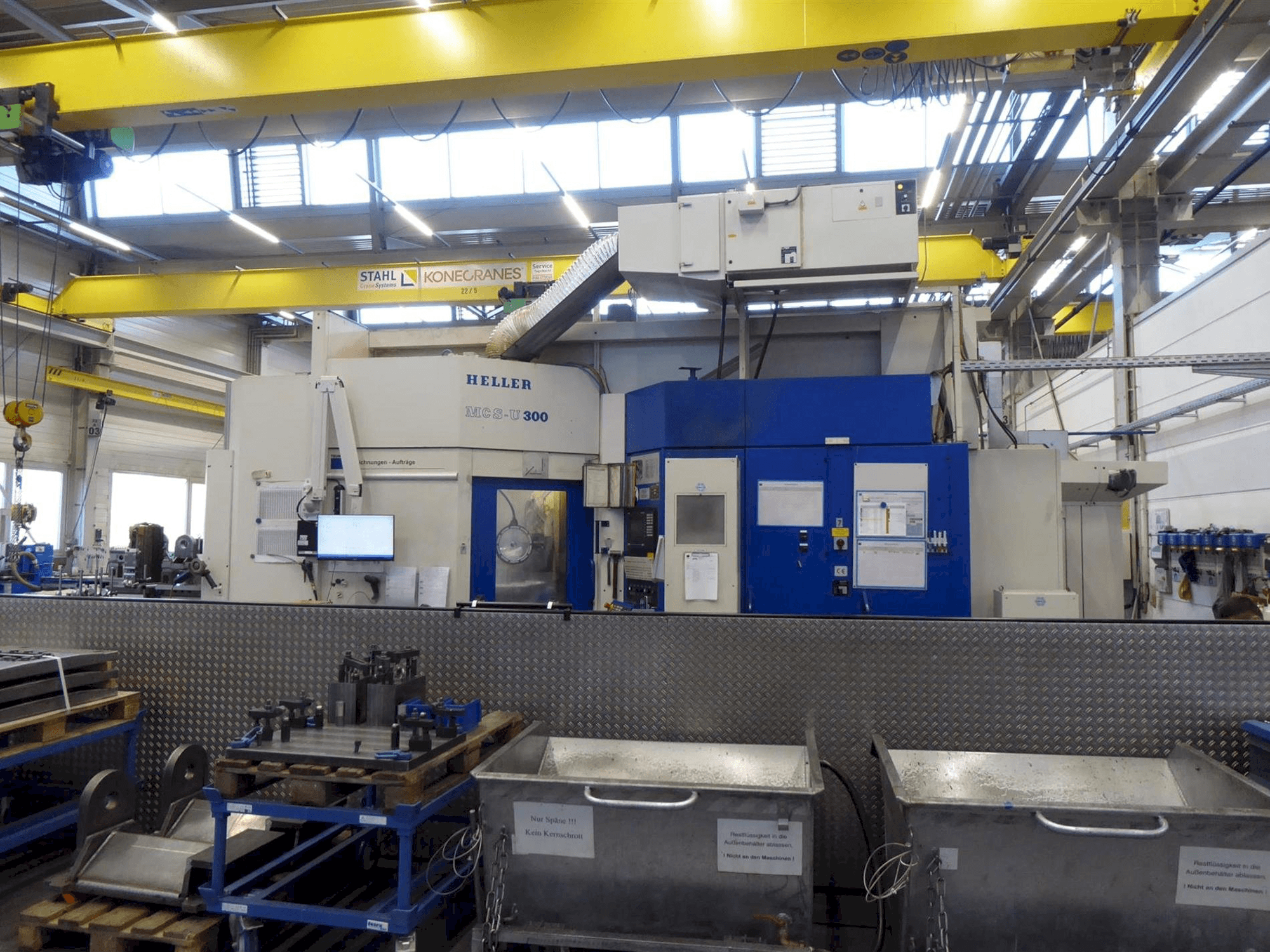

This HELLER MCS-U 300 Horizontal Machining Center was made in Germany in the year 1999. It has been operative for approximately 41200 production hours. It is operated through a SIEMENS SINUMERIK 840D control unit. This machine incorporates a spindle speed range up to 4500 rpm. It includes a tool holders (120 plus pieces), a renishaw probe, and a set-up pallets (9 pieces) as additional equipment. It has been regularly serviced and maintained. In 2018 a new spindle was installed.

Overview

brand: HELLER
year: 1999
MODEL: MCS-U 300
production hours: 41200
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - HELLER MCS-U 300

General Data

Machine weight: 23500 kg

Control Unit

Model: Sinumerik 840D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 4500 1/MIN

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 1100 mm

Workpiece

Workpiece x: 1250 mm
Workpiece y: 1200 mm

Table

Outer length: 630 mm
Outer width: 800 mm

Tools

Slots in storage: 120
Max tool diameter: 100/270 mm
Type of tool holder: SK 50

Media

Power consumption: 68 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Tool holders (120 plus pieces)
- Renishaw probe
- Set-up pallets (9 pieces)

Additional Information

Machine history

End product: Machinery parts
Industries: Machinery building

Machine Benefits

Technical Machine Benefits:
- - 2 pallets (indexing 360 x 1 degres)
- - Spindle diameter 110 mm
- - Spindle motor (s1-100% / s6-40% / s6-25%) 28/43/50 kw
- - Spindle torque (s1-100% / s6-40% / s6-25%) nm 536/822/955
- - Cooling thru spindle max. 50 bar
Qualitative Machine Benefits:
- - Regularly serviced and maintained.
- - New spindle installed in 2018

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
