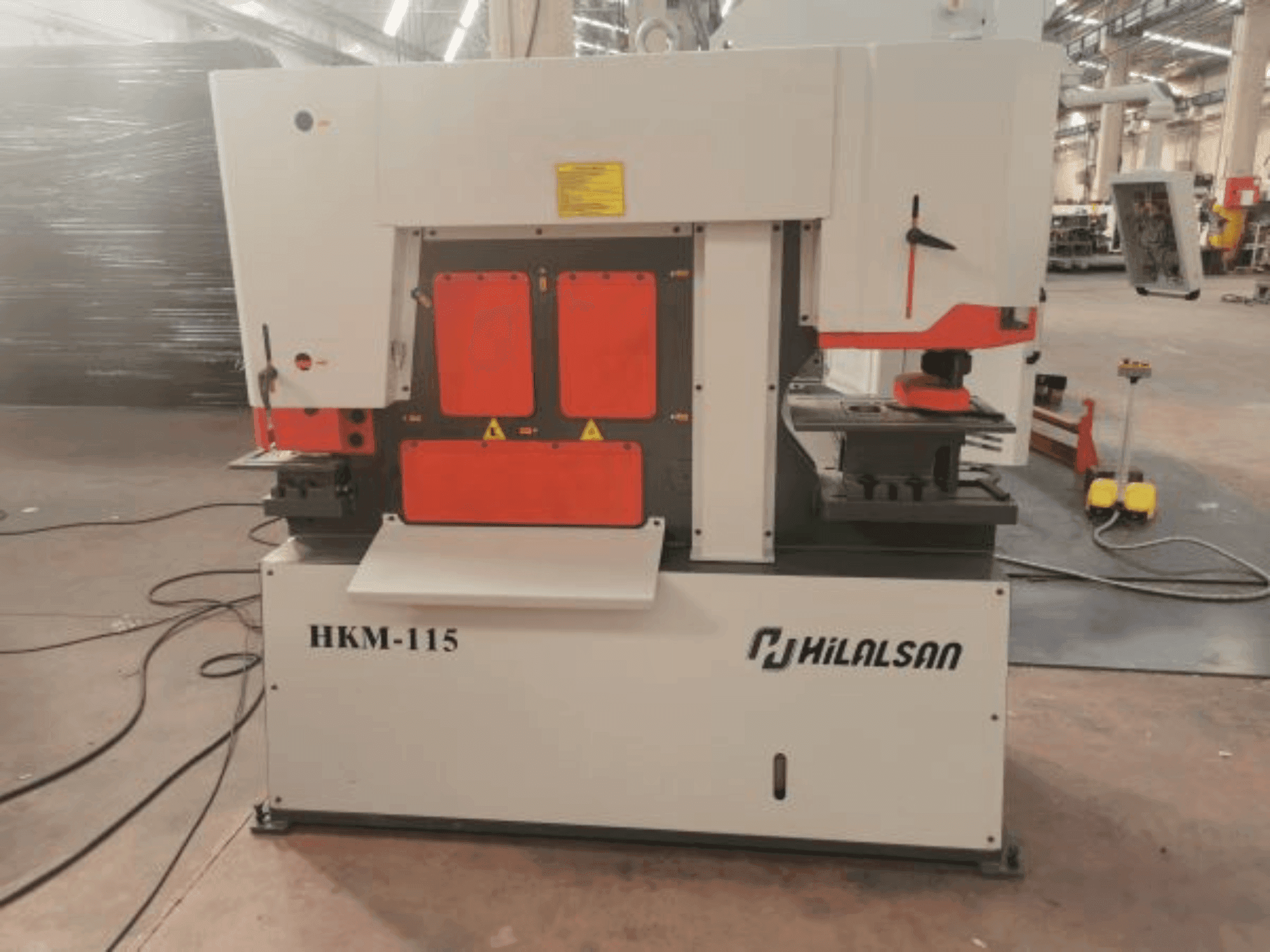

HILALSAN - HKM-115HU-SHE-HIL-2022-00001

Additional Equipment

• - Dual-cylinder hydraulic system
• - Easily interchangeable punching tool
• - One set of punching tools included
• - Angle cutting shear
• - Flat bar shear
• - Notching tool
• - Rod cutting tool
• - 1000 mm electronic back gauge
• - Foot pedal with emergency stop on both sides
• - Delivered with one set of Ø26 mm punch and die

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Cutting capacity (horizontal, width × thickness): 380 × 25 mm / 600 × 15 mm
  • - Blade length: 610 mm
  • - Working height: 1070 mm
  • - Angle cutting (90° cut): 120 × 12 mm
  • - Max punching capacity (diameter × thickness): Ø34 × 26 mm / 55 × 16 mm
  • - Throat depth: 405 mm
  • - Max stroke length: 80 mm
  • - Profile cutting capabilities: round bar: Ø55 mm, square tube: 50 × 50 mm
  • - Rectangular notching capacity: 60 × 100 × 13 mm
  • - Simultaneous dual-side operation possible

Payment Terms

• Payment in advance

• Asset Financing
