Huron K2X 10

Photo Gallery

Huron - K2X 10GB-MIL-HUR-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

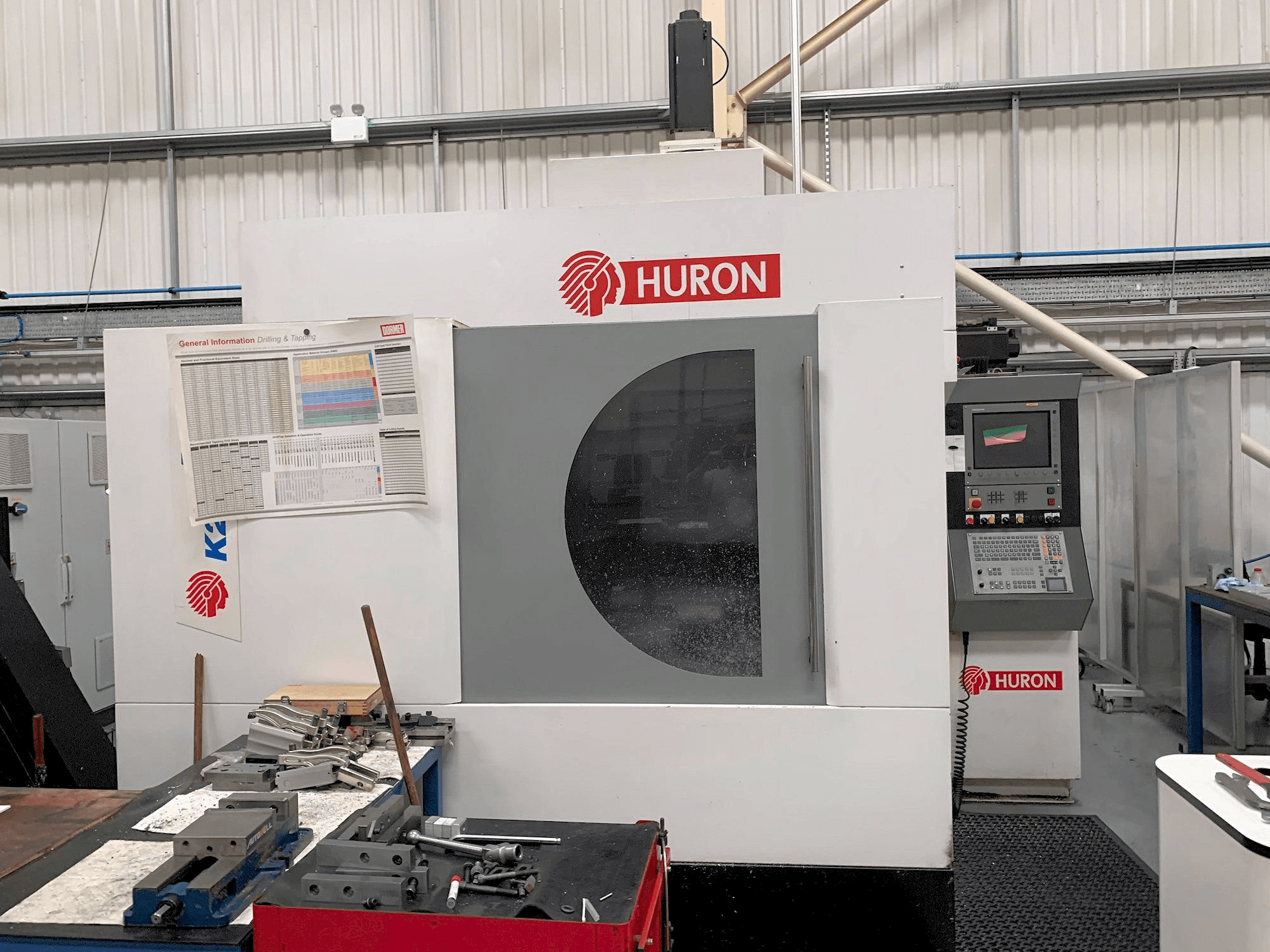

Huron K2X 10 Vertical Machining Center

Show in original language

This Huron K2X 10 Vertical Machining Center was built in France in the year 2011. It is operated with a Heidenhain iTNC 530 control unit. This machine is capable of working with a spindle speed up to 18000 rpm. It presents very good conditions.

Overview

brand: Huron
year: 2011
MODEL: K2X 10
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Huron K2X 10

General Data

Measurements width: 5930 mm
Measurements depth: 3520 mm
Measurements height: 3400 mm
Machine weight: 12500 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/MIN

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece x: 1150 mm
Workpiece y: 800 mm
Workpiece z: 500 mm
Workpiece weight: 1000 kg

Table

Outer length: 1150 mm
Outer width: 800 mm

Tools

Slots in storage: 36
Max weight: 10 kg
Max tool diameter: 100 mm
Max tool length: 300 mm
Type of tool holder: HSK-A 63

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

Spindle power 30 kw
Interlocked guards
Coolant
Rapid feedrates x y z 60 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
