Hyundai Wia F960B

Photo Gallery

Hyundai Wia - F960BKR-MIL-HYU-2019-00004

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

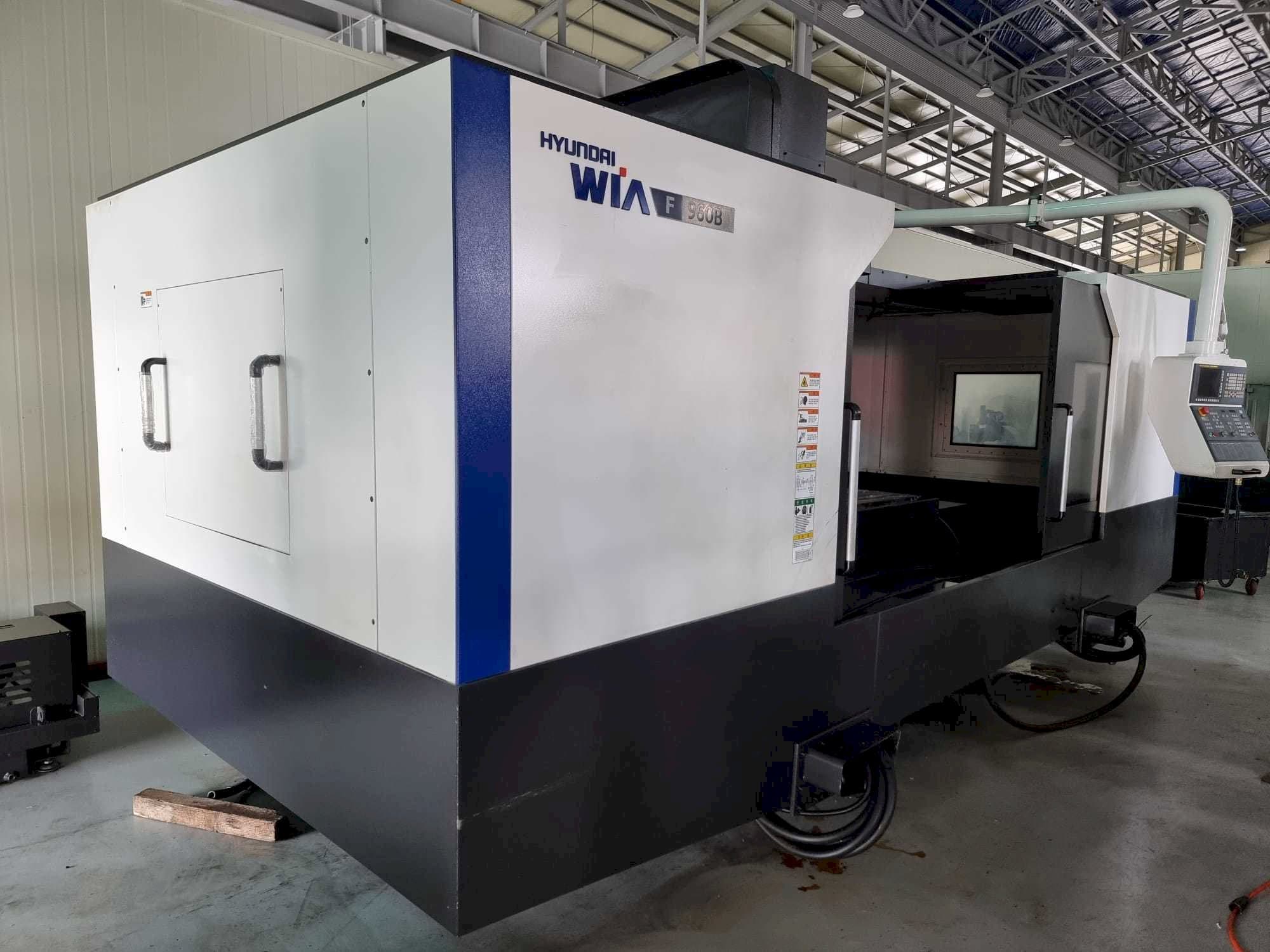

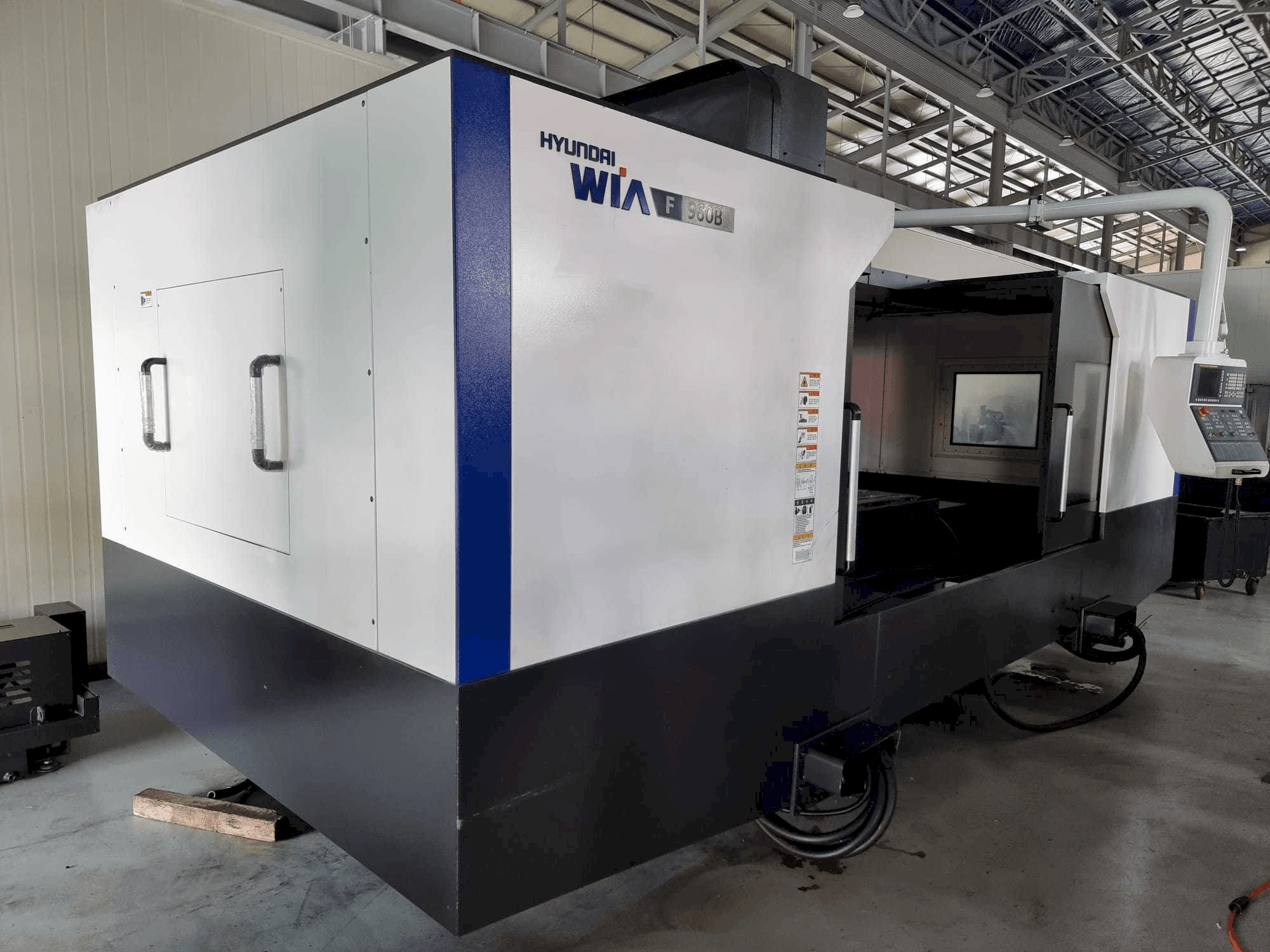

Hyundai Wia F960B Vertical Machine Center

Show in original language

This Hyundai Wia F960B Vertical Machine Center was built in 2019. It is operated through a Fanuc i Series control unit and has 3 axis. The machine has a spindle speed of 8000 rpm.

Overview

brand: Hyundai Wia
year: 2019
MODEL: F960B
production hours: 0
application type: Milling
Location: South Korea
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Hyundai Wia F960B

General Data

Measurements width: 6100 mm
Measurements depth: 4425 mm
Measurements height: 3647 mm
Machine weight: 23500 mm KG

Control Unit

Model: i Series
Brand: FANUC

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 22/18.5 kw
Number of axis: 3

Movement

X-AXIS Movement: 2450 mm
X-AXIS Rapid traverse: 16 m/min
Y-AXIS Movement: 960 mm
Y-AXIS Rapid traverse: 16 m/min
Z-AXIS Movement: 850 mm
Z-AXIS Rapid traverse: 20 m/min

Table

Outer length: 2700 mm
Outer width: 950 mm
Table load: 4500 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle cooling system
- - Atc extension: 20
- - Tool shank type: bbt50
- - Pull stud: 45°
- - Coolant tank: 690l
- - Interior screw chip conveyor
- - Remote mpg
- - Distance from table top to sp. Nose: 200 - 1050 mm
- - Max. Tool length: 300 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

F960B(en).pdf
