- Hyundai Wia L210LA Lathe machine

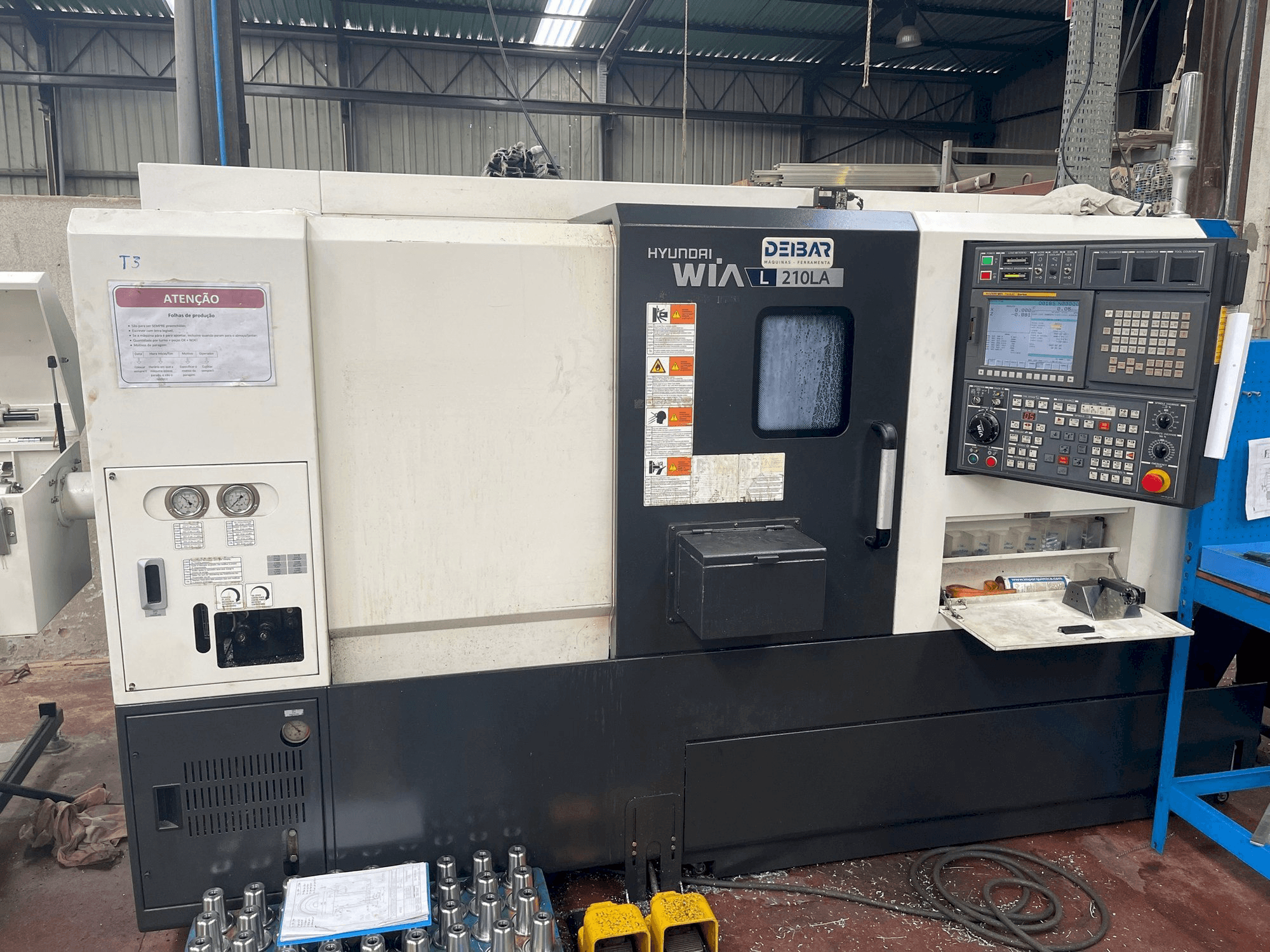

This Hyundai Wia L210LA Lathe machine was manufactured in Korea in 2016. This machine is operated by a FANUC control unit. It works with a spindle speed up to 4000 rpm and has 11408 working hours of which 2886 are cutting hours. A programmable tailstock MT4, and presetter are included.
Overview
- brand: Hyundai Wia
- year: 2016
- MODEL: L210LA
- production hours: 11408
- application type: Turning
- Location: Portugal
- machine type: Horizontal Turning Machine
Technical Information - Hyundai Wia L210LA
Dimensions
- Machine Depth: 1650 mm
- Machine Height: 1870 mm
- Machine Weight: 4200 kg
Movement
- Number of Axes: 2
- X-axis Travel: 210 mm
- Y-axis Travel: 430 mm
Technical Specification
- Spindle Speed: 4000 RPM
Additional Information
Additional equipment
- Presetter is included
Machine Benefits
Qualitative Machine Benefits
- Programmable tailstock mt4
- Motor (max/cont. ) kw(hp) 15/11(20/15) [22/18. 5 (29. 5/24. 8)]
- Torque (max/cont. ) n. M(lbf. Ft) 286. 4/210(211. 2/154. 9) [252/211. 9(185. 9/156. 3)
Technical Machine Benefits
- Swing over the bed 550 (21. 7″) mm(in)
- Swing over the carriage 350 (13. 8″) mm(in)
- Max. Turning dia. 350 (13. 8″) mm(in)
- Max. Turning length 530 (20. 9″ mm(in)
- Bar capacity 65 mm
- Chuck size 169 (6. 7″) mm(in)
- Spindle bore 78 (3″) mm(in)
- Spindle type - belt
- Spindle nose - a2-6
- Tailstock travel 520 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
