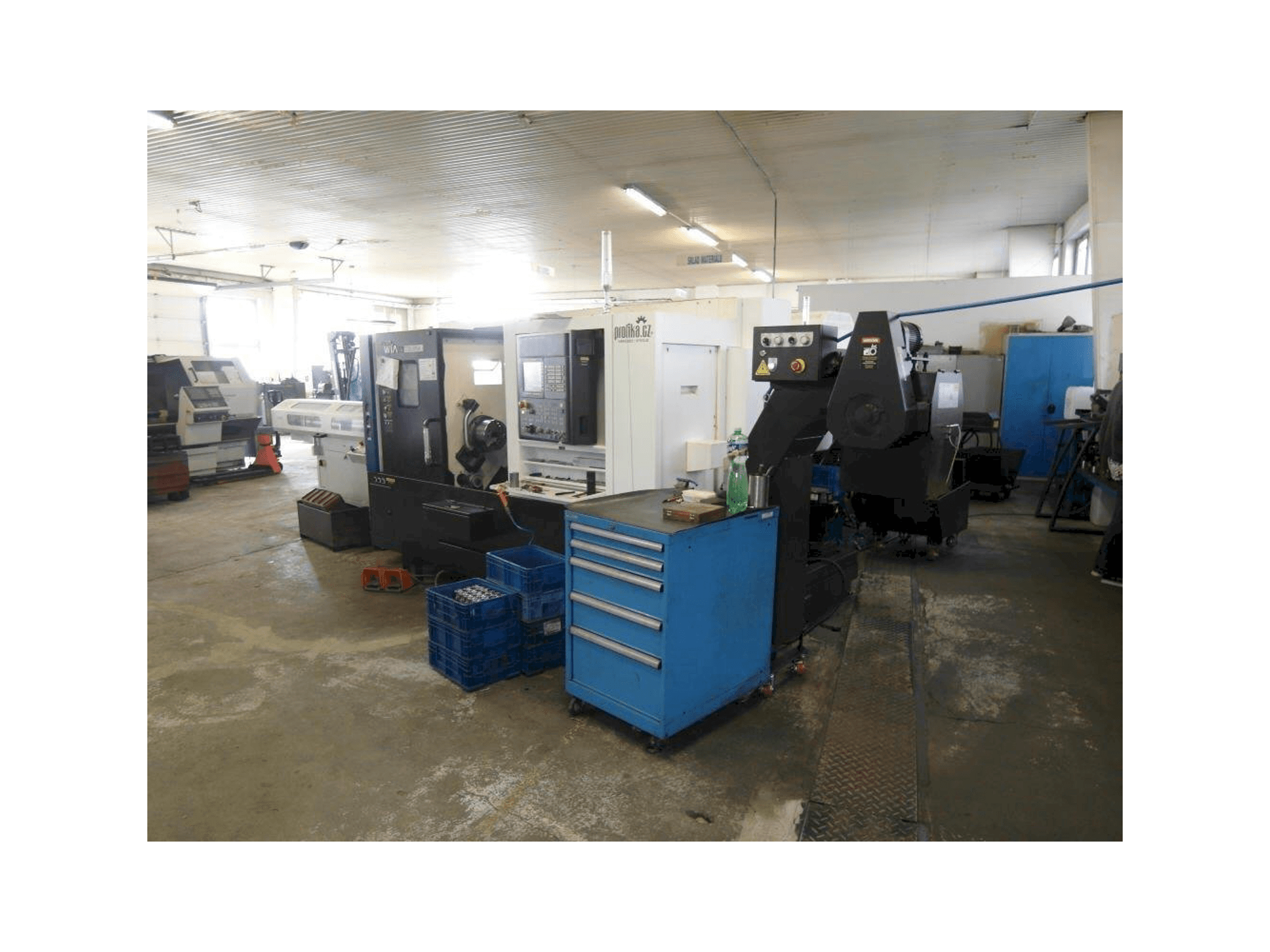

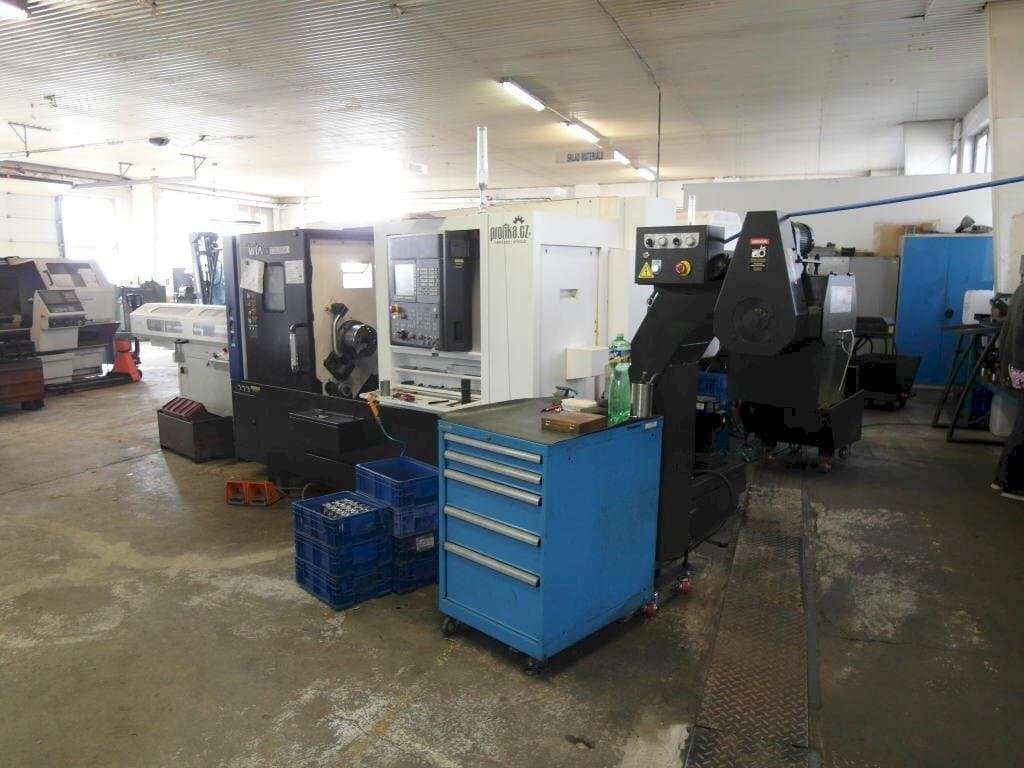

This Hyundai Wia L230LMSA Lathe was manufactured in South Korea in 2017. This 5 axis machine is operated by a HYUNDAI WIA FANUC i Series control unit. It works with a spindle speed up to 4000 rpm and a turning length 521 mm. This machine is in very good condition.
Overview
- brand: Hyundai Wia
- year: 2017
- MODEL: L230LMSA
- application type: Turning
- Location: Czech Republic
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - Hyundai Wia L230LMSA
Control Unit
- Control Brand: FANUC
- Control Model: i Series
Dimensions
- Machine Depth: 1685 mm
- Machine Height: 1860 mm
- Machine Weight: 5000 kg
Movement
- Number of Axes: 5
- X-axis Travel: 220 mm
- Y-axis Travel: 560 mm
Technical Specification
- Number of Tools: 12
- Spindle Power: 15 kW
- Spindle Speed: 4000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Machine in very good condition
Technical Machine Benefits
- B-axis movement 560 mm; c-axis 0. 001 deg. On both spindles
- Max. Turning diameter 310 mm
- Max. Swing 550 mm
- Max turning length 521 mm
- Hydraulic chuck size: main 8″, sub-spindle 6″
- Torque 286. 6/210. 2 nm
- Max. Bar diameter (spindel/sub) 65 / 45 mm
- Milling tool speed 5000 rpm
- Sub-spindle speed 5000 rpm; power 3. 7/2. 2 kw
- High-pressure cooling 20 bar tool setter manual guide programming automatic parts removal sub-spindle parts ejector (pneumatic)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
