Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
ILLIG - SB 74E-9CZ-OTH-ILL-2007-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Plastics Processing Machinery
- ILLIG SB 74E-9 vacuum forming and punching machine for plastics

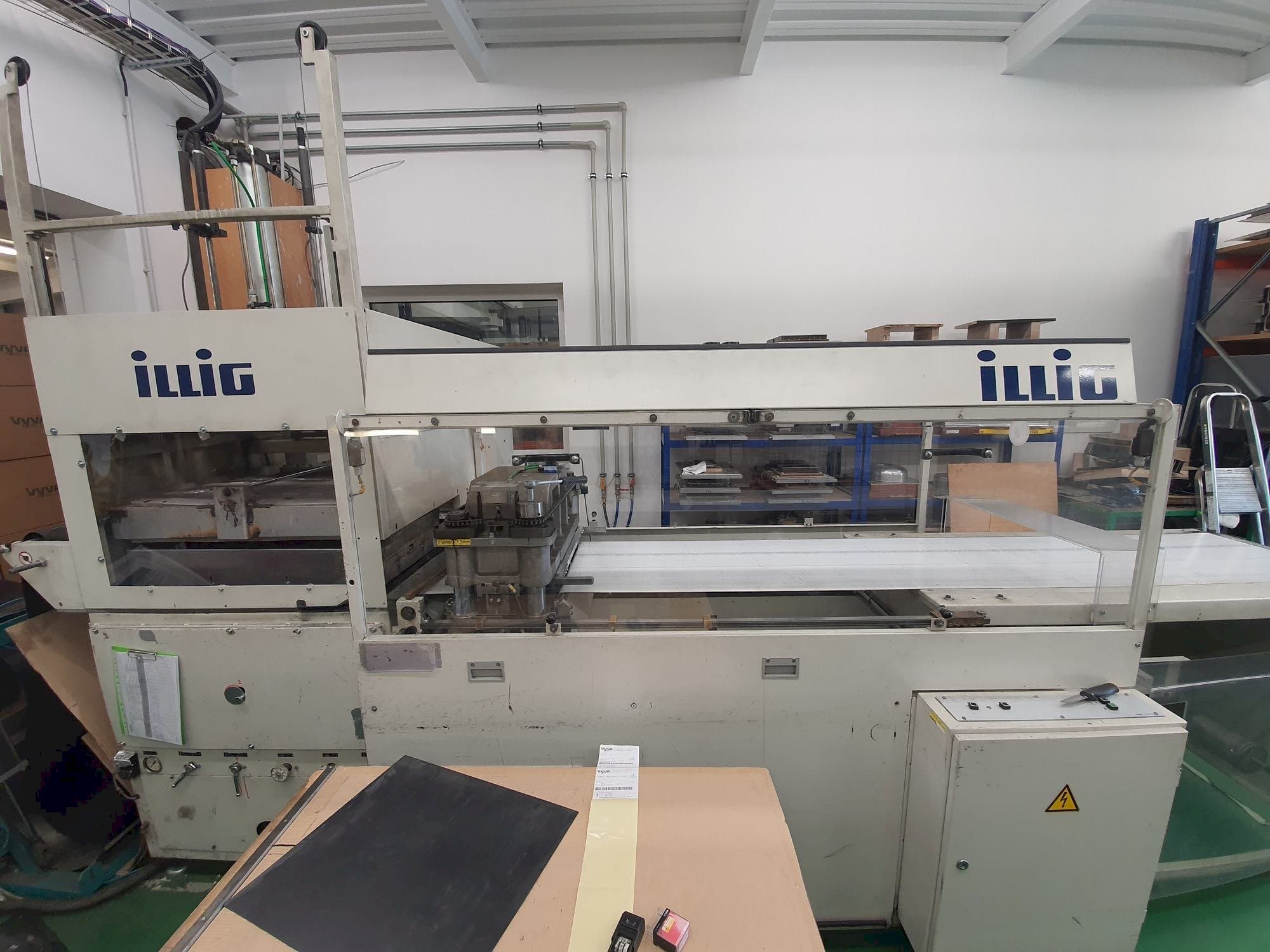

This ILLIG SB 74E-9 vacuum forming and punching machine for plastics was made in the year 2007 in Germany. The machine has a working area of 505 x 775 mm.
Overview
- brand: ILLIG
- year: 2007
- MODEL: SB 74E-9
- application type: Other Plastic Processing Machinery
- Location: Czech Republic
- machine type: Thermoforming Machine
- availability: Sold
Technical Information - ILLIG SB 74E-9
General Data
- Measurements width: 4500 mm
- Measurements depth: 1900 mm
- Measurements height: 2800 mm
- Machine weight: 2000 kg
Media
- Main electronic connection: 400V
Additional Information
- Technical Machine Benefits:
- - The maximum size of the working area 505 x 775 mm
- - Maximum dimension of plastic material 500 x 770 mm
- - Maximum weight of plastic material 600 g/m2
- - Max. Film width 540 mm
- - Total input power 10. 55 kw
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
