➤ Used Index GS65 Horizontal Lathe For Sale | gindumac.com

Show in original language

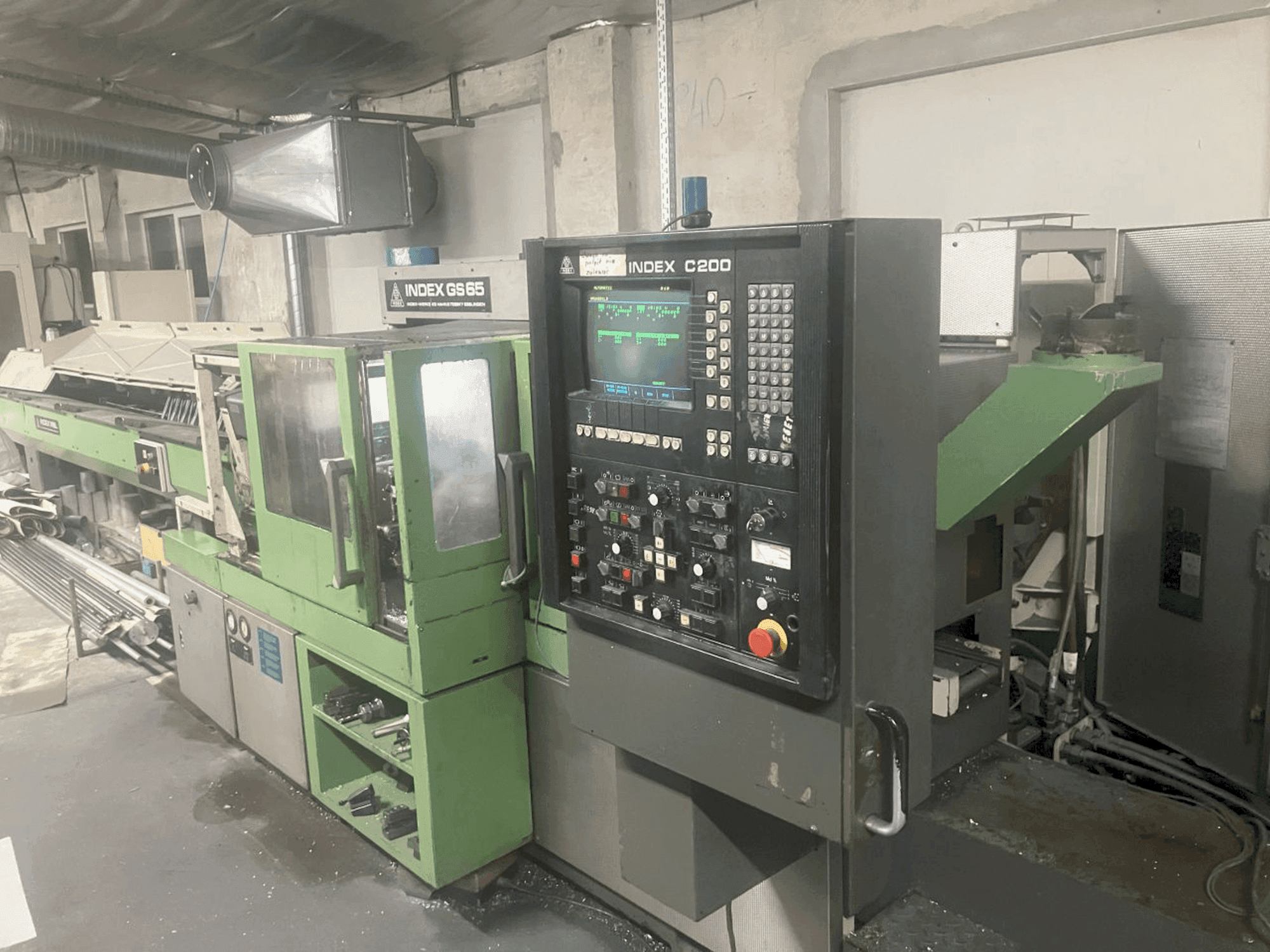

This 2-axis Index GS65 was manufactured in 1992. A robust horizontal turning machine, it offers precision and reliability for complex machining tasks. Consider the opportunity to buy this Index GS65 horizontal turning machine. Contact us for more information about this machine.

Overview

brand: Index
year: 1992
MODEL: GS65
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine

Technical Information - Index GS65

Movement

Number of Axes: 2

Technical Specification

Spindle Speed: 5000 RPM

Additional Information

Additional equipment

Bar feeder
Slide travel Z-axis (longitudinal): Revolver 1: 550 mm / Revolver 2: 250 mm
Slide travel X-axis (transverse): Revolver 1: 163 mm / Revolver 2: 140 mm
Turning diameter: Revolver 1: 200 mm / Revolver 2: 280 mm
Turning length: Revolver 1: 500 mm / Revolver 2: 250 mm
Spindle bore: 65 mm / Clamping diameter: 200 mm / Spindle front diameter: 110 mm / Spindle nose (according to DIN 6353): 140 mm
Power at 100% duty cycle (60% ED): 36 kW (43 kW) / Drive type: Direct drive / Speed range I: 25 to 2500 rpm / Torque at spindle (range I): 265 Nm (315 Nm) / Speed range II: 50 to 5000 rpm/ Torque at spindle (range II): 132 Nm (155 Nm)
options included: about 40 pcs spindle reduction sleeves, 6 live tool holders, and about 30 fixed tool holders.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
