Johnford BMC 110

Photo Gallery

Johnford - BMC 110ES-BOR-JOH-2012-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Johnford BMC 110 For sale | gindumac.com

Show in original language

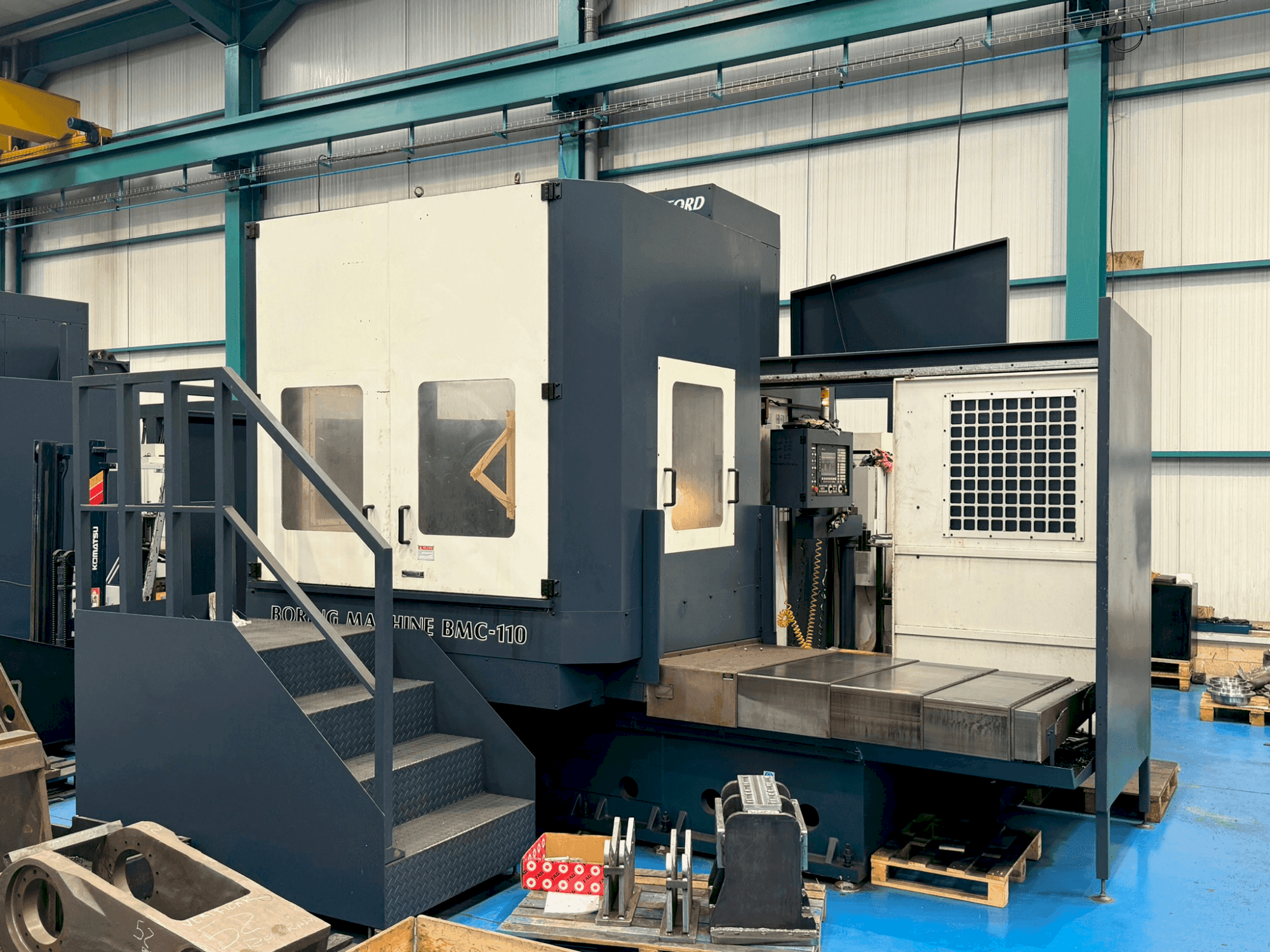

This 5-axis Johnford BMC 110 boring machine was manufactured in 2012. It features a robust table with a 1,400 x 1,600 mm surface and a maximum load capacity of 12,000 kg. Equipped with a high-power spindle, it offers speeds up to 3,000 rpm and a spindle diameter of 110 mm. The machine includes a 60-tool capacity automatic changer and internal coolant at 20 BAR. For those looking to buy this Johnford BMC 110 boring machine, Contact us for further details.

Overview

brand: Johnford
year: 2012
MODEL: BMC 110
application type: Other Machine Tools
Location: Spain
machine type: Boring Machine (Metal)

Technical Information - Johnford BMC 110

General Data

Measurements width: 6200 MM
Measurements depth: 7100 MM
Measurements height: 3980 MM
Machine weight: 27,000 KG

Main drive

Spindle speed range: 0-3,000 1/MIN
Spindle motor power: 22/25 kw
Main motor power: 71 kw

Movement

X-AXIS Movement: 2000 mm
X-AXIS Working Feed: 12,000 mm/min
Y-AXIS Movement: 1800 mm
Y-AXIS Working Feed: 12,000 mm/min
Z-AXIS Movement: 1600 mm
Z-AXIS Working Feed: 12,000 mm/min
W-Axis Movement: 550 mm
W-Axis Working Feed: 1600 mm/min

Table

Outer length: 1400 mm
Outer width: 1600 mm
Max distance between vertical spindle and table: 1800 mm
Table load: Maximum 12,000 kg

Tools

Max weight: 25 kg
Max tool diameter: 125 mm
Max tool length: 400 mm

Additional Information

Additional equipment

Internal coolant 20 BAR
Double longitudinal chip conveyor
Transversal chip conveyor
Portable Handwheel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
