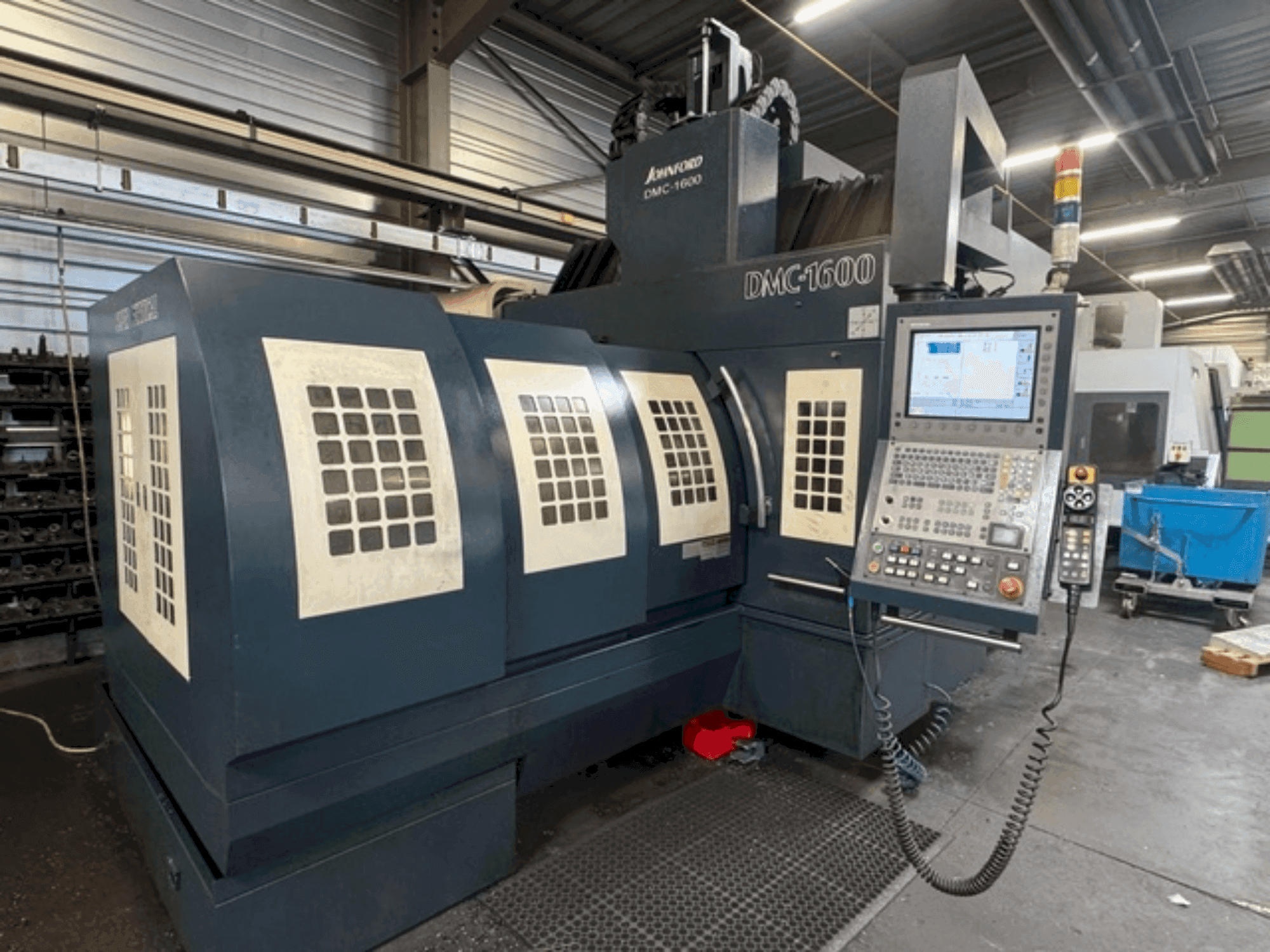

Front view of Johnford DMC-1600 machine
Front view of Johnford DMC-1600 machine

Johnford - DMC-1600FR-MIL-JOH-2008-00001

£ 47,000
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Johnford DMC-1600 was manufactured in 2008. It features a robust table surface of 1700x1100 mm, capable of handling loads up to 6000 kg. With travels of X1600 mm, Y1100 mm, and Z800 mm, it offers extensive machining capabilities. The spindle operates at 8000 rpm with a BT40 taper, supported by a 24-station tool magazine. Additional features include a chip conveyor, coolant system, and a comprehensive set of tools. Contact us for more information about this machine.

Overview

  • brand: Johnford
  • year: 2008
  • MODEL: DMC-1600
  • production hours: 0
  • application type: Milling
  • Location: France
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - Johnford DMC-1600

General Data

  • Measurements width: 3300 mm
  • Measurements depth: 6465 mm
  • Measurements height: 3600 mm
  • Machine weight: 20000 kg

Control Unit

  • Brand: HEIDENHAIN
  • Model: iTNC 530

Main drive

  • Spindle speed range: 8000 1/MIN
  • Spindle motor power: 15/20 kW
  • Tool taper: BT40
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1600 mm
  • Y-AXIS Movement: 1100 mm
  • Z-AXIS Movement: 800 mm

Table

  • Table load: 6000 kg

    Additional Equipment

    • - Electronic Handwheel
    • - USB-RS232 Ports
    • - Air-Conditioned Cabinet
    • - Coolant Through Spindle
    • - 3-Color Status Light
    • - Chip Conveyor + Bucket
    • - Full Documentation
    • - Angle Heads
    • - Large Set of Approx. 60 Tool Holders and Cutting Tools

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Spindle/table surface distance: 150-950 mm
        • - Rapid feed speed: 15000/12000 mm/min
        • - Table surface: 1700x1100 mm
        • - Tool magazine: random-arm tool magazine with 24 stations

      *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
