➤ Used KEYENCE IM 7020 For Sale | gindumac.com

Show in original language

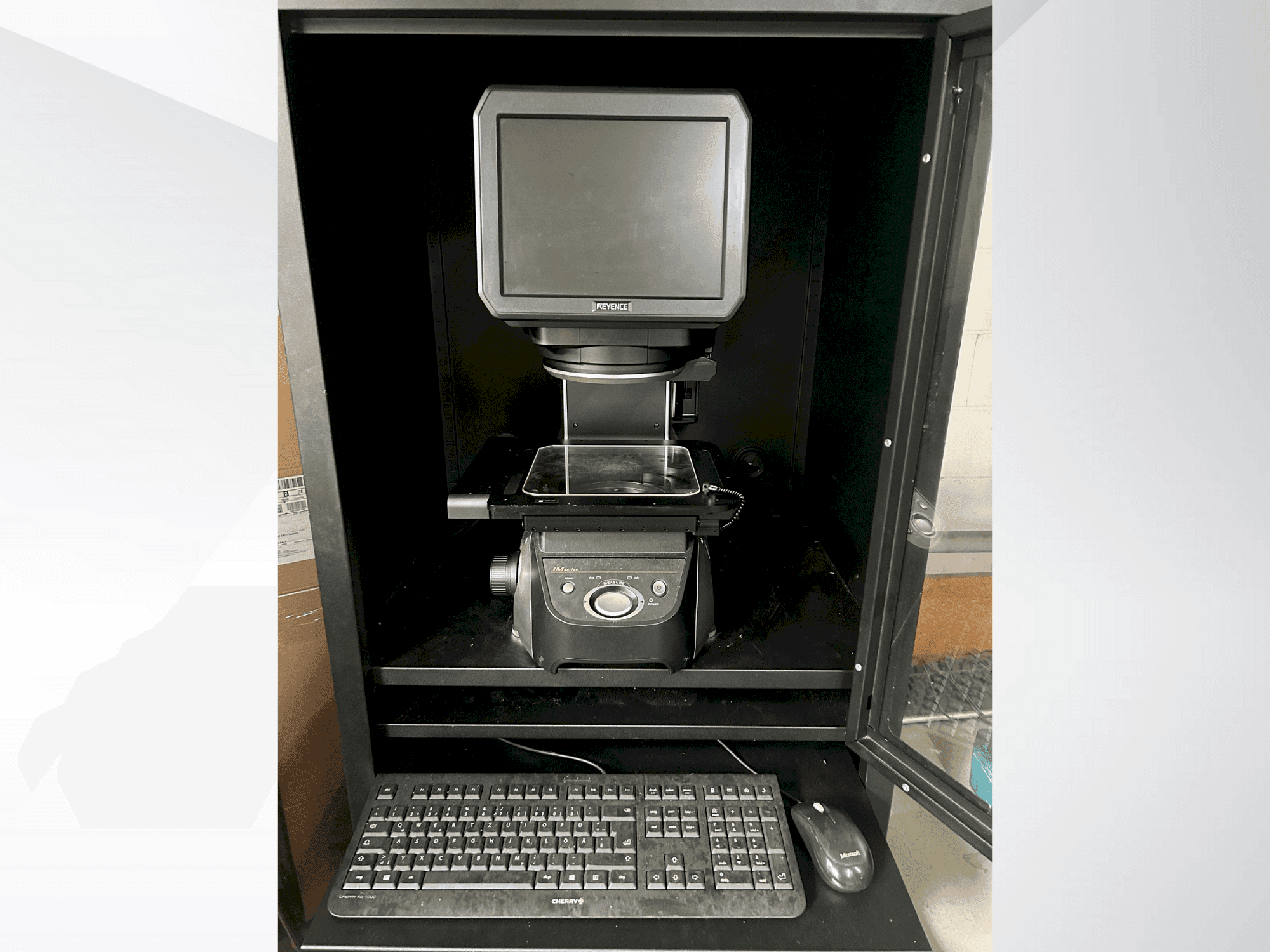

This optical measurement machine was manufactured in 2018. It features a monochrome CMOS sensor, a 10.4" display, and a telecentric lens system. The machine offers a standard measurement mode with a 200 mm x 200 mm area and a precision mode of 125 mm x 125 mm. It supports a variety of external connections including LAN and USB ports. Consider the opportunity to buy this KEYENCE IM 7020 optical measurement machine. Contact us for more information about this machine.

Overview

brand: KEYENCE
year: 2018
MODEL: IM 7020
application type: Measuring
Location: Germany
machine type: Optical Measurement Machine

Additional Information

Additional equipment

Optical Probe Measurement: Measurable Range: Diameter: Ø90 mm x 90 mm / Max Depth: 30 mm / Probe Tip Diameter: Ø3 mm / Contact Force: 0.015 N / Repeatability: ±2 micra / Accuracy: ±(8 + 0.02L) micra
External Connections: Input: Voltage-free input (contact or non-contact) / Output: Photo-MOS output, rated at 24 V DC, 0.5 A
Interfaces: LAN: RJ-45 (10BASE-T/100BASE-TX/1000BASE-T) / USB: USB 2.0 Type-A (6 ports: 2 front, 4 rear)
Storage: Hard Disk: 500 GB
Lighting System: Transmitted Light: Telecentric backlight (green LED) / Ring Light: Multi-angle lighting with 4 segments (white LED) / Flat-angle directional lighting (green LED)
XY Object Table: Travel: 100 mm x 100 mm (electric) / Max Load Capacity: 5 kg / Z Object Table: Travel: 75 mm (electric)
Power Supply: Voltage: 100-240 V AC, 50/60 Hz / Power Consumption: Max 430 VA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
