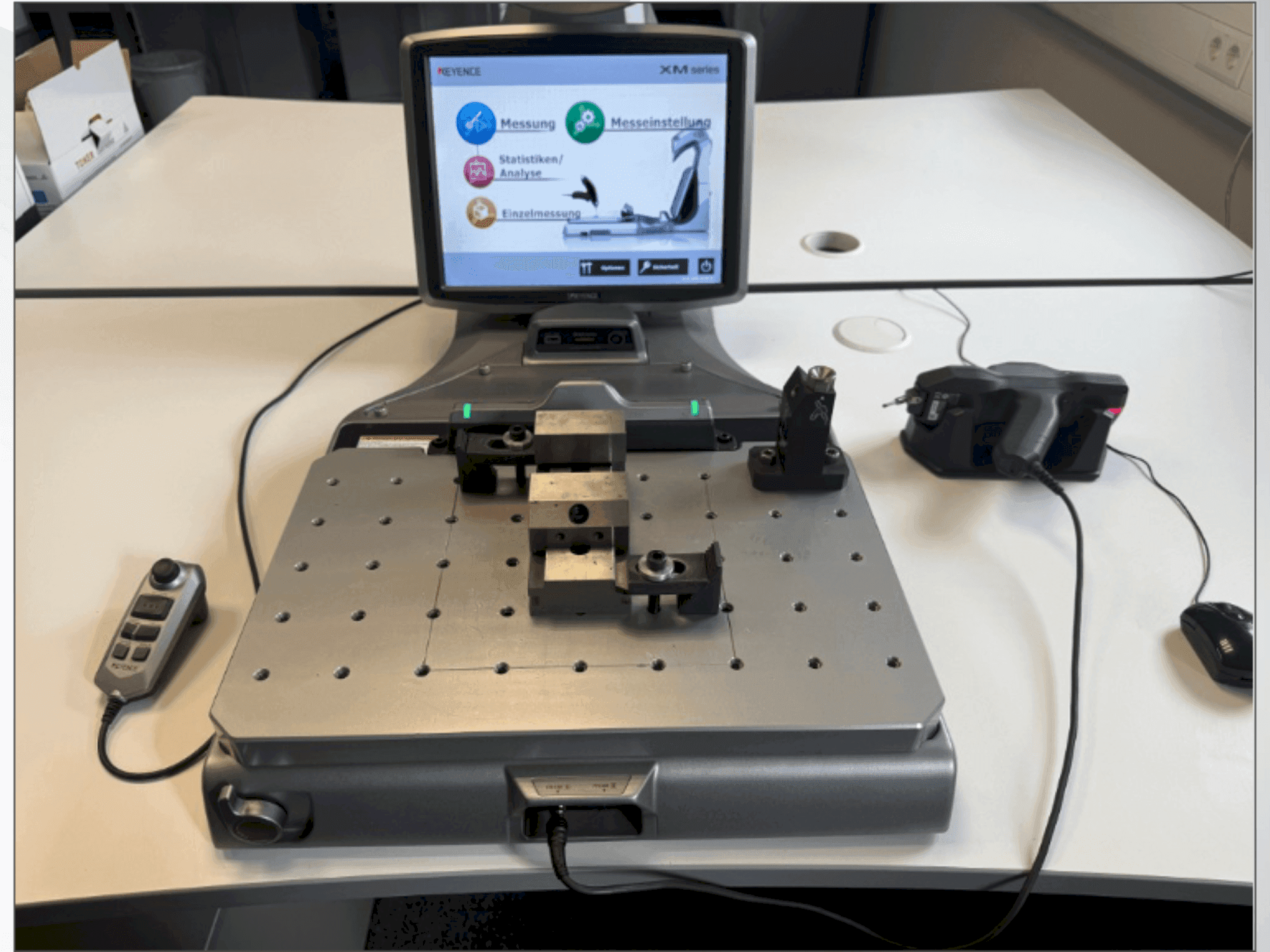

KEYENCE - XM-1200DE-MEA-KEY-2019-00002

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Measuring range: 600 mm × 300 mm × 200 mm
  • - Display unit: 1 μm
  • - Angle: 0. 0001 degrees
  • - Repeat accuracy: measuring table locked: ±3 μm, measuring table unlocked: ±4 μm
  • - Measuring deviation: measuring table locked: ±8 μm1, measuring table unlocked: ±(10 + l/100) μm2
  • - Weight of sensor head: approx. 39. 6 kg (with camera and cable)
  • - Displacement range of the x-axis: ±100 mm
  • - Rotation range: ±60°
  • - Number of measuring probes: 1
  • - Number of marking points: 6
• Qualitative Machine Benefits:
  • - Light source on marker: near-infrared led (870 nm)
  • - Connection for measuring probe: 2 inputs
  • - Input for remote control: associated controller
  • - External remote input: volt-free input (with and without contact): 2 inputs
  • - Communication interfaces: usb 2. 0 series a: 3 connections
  • - Display: built-in display 15-inch lcd monitor (1024 × 768)
  • - Ambient temperature: +10 to +35 °c
  • - Relative humidity: 20 to 80 % rh (no condensation)
  • - Supply voltage: from control unit
  • - Plug type: special plug
