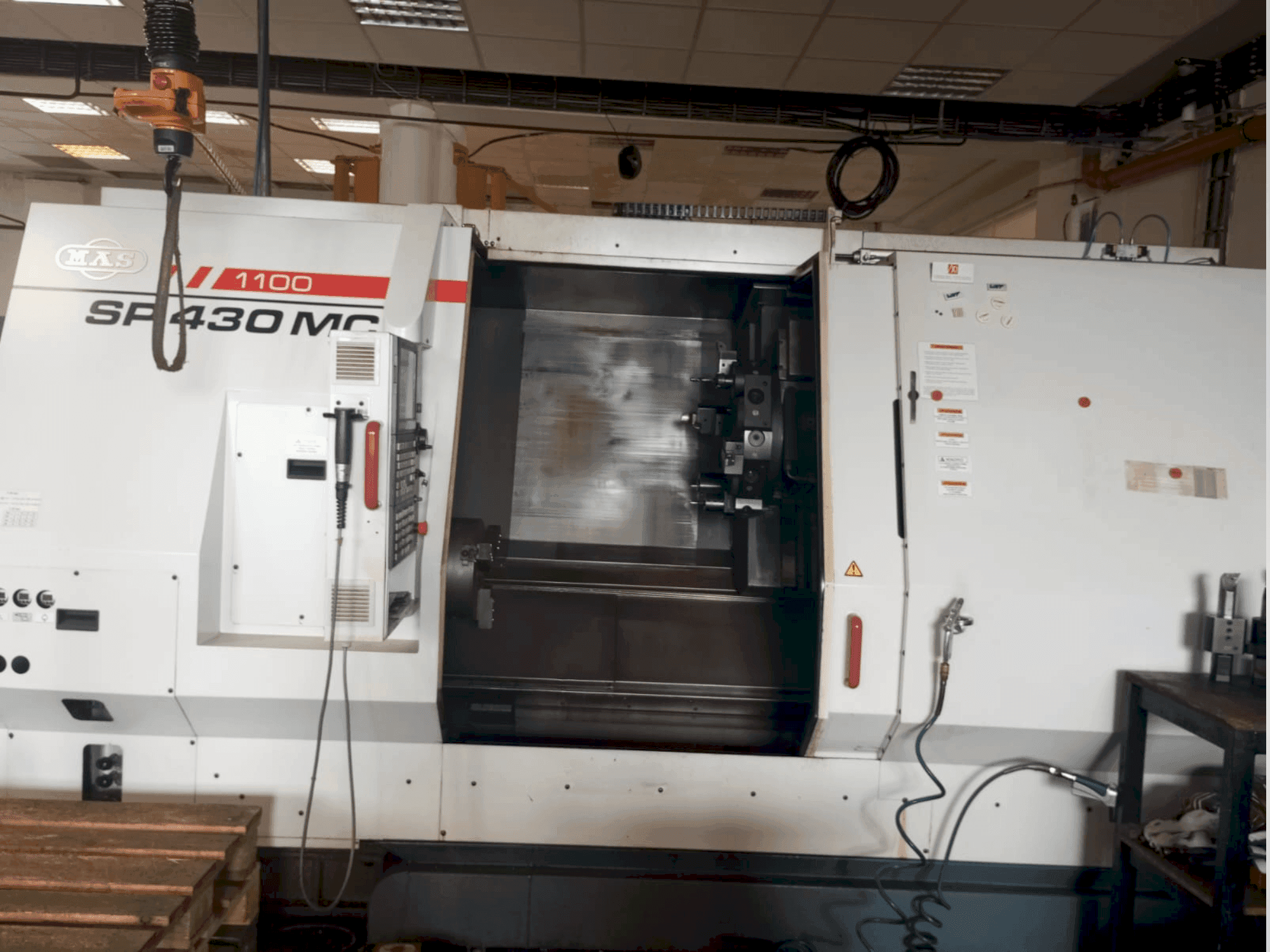

Front view of KOVOSVIT MAS SP 430MC machine
Front view of KOVOSVIT MAS SP 430MC machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

KOVOSVIT MAS - SP 430MCCZ-TUR-KOV-2011-00002

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis KOVOSVIT MAS SP 430MC lathe was manufactured in 2011. It features a maximum turning length of 1100 mm and a turning diameter up to 550 mm. The main spindle supports a bar passage of 90 mm. Equipped with a 12-position tool head and a VDI diameter of 50 mm, it also includes a Fanuc Oi TD control system. Ideal for precision tasks with its robust 12,000 kg frame. Contact us for further details regarding this lathe.

Overview

  • brand: KOVOSVIT MAS
  • year: 2011
  • MODEL: SP 430MC
  • application type: Turning
  • Location: Czech Republic
  • machine type: Turn-Mill Centre
  • control unit brand: FANUC

Technical Information - KOVOSVIT MAS SP 430MC

General Data

  • Measurements width: 2594 MM
  • Measurements depth: 5591 MM
  • Measurements height: 2402 MM
  • Machine weight: 12000 KG

Control Unit

  • Model: Oi TD
  • Brand: FANUC

Main drive

  • Spindle speed range: 3150 1/MIN
  • Spindle motor power: 28 / 42 kW (S1/S6 - 40%)

Movement

  • X-AXIS Movement: 345 mm
  • Z-AXIS Movement: 1225 mm

Workpiece

  • Workpiece drm over bed: 550 mm

Tail Stock

  • Pinol tool taper: MORSE 5

Tools

  • Slots in storage: 12

    Additional Equipment

    • - C axis + milling function (driven tools)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max. Turning length: 1100 mm
        • - Max. Main spindle bar passage: 90 mm
        • - Vdi diameter: 50 mm
        • - Max. Milling rpm: 4,000 rpm
        • - Quill stroke: 160 mm
        • - Quill diameter: 150 mm
        • - Rapid feedrates (30 min-1)
        • - Max. Milling power (100/40%) 8,2/15,4 kw
      • Qualitative Machine Benefits:
        • - Precision from fanuc oi td control very good condition with low hours

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
