➤ Used Krauss Maffei KM350 For Sale | gindumac.com

Show in original language

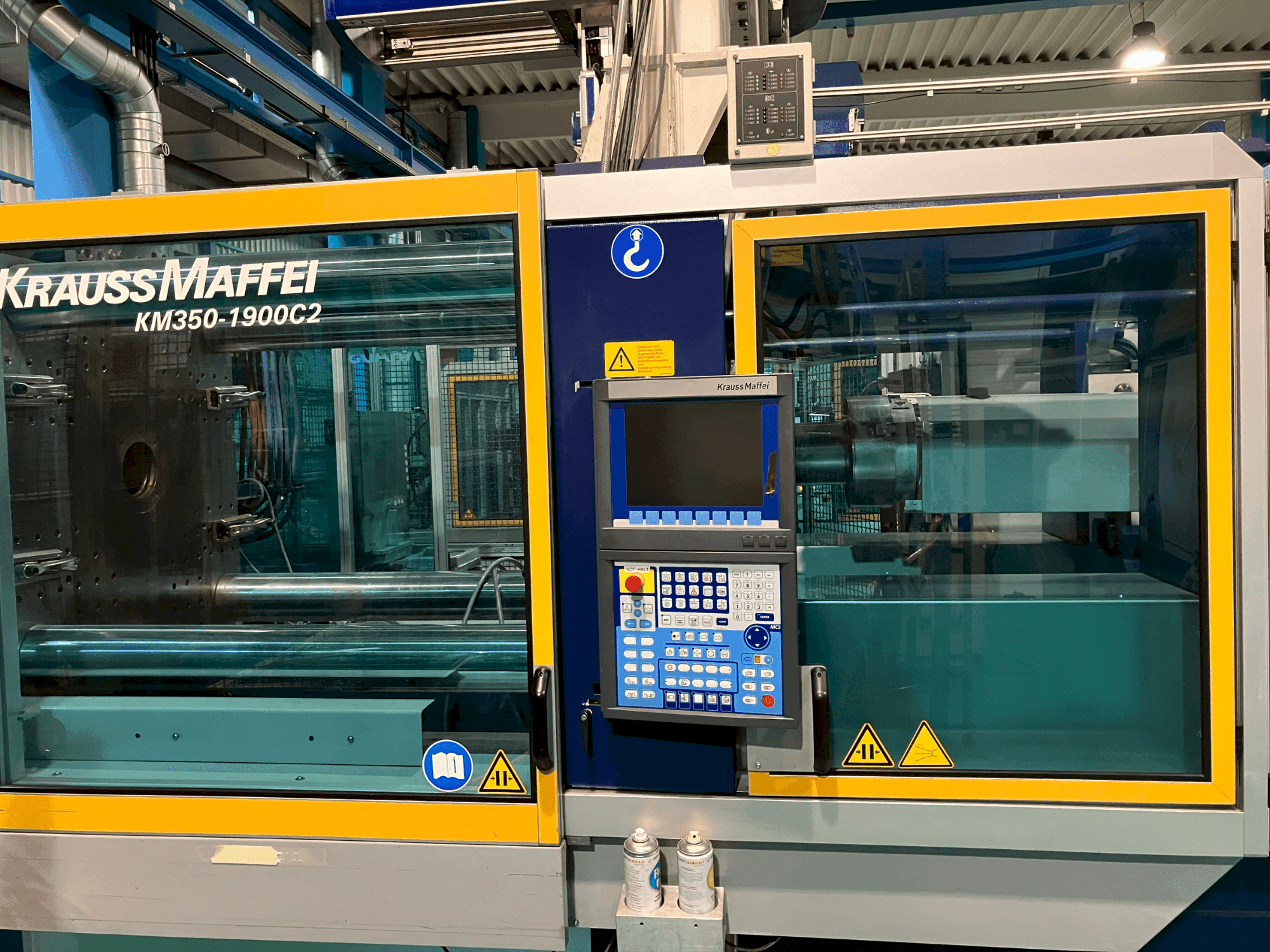

This Krauss Maffei KM350 was manufactured in 2006. It is a hydraulic injection moulding machine, ideal for precision and efficiency in plastic processing tasks. Contact us for more information about this machine.

Overview

brand: Krauss Maffei
year: 2006
MODEL: KM350
production hours: 50000
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei KM350

Control Unit

Brand: KRAUSS MAFFEI
Model: MC-5

Additional Equipment

- Removal Device: Sepro-Robot
- Optional: Sepro extraction system + granulate supply (dehumidifier, granulate dryer, octomat station, etc.)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Injection pressure (bar): 1580/screw diameter (mm): 70/max. Injection volume (ccm): 1046/max. Possible parts volume (ccm): 941
- - Max. Closing force (kn): 3500
- - Machine type: hydraulic/min. Tool installation height (mm): 530/max. Opening stroke (mm): 920
- - Distance between platens: 1450 mm/distance between tie bars horizontal (mm): 710/distance between tie bars vertical (mm): 710
- - Clamping platen size lxw (mm): 1095x1060/centering ring diameter (mm): ds 160 / aws160
- - Thread in ejector plate (wkzg): m 20 x 1. 5/bore in clamping plate (vehicle): 50 mm
- - Coupling size: aw. Bolt large coupl.
- - Ejector adapter plate - end face of coupling: 215 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
