MAG - CFV 1050PL-MIL-MAG-2011-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- MAG CFV 1050 vertical machine center

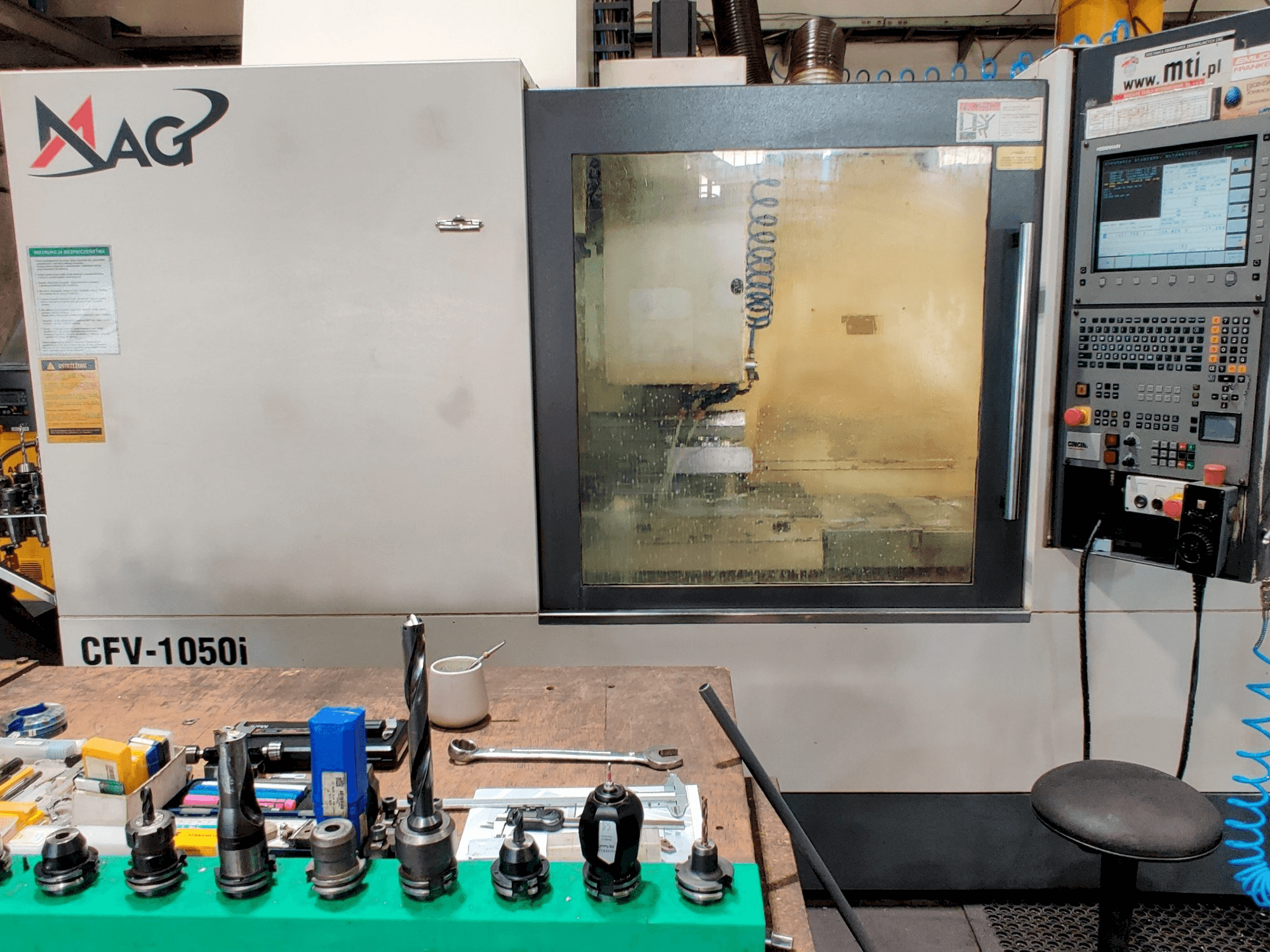

This MAG CFV 1050 vertical machine center was manufactured in the year 2011 in Germany and has 38906 hours, of which 17858 are spindle hours. It is equipped with a HEIDENHAIN iTNC530 control unit and has 3 axis. The machine has a spindle speed of 10000 rpm and the possibility to connect 4-axis to numerical control.
Overview
- brand: MAG
- year: 2011
- MODEL: CFV 1050
- production hours: 38906
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - MAG CFV 1050
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC530
Dimensions
- Machine Depth: 3000 mm
- Machine Weight: 5200 kg
- Table Length: 1120 mm
- Table Width: 600 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1050 mm
- Y-axis Travel: 540 mm
- Z-axis Travel: 720 mm
Technical Specification
- Max. Tool Weight: 6 kg
- Number of Tools: 30
- Spindle Power: 11 kW
- Spindle Speed: 10000 RPM
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
