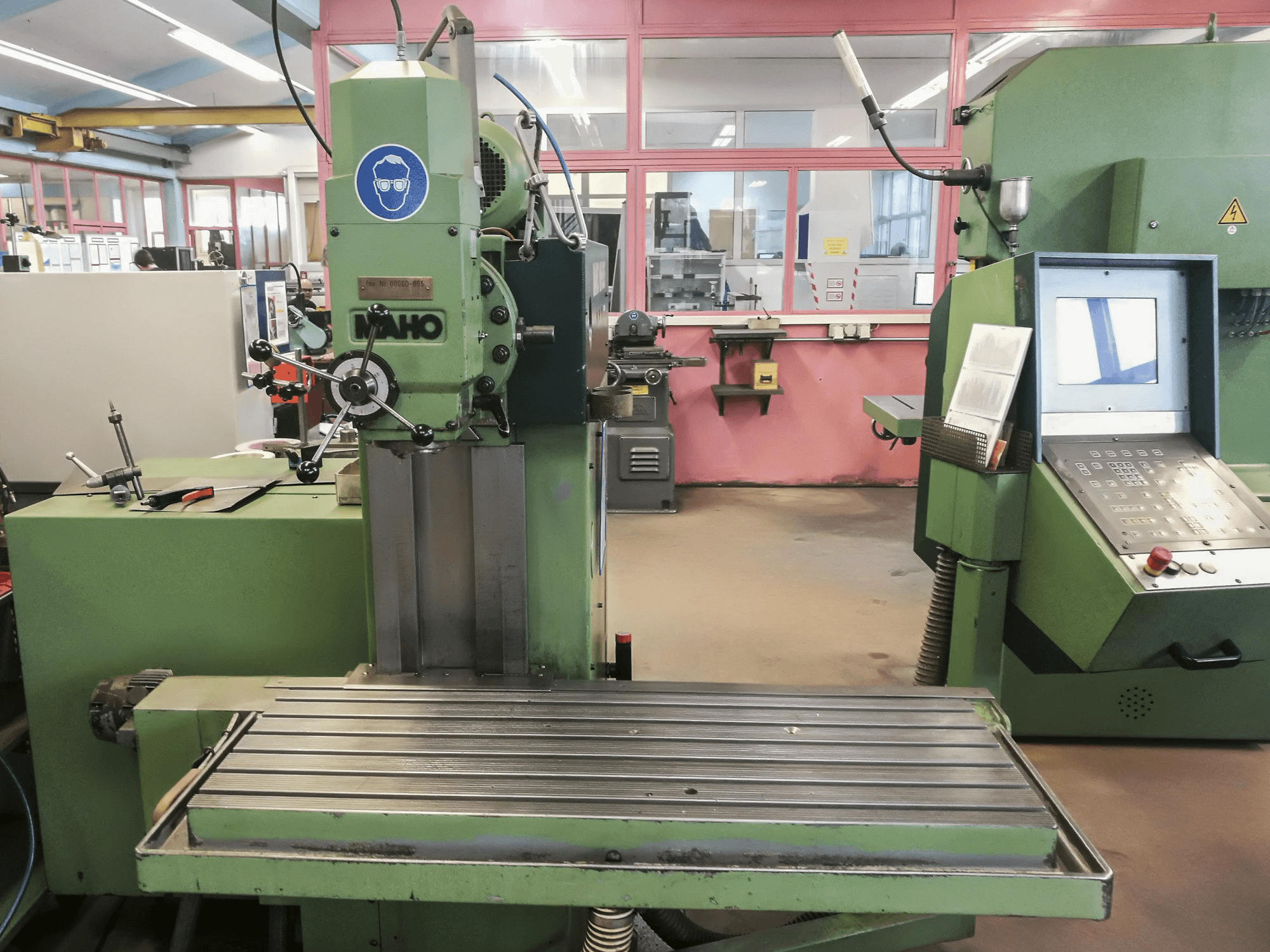

Maho MH 600 E Milling Machine

Show in original language

This Maho MH 600 E Milling Machine with a working record of approximately 9900 production hours was manufactured in 1985 in Germany. Controlled through a Maho CNC 532 Control unit, this machine has mostly processed steel preparing workpieces for other metal working machines during the past.

Overview

brand: MAHO
year: 1985
MODEL: MH 600 E
production hours: 9900
application type: Milling
Location: Switzerland
machine type: Universal Machining Centre
availability: Sold

Technical Information - MAHO MH 600 E

General Data

Measurements width: 2060 mm
Measurements depth: 2941 mm
Measurements height: 1844 mm
Machine weight: 2100 kg

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/min

Movement

X-AXIS Movement: 600 mm
X-AXIS Working Feed: 1500 mm/min
X-AXIS Feed Force: 8 N
X-AXIS Rapid traverse: 3 m/min
Y-AXIS Movement: 400 mm
Y-AXIS Working Feed: 1500 mm/min
Y-AXIS Feed Force: 3.7 N
Y-AXIS Rapid traverse: 2.5 m/min
Z-AXIS Movement: 400 mm
Z-AXIS Working Feed: 1500 mm/min
Z-AXIS Feed Force: 3.7 N
Z-AXIS Rapid traverse: 2.5 m/min

Workpiece

Workpiece drm: 80 mm
Workpiece weight: 400 kg

Table

Outer length: 1144 mm
Outer width: 245 mm
Number of tslots: 6
Distance between: 63 mm

Tools

Max weight: 8 kg
Max tool length: 400 mm

Media

Main electronic connection: 220 / 380 V
Power consumption: 20 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
