Makino - EU64DE-EDM-MAK-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

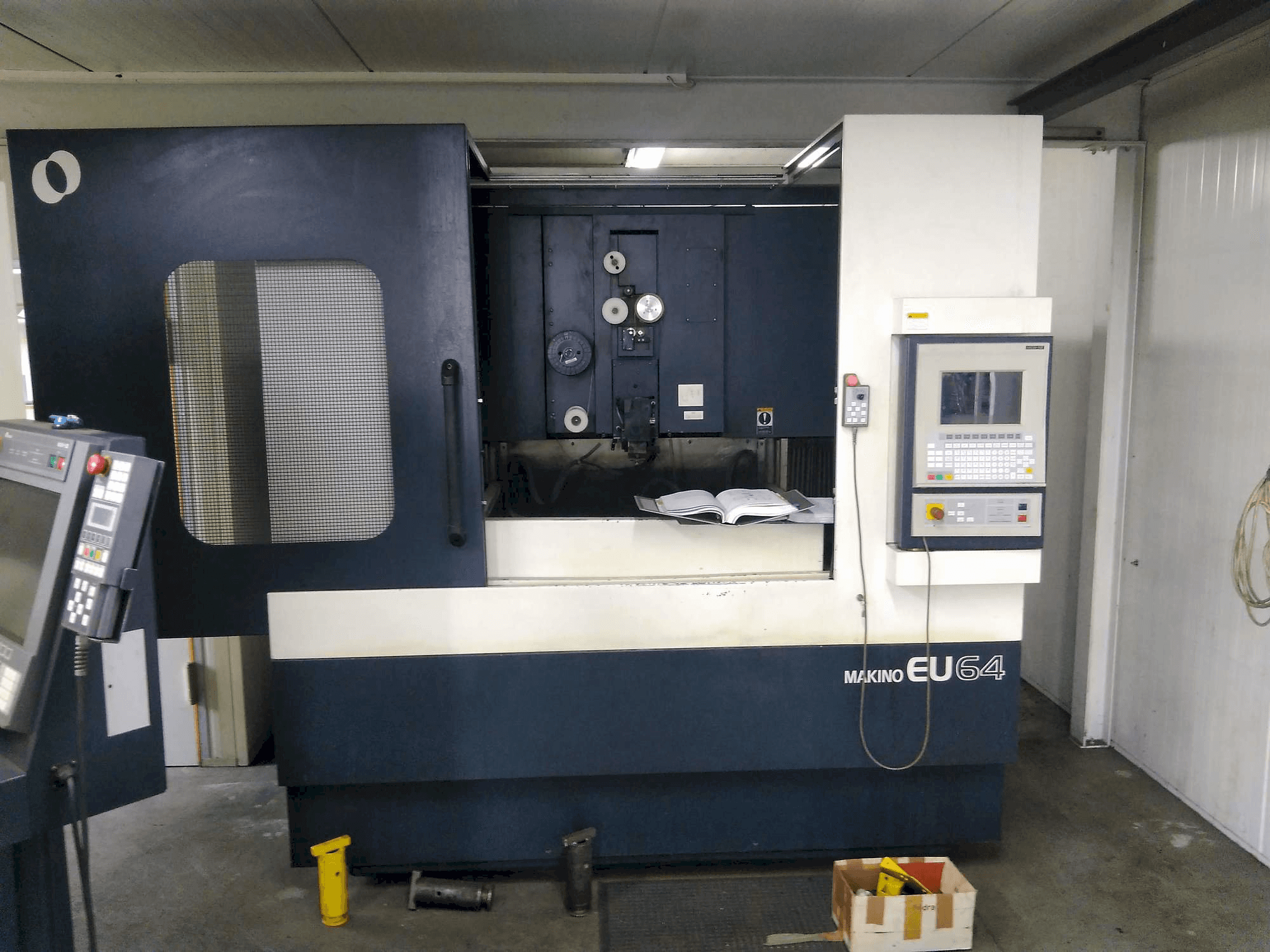

This Makino EU64 CNC eroding machine and wire cutting machine was built in 2007 and has 3805 machine on hours. It is operated through a MAKINO MGW-N2 control unit. This 5 axis machine can work with a workpiece weight 1500 kg and includes several equipment as an optional cutting water bath/coaxial and an automatic wire threading in water jet. It comes with options as a coarse wire storage for spools P15, an automatic threading in small start holes and an automation with handling devices.

Overview

brand: Makino
year: 2007
MODEL: EU64
production hours: 3805
application type: EDM
Location: Germany
machine type: Wire EDM Machine
availability: Sold
control unit brand: MAKINO

Technical Information - Makino EU64

Control Unit

Model: MGW-N2
Brand: MAKINO

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 260 mm
V-Axis Movement: +- 75 mm
U-Axis Movement: +- 75 mm

Workpiece

Workpiece weight: 1500 kg

Additional Equipment

- Coarse wire storage for spools P15
- Automatic threading in small start holes
- Automation with handling devices

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Workpiece dimensions (w x d x h) 940 x 650 x 260 mm
- - Optional cutting water bath/coaxial
- - Automatic wire threading in water jet
- - Cutting with brass wire
- - 5 -axis-steruration x,y,z,u,v and additional axis
- - Anti-electrolysis (ll) generator
- - Integrated cooling system
- - Motorised adjustable working tank
- - New cutting strategies for high suction (v cut)
- - Ce version

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
