Makino J3

Photo Gallery

Makino - J3IN-MIL-MAK-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

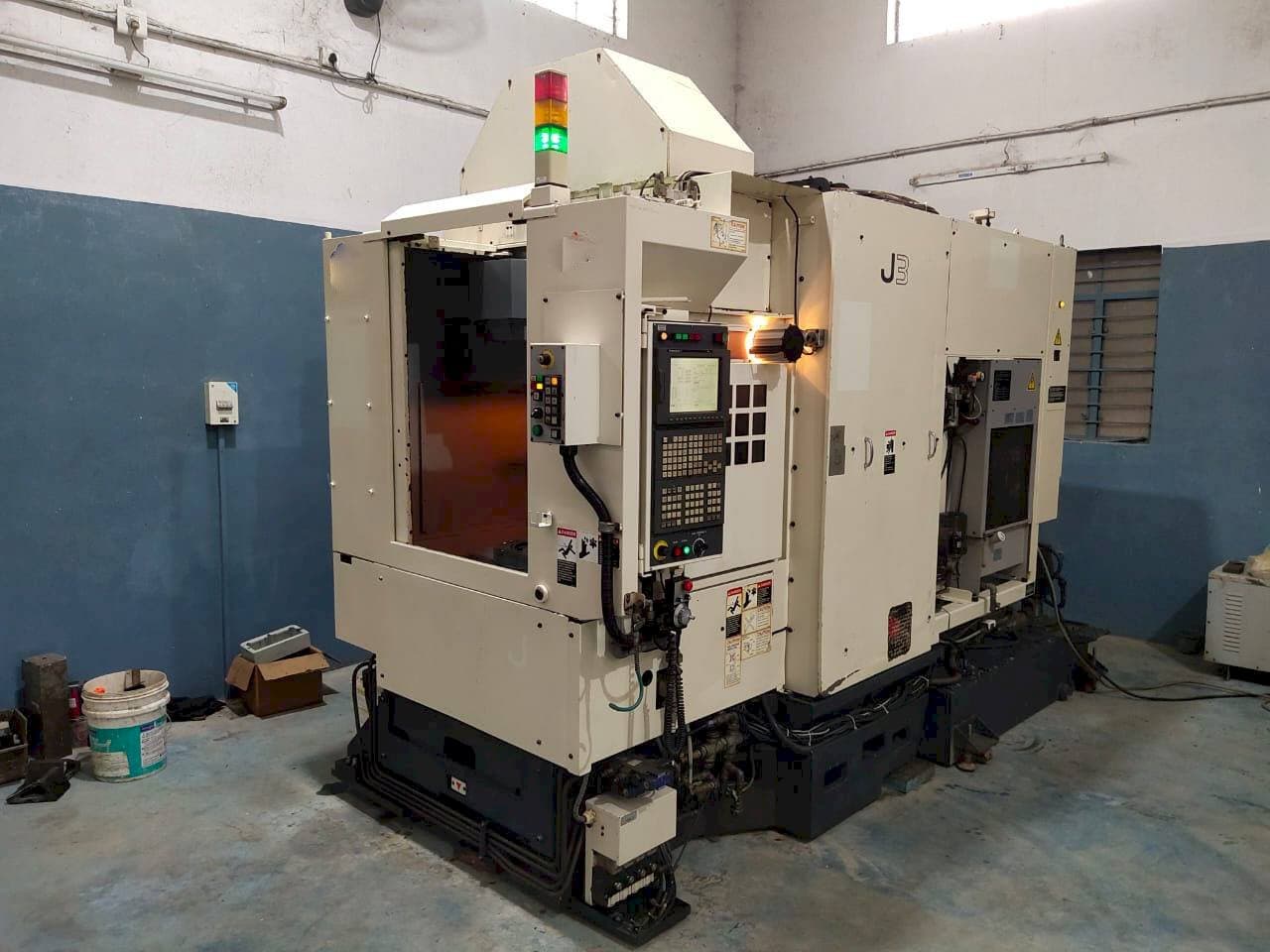

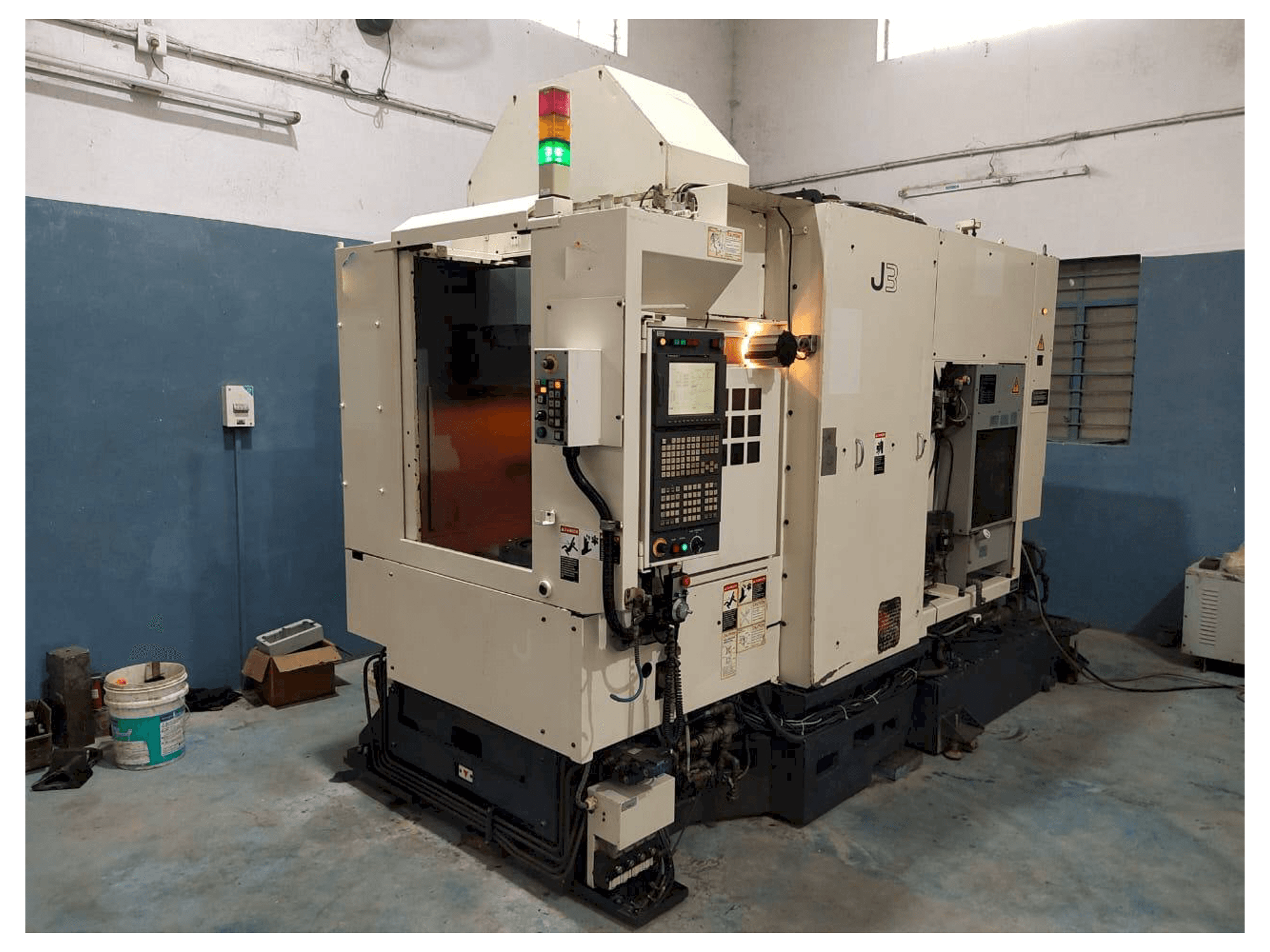

This Makino J3 milling machine from the year 2008 was built in Japan. It is operated through a Fanuc 18iMB control unit. This 4 axis machine can work with a spindle speed range up to 16000 rpm with a power 11/15 kW. 2 units are available.

Overview

brand: Makino
year: 2008
MODEL: J3
application type: Milling
Location: India
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Makino J3

General Data

Measurements width: 1280 MM
Measurements depth: 3795 mm
Machine weight: 6000 KG

Control Unit

Model: 18iMB
Brand: FANUC

Main drive

Spindle speed range: 16000 1/MIN
Spindle motor power: 11/15 KW
Tool taper: HSK-A50
Number of axis: 4

Movement

X-AXIS Movement: 630 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 400 mm

Table

Outer length: 400 mm
Outer width: 400 mm

Tools

Type of tool holder: HSK-A50

Media

Main electronic connection: 380 v 50 hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Atc 30 tool
- - Rapid 60 m/min
- - Feed 50 m/min
- - Rotary table with continues b axis 0. 001 degree

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
