- Mandelli Type 7 Horizontal Machine Center
Show in original language

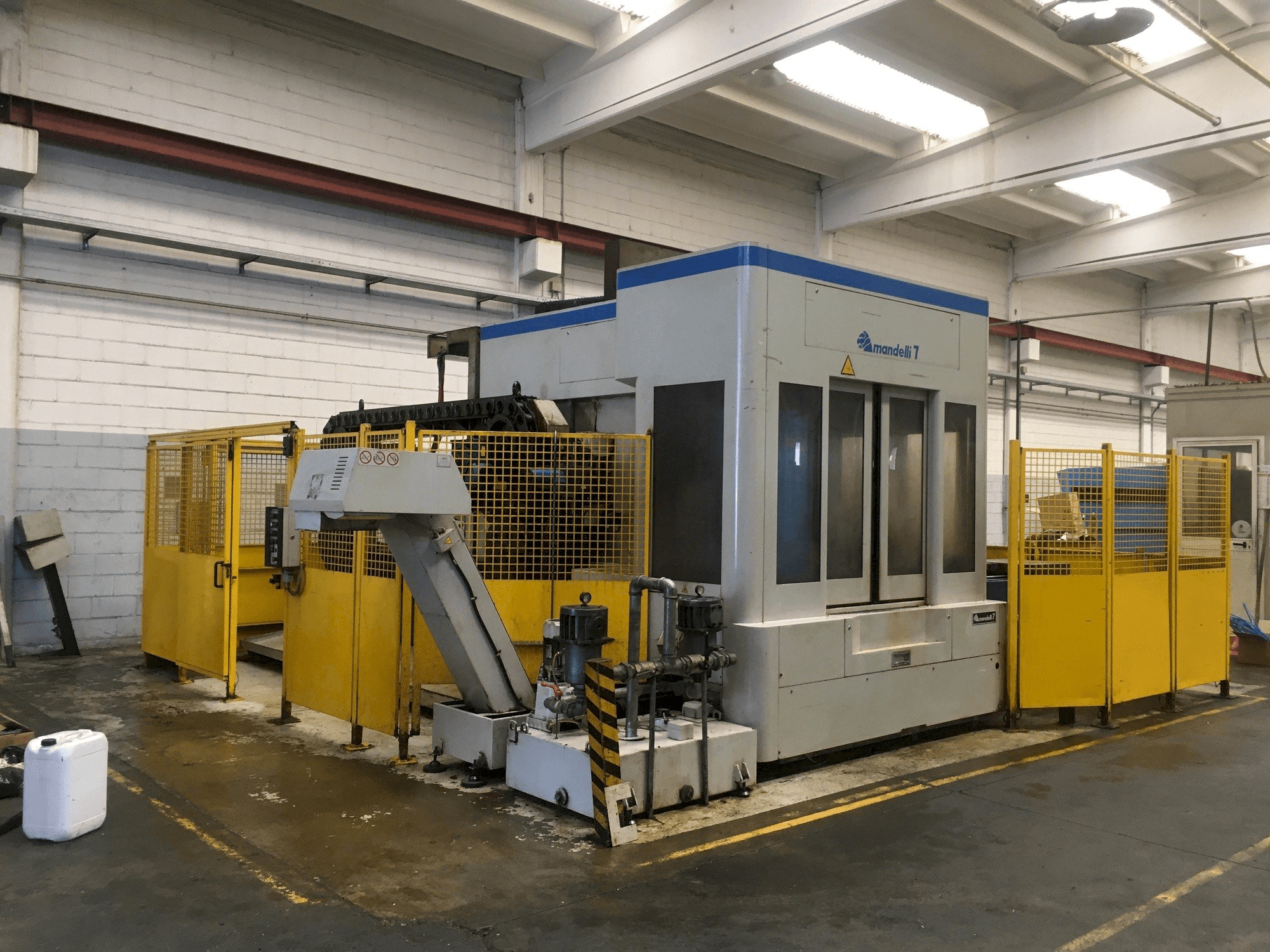

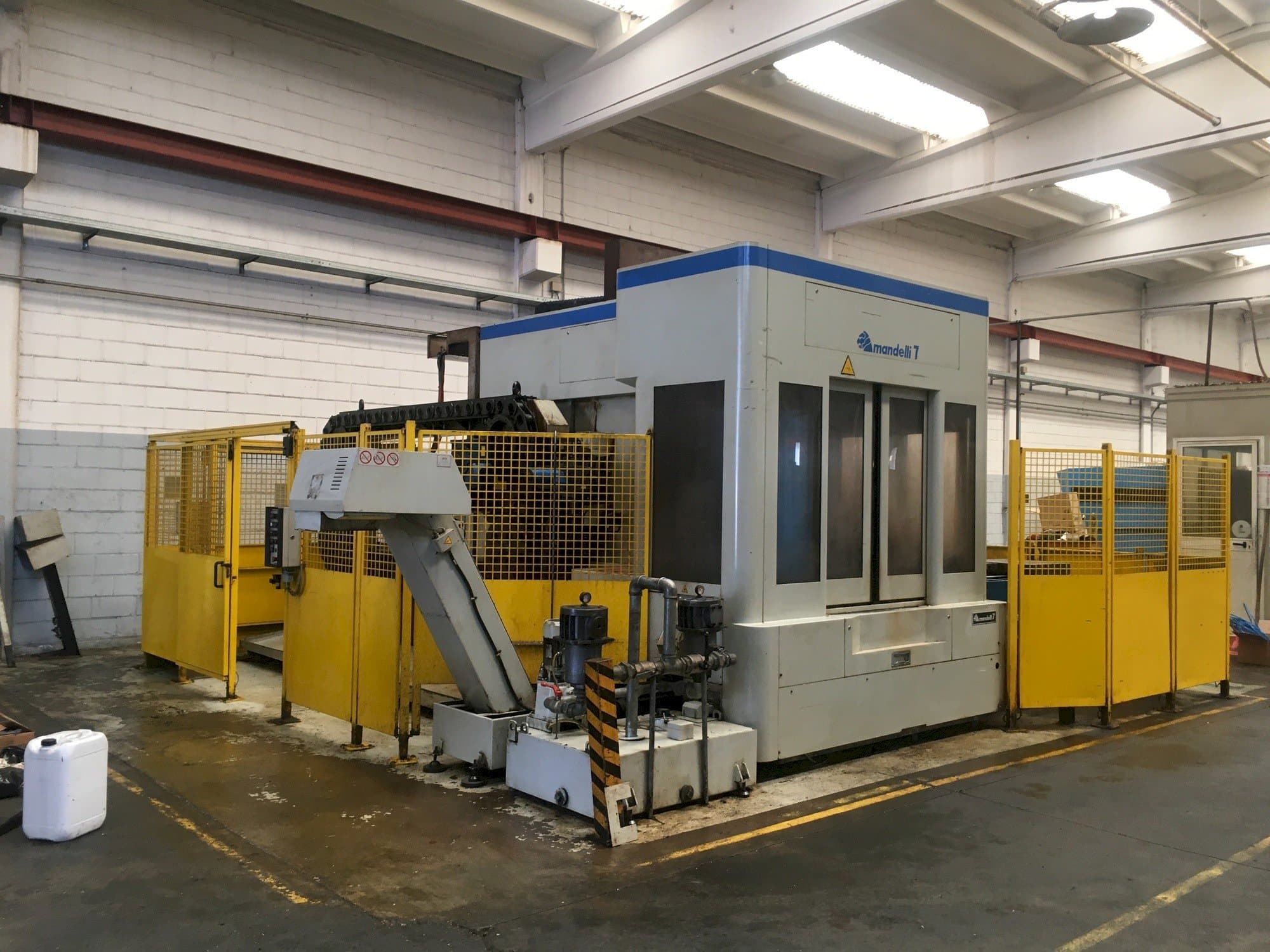

This Mandelli Type 7 Horizontal Machine Center was manufactured in the year 1995. This 3 axis machine has a spindle speed up to 4000 rpm and an acceleration of 1500 mm/s2.
Overview
- brand: Mandelli
- year: 1995
- MODEL: Type 7
- application type: Milling
- Location: Italy
- machine type: Horizontal Machining Centre
Technical Information - Mandelli Type 7
Movement
- Number of Axes: 3
Technical Specification
- Spindle Speed: 4000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Programmable speed: 16/4000 rpm
- Din 50
- Pallet 630x630m
Technical Machine Benefits
- X axis: 1000mm longitudinal
- Y axis: 80mm vertical
- Z axis: transversal
- Max diamter piece: 1100mm
- Axis fast travels: 18,000 mm/min
- Advance while working 10-18,000 mm/min
- Accelleration: 1500 mm/s2
- Motor power: 5,7kw
- Milling head u25/4000
- Power of the head: 25kw
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
