➤ Used MASTERWOOD MASTERDRILL TF 600 SA | For Sale

Show in original language

This CNC Wood Machining Centre was manufactured in 2020. The Masterwood MASTERDRILL TF 600 SA features dual 3.5 kW milling spindles with a maximum speed of 18,000 rpm and air cooling. It handles workpieces from 400 to 2500 mm in length and 400 to 950 mm in width, with thicknesses from 8 to 60 mm. If you are looking to get high-quality milling capabilities, consider the Masterwood MASTERDRILL TF 600 SA machine we have for sale. Contact us for more information.

Overview

brand: MASTERWOOD
year: 2020
MODEL: MASTERDRILL TF 600 SA
production hours: 0
application type: Milling (Wood)
Location: Germany
machine type: CNC Wood Machining Centre

Technical Information - MASTERWOOD MASTERDRILL TF 600 SA

Main drive

Spindle speed range: 18000 rpm 1/MIN
Spindle motor power: 3.5 kW

Workpiece

Workpiece x: 8~ 60 mm
Workpiece y: 400 ~ 950 mm
Workpiece z: 400 ~ 2500 mm

Tools

Type of tool holder: ER 25

Additional Equipment

- Machine work table fully managed by NC.
- NC-controlled side aligner for perfect alignment.
- Masterwork for easy programming.
- Master Drill: Human-machine interface.
- Trepan: For manual and equipment operations.

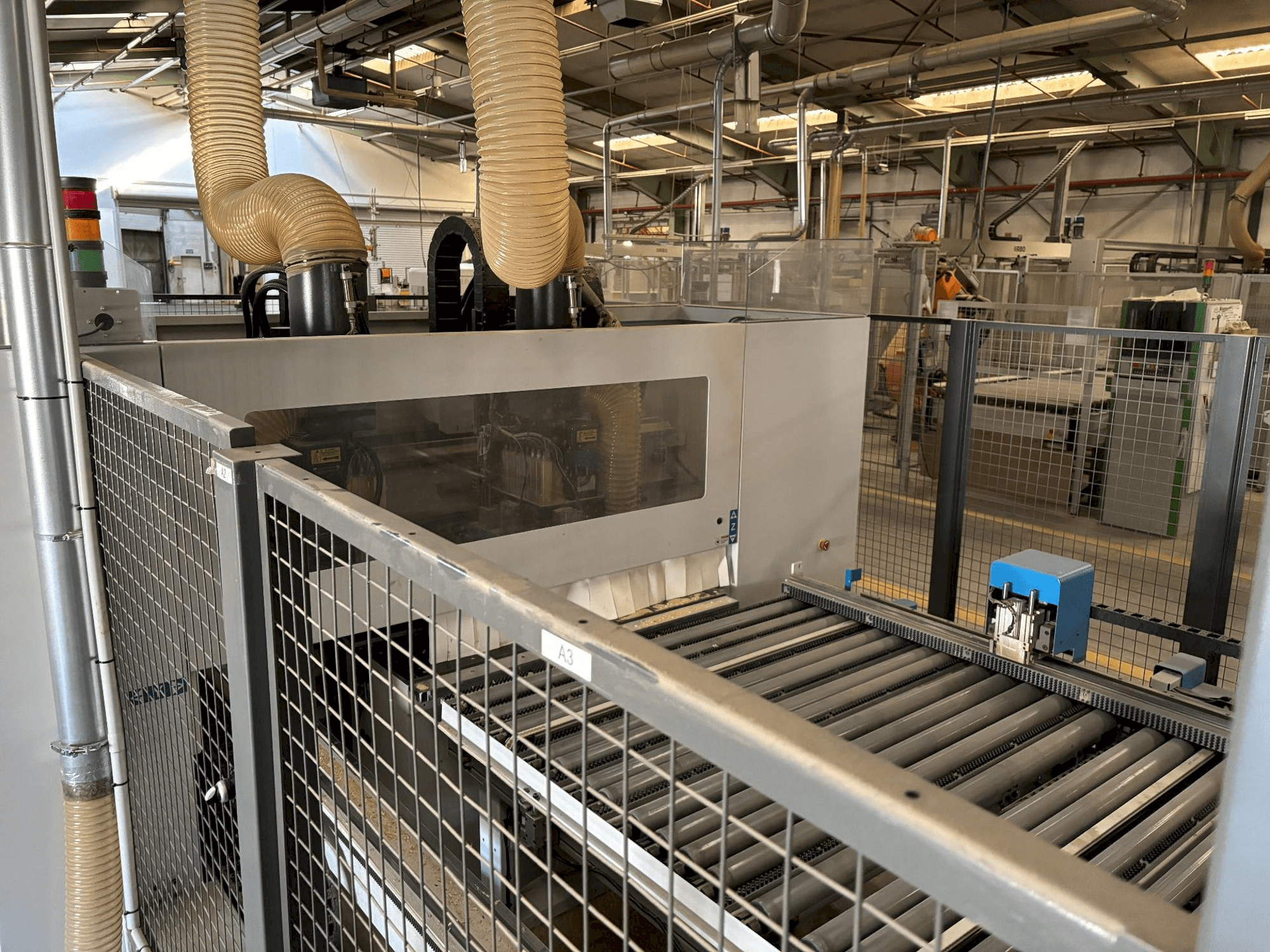

- Automatic barcode scanner at the infeed
- Palette CAM start software

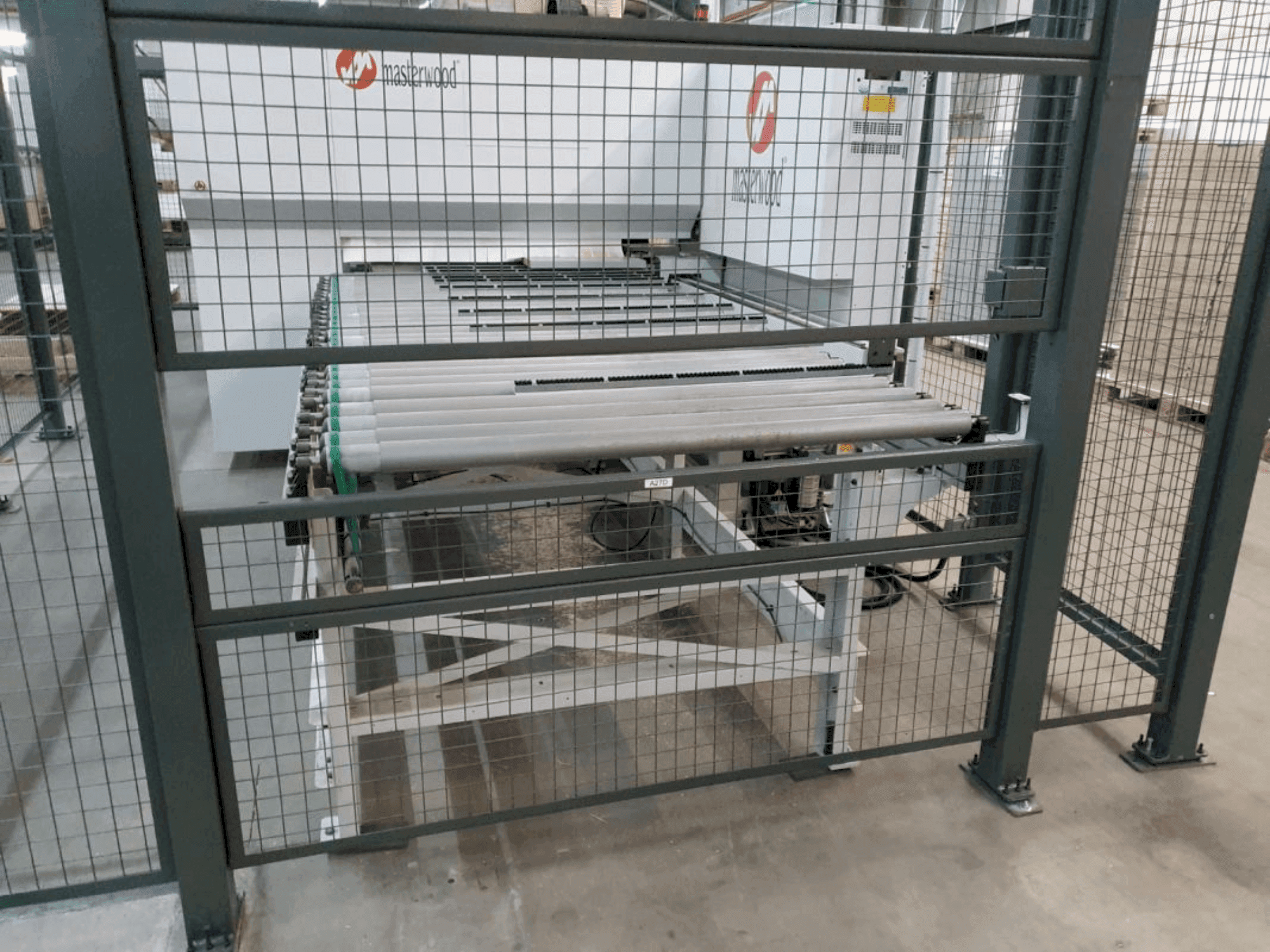

- Motorized roller conveyor for loading workpieces at the infeed

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Motorized conveyor belt with sensor control.
- - Upper drilling heads: vertical drills in x direction: 7+7 vertical drills in y direction: 5+5
- - Upper drilling heads: horizontal drills in x direction: 2x2 + 2+2 horizontal drills in y direction: 2+2
- - Lower drilling head: vertical drills: 3x3
- - Grooving saw: maximum diameter of the saw blade: 125 mm
- - Grooving saw: grooves can be sawn from a minimum of 55 mm to a maximum of 850 mm
- - Right-left rotation
- - Operation by inverter
- - Air cooling

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
