Matec 30 HV Vertical Machining Center

Show in original language

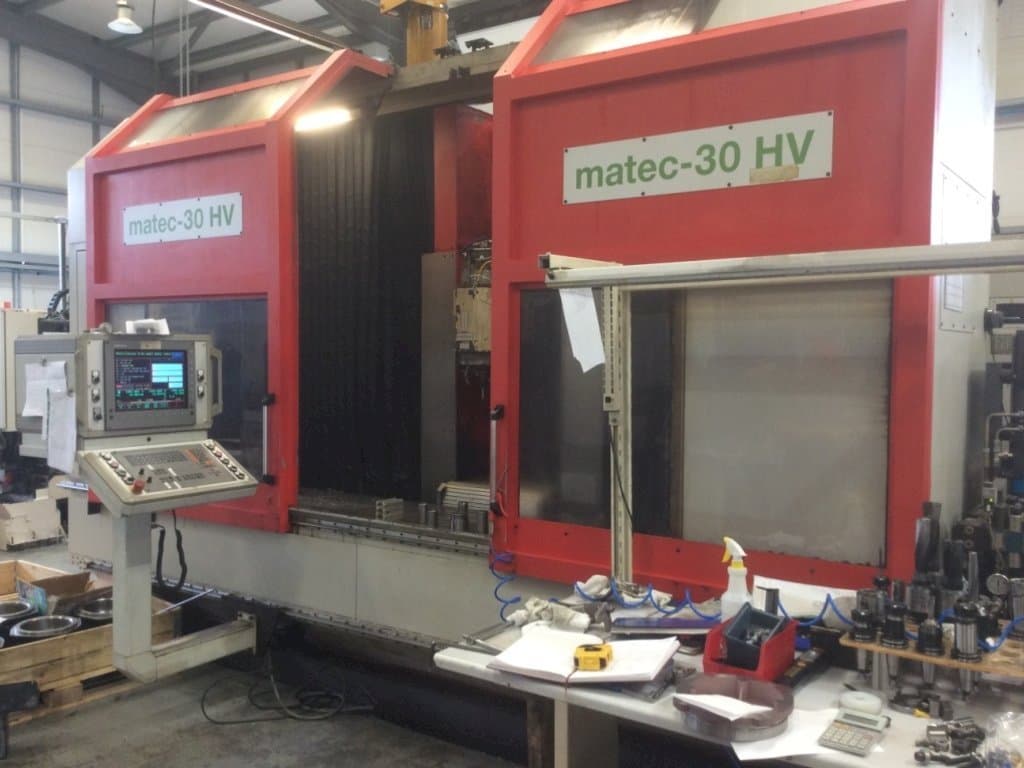

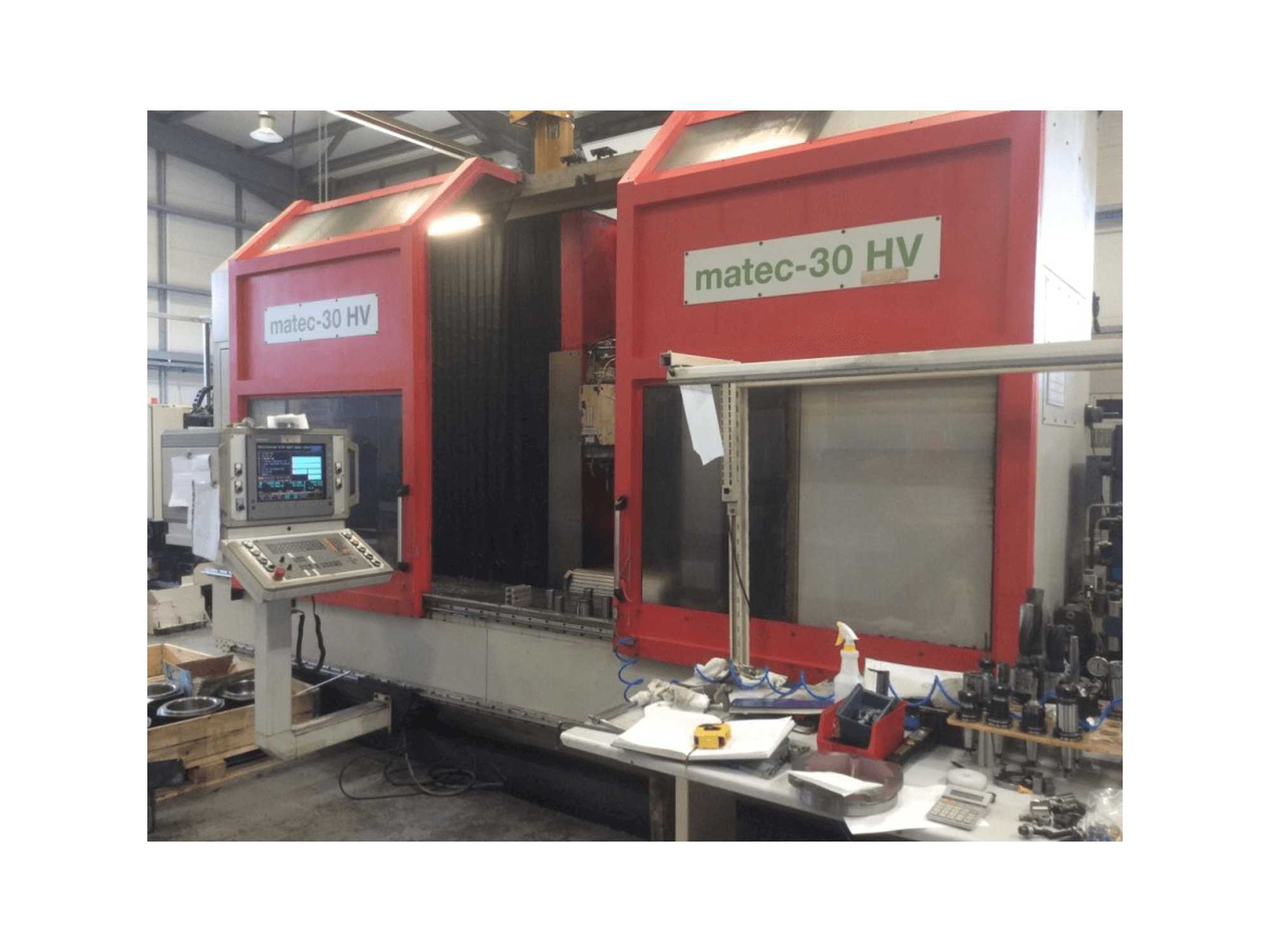

This Matec 30 HV Vertical Machining Center was built in Germany in 2001. It counts with only 29861 production hours. It is equipped with a Heidenhain 426 control unit. This machine is capable of working with a spindle speed up to 15000 rpm. It includes a Kuma 20 bar high pressure coolant unit, a 4th axis on table, and a 5th axis on table. It presents very good conditions.

Overview

brand: Matec
year: 2001
MODEL: 30 HV
production hours: 29861
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Matec 30 HV

General Data

Measurements width: 4600 mm
Measurements depth: 5900 mm
Measurements height: 4500 mm
Machine weight: 11000 kg

Control Unit

Model: 426
CNC main language: English
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 15000 1/MIN

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 700 mm
B-AXIS Movement: +/- 90 °

Workpiece

Workpiece weight: 1362 kg

Table

Outer length: 3500 mm
Outer width: 650 mm
Number of tslots: 5

Tools

Slots in storage: 48
Max tool diameter: 130 mm
Max tool length: 450 mm
Type of tool holder: SK 40

Media

Main electronic connection: 400 V
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Additional equipment

Kuma 20 Bar High Pressure Coolant Unit
4th Axis on table (A Axis)
5th Axis on table ( C Axis)

Machine Benefits

Qualitative Machine Benefits

Machine in very good condition

Technical Machine Benefits

6 axis machining centre. (x, y, z, b, a , c)
Included 20 bar high pressure coolant
Through spindle coolant
3. 5m long bed
48 tool atc
Travelling column machining centre

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
