➤ Used Matec MATEC 30 HV/K For Sale | gindumac.com

Show in original language

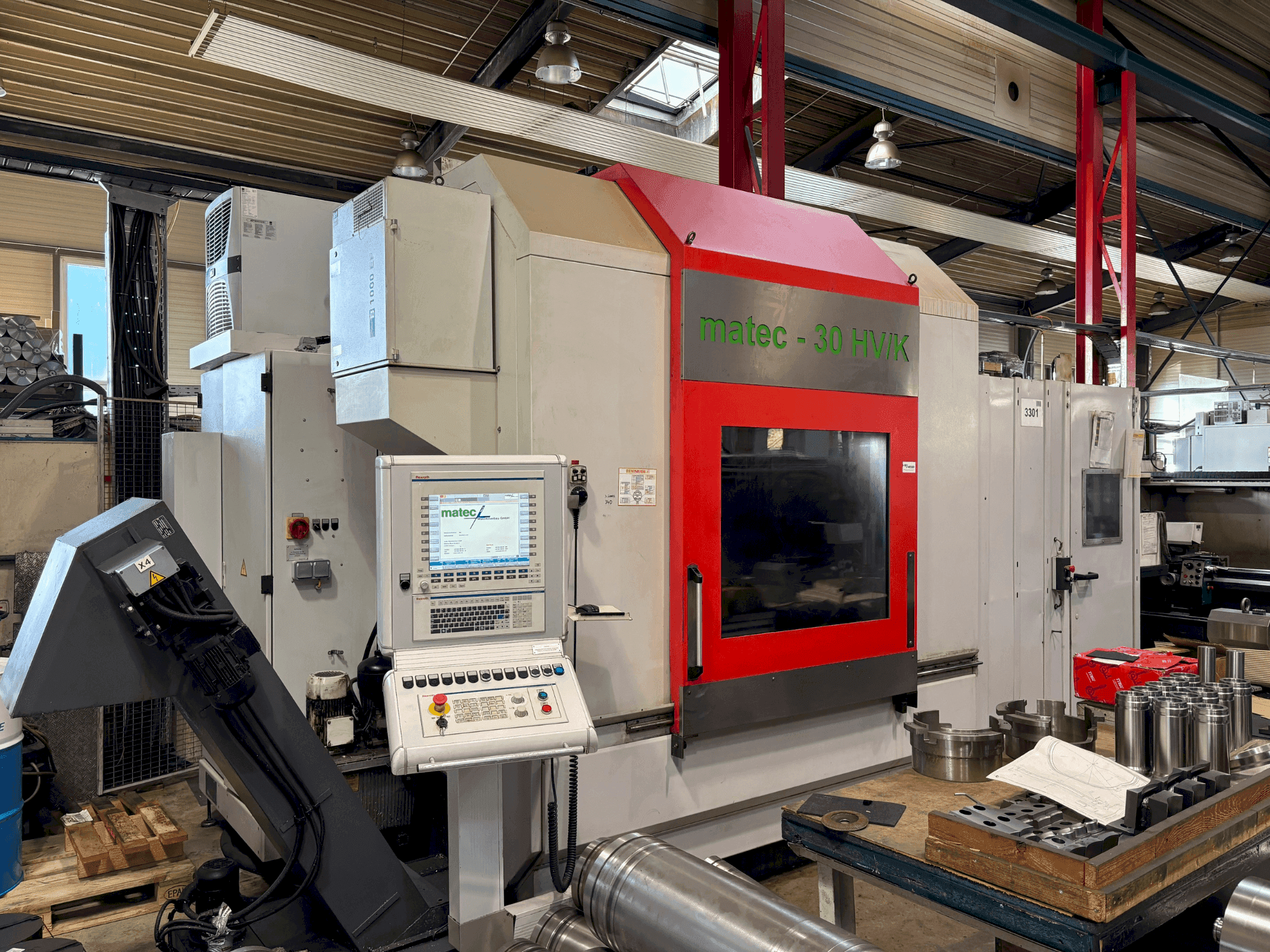

This 4-axis Matec MATEC 30 HV/K was manufactured in 2007, featuring a robust vertical machining center design. It includes a Rexroth control, a standard spindle with a speed range of 20-15,000 rpm, and a maximum torque of 100 Nm. The machine offers a tool changer with a capacity of 36 tools and a machine table that supports up to 400 kg. If you are looking to get high-quality milling capabilities consider the Matec MATEC 30 HV/K machine we have for sale. Contact us for more information.

Overview

brand: Matec
year: 2007
MODEL: MATEC 30 HV/K
production hours: 14136
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Matec MATEC 30 HV/K

Control Unit

Brand: HEIDENHAIN
Model: iTNC530

Main drive

Spindle speed range: 15000 1/MIN
Spindle motor power: 16 kW
Tool taper: HSK 63
Number of axis: 4

Movement

X-AXIS Movement: 1300 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 800 mm

Table

Table load: 400 kg

Tools

Number of index: 36
Type of tool holder: SK40/DIN 69871 or HSK 63-A

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Hard disk: 26 gb
- - Integrated network card
- - Max. Torque: 100 nm (40% ed)
- - Temperature-controlled liquid cooling
- - Work area: fully encapsulated with roof, bellows (steel slats)
- - Installation: height-adjustable set-up elements
- - Matec hv 30 was overhauled in 2016 by manufacturer matec maschinenbau
Qualitative Machine Benefits:
- - The machine was manufactured in 2007 but was retrofitted in 2016

Extra information

- Cooling & Accessories Coolant: High-pressure Coolant Supply (20 bar, optional 40 bar) Paper Belt Filter (30 µm fineness) Tank Volume: 450 l Chip Conveyor: Integrated Scraper Conveyor Oil Mist Extraction: Electrostatic Filter (1000 m³/h) Measuring & Safety Technology Direct Measuring System: Linear encoder in all axes 3D Measuring Probe: Radio transmission to the control system Tool Monitoring: Laser-supported Tool Breakage Monitoring Tool Length Measurement (software) Optional Spindle (HSK 63-A): Higher Power: 30 kW / 190 Nm Drilling Capacity (steel): up to 60 mm Milling Capacity: approx. 500 cm³/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
