Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Matsuura - H-PLUS-405DE-MIL-MAT-2011-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Matsuura H-PLUS-405 Horizontal Machining center
Show in original language

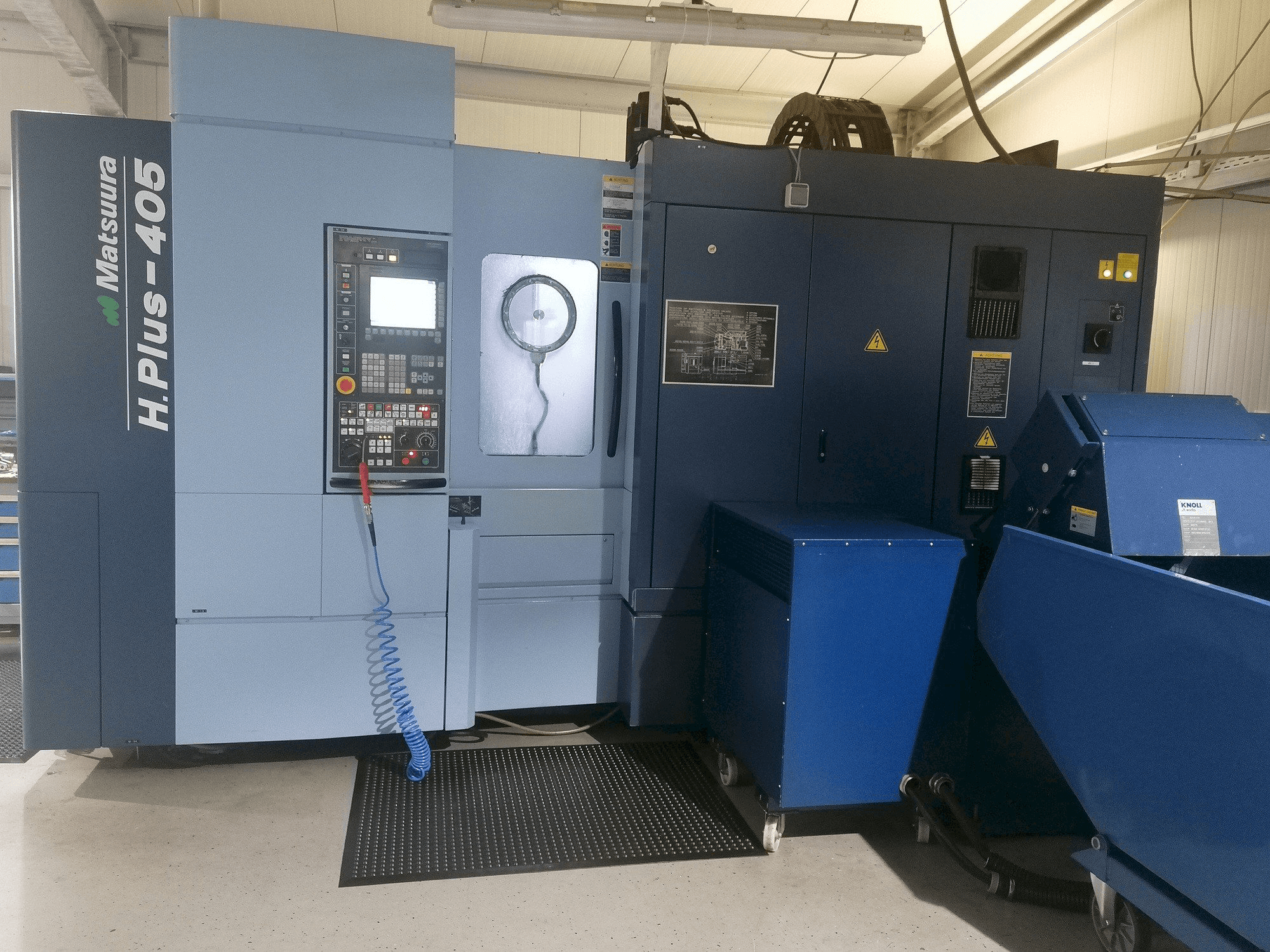

This Matsuura H-PLUS-405 Horizontal Machining center was manufactured in Japan in 2011. It is equipped with a Siemens 840Di control unit. This 3 axis machine has a spindle speed between 40 - 12000 rpm and a HSK 63 tool taper.
Overview
- brand: Matsuura
- year: 2011
- MODEL: H-PLUS-405
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - Matsuura H-PLUS-405
Control Unit
- Control Brand: SIEMENS
- Control Model: 840Di
Dimensions
- Machine Depth: 4200 mm
- Machine Height: 2800 mm
- Machine Weight: 10400 kg
- Table Length: 500 mm
- Table Load: 400 kg
- Table Width: 500 mm
Movement
- Number of Axes: 3
- X-axis Travel: 660 mm
- Y-axis Travel: 660 mm
- Z-axis Travel: 660 mm
Technical Specification
- Spindle Power: 22 kW
- Spindle Speed: 12000 RPM
- Taper Size: HSK 63
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Available slots: 51 = tool positions
- Rotary table can position itself 1 degree
- The machine also has an nc table
- Simultaneous milling is possible in 0. 001 degree increments
- High quality option
Technical Machine Benefits
- Coolant system tank weight 810 kg
- Record changer with 2 pallets
- Disc magazine with servo drive 5. 1
- Knoll coolant system
- Spiral clamp conveyor
- 8 free m functions
- Rotating lens
- Coolant spray
- Pallet changer with 2 pallets 500x500
- 1 clamping tower from vischer u. Bolli 400x400mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
