Matsuura - MC 600 VFSI-MIL-MAT-1997-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

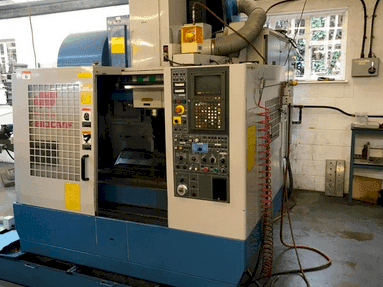

Matsuura MC 600 VF Vertical Machining Center

Show in original language

This Matsuura MC 600 VF Vertical Machining Center was built in the year 1997. It is equipped with a Yasnac i80M control unit. This 4 axis machine has a spindle speed range 30 – 8000 rpm, table size 870 x 400 mm and 4th axis Nikken. It is in great working condition ready to use.

Overview

brand: Matsuura
year: 1997
MODEL: MC 600 VF
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Matsuura MC 600 VF

General Data

Measurements height: 2717 mm
Machine weight: 4000 KG

Main drive

Spindle speed range: 30 – 8000 1/MIN
Spindle bore: 80 mm
Tool taper: BT40
Number of axis: 4

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 410 mm
Z-AXIS Movement: 470 mm

Table

Outer length: 870 mm
Outer width: 400 mm
Min distance between vertical spindle and table: 150 mm
Max distance between vertical spindle and table: 620 mm
Table load: 400 KG

Media

Main electronic connection: 480V / 60Hz
Power consumption: 36 kVA
Oil tank: 4.2 L

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Includes 4th axis nikken
- - Cooling trough spindle
- - 20 position atc
- - Spindle chiller
- - Coolant tank
- - Include tools brt 40
- - Include back up with parameters
Qualitative Machine Benefits:
- - Great working condition ready to use

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
