Mazak AJV-18N

Photo Gallery

Mazak - AJV-18NDE-MIL-MAZ-1991-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

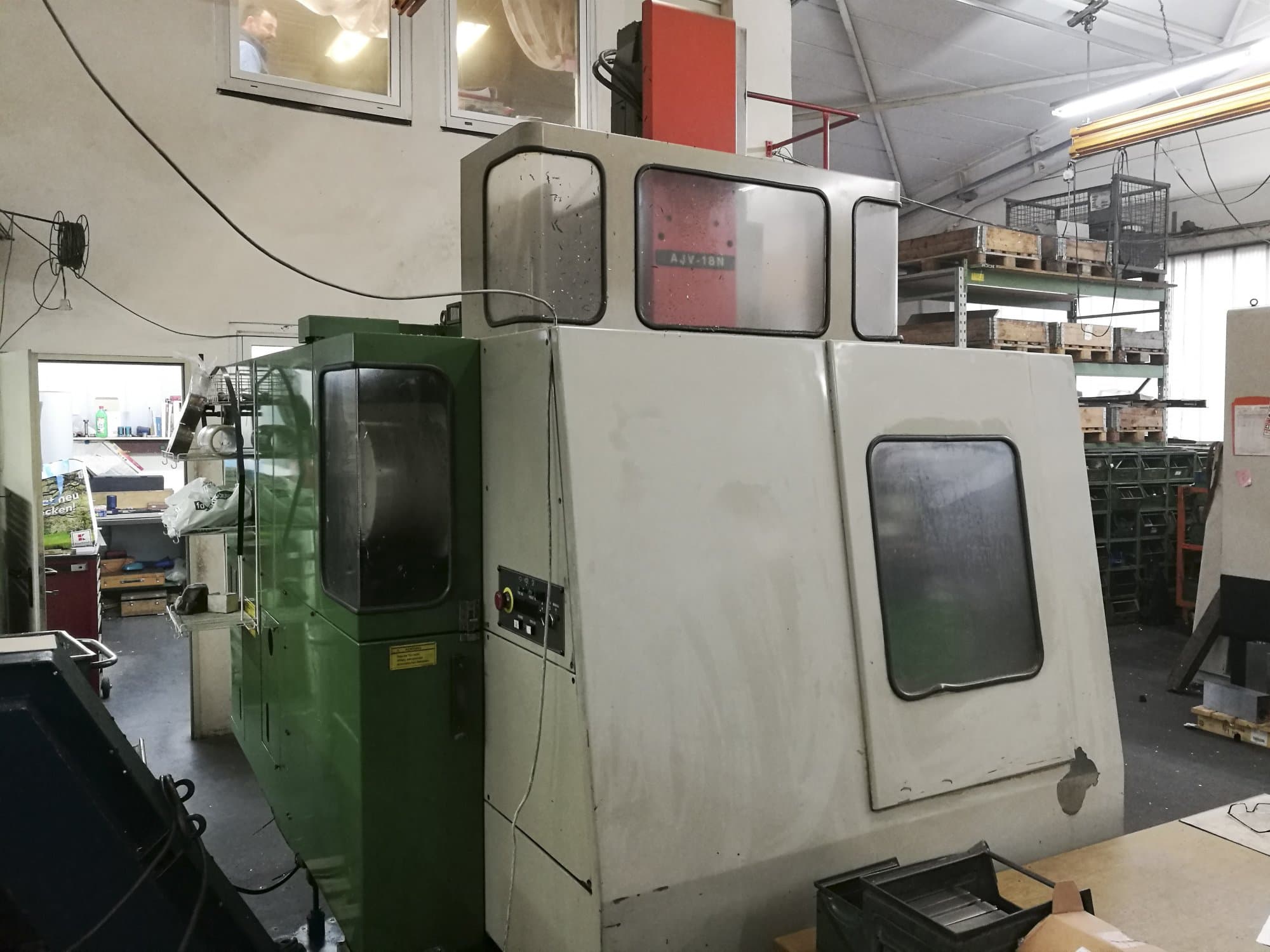

Mazak AJV-18N Milling Machine

Show in original language

This Mazak AJV-18N is a Milling Machine which has been manufactured in 1991 in Japan is equipped with a Mazak Mazatrol M32 control unit. With a working record of approximately 70000 working hours, this product stands out due to its good range of movement as well as its good table load.

Overview

brand: Mazak
year: 1991
MODEL: AJV-18N
production hours: 70000
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: MAZATROL

Technical Information - Mazak AJV-18N

General Data

Measurements width: 4200 mm
Measurements depth: 4000 mm
Measurements height: 3000 mm
Machine weight: 4600 kg

Control Unit

Model: Mazatrol M32
Interface: Serial
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/min
Spindle motor power: 5.5 kW
Tool taper: ISO 40

Movement

X-AXIS Movement: 560 mm
X-AXIS Rapid traverse: 30000 mm/min
X-AXIS Backlash: 0.002 mm
Y-AXIS Movement: 410 mm
Y-AXIS Rapid traverse: 30000 mm/min
Y-AXIS Backlash: 0.01 mm
Z-AXIS Movement: 400 mm
Z-AXIS Rapid traverse: 18000 mm/min

Workpiece

Workpiece weight: 300 kg

Table

Outer length: 400 mm
Outer width: 900 mm
TSlots size: 18 mm
Number of tslots: 3
Distance between: 125 mm

Tools

Slots in storage: 30
Max weight: 8 kg
Max tool diameter: 100 / 150 mm
Max tool length: 250 mm

Media

Main electronic connection: 380 V / 50 Hz
Air pressure: 6 bar
Chip conveyor: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
