Mazak HCN-8800

Photo Gallery

Mazak - HCN-8800IT-MIL-MAZ-2008-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

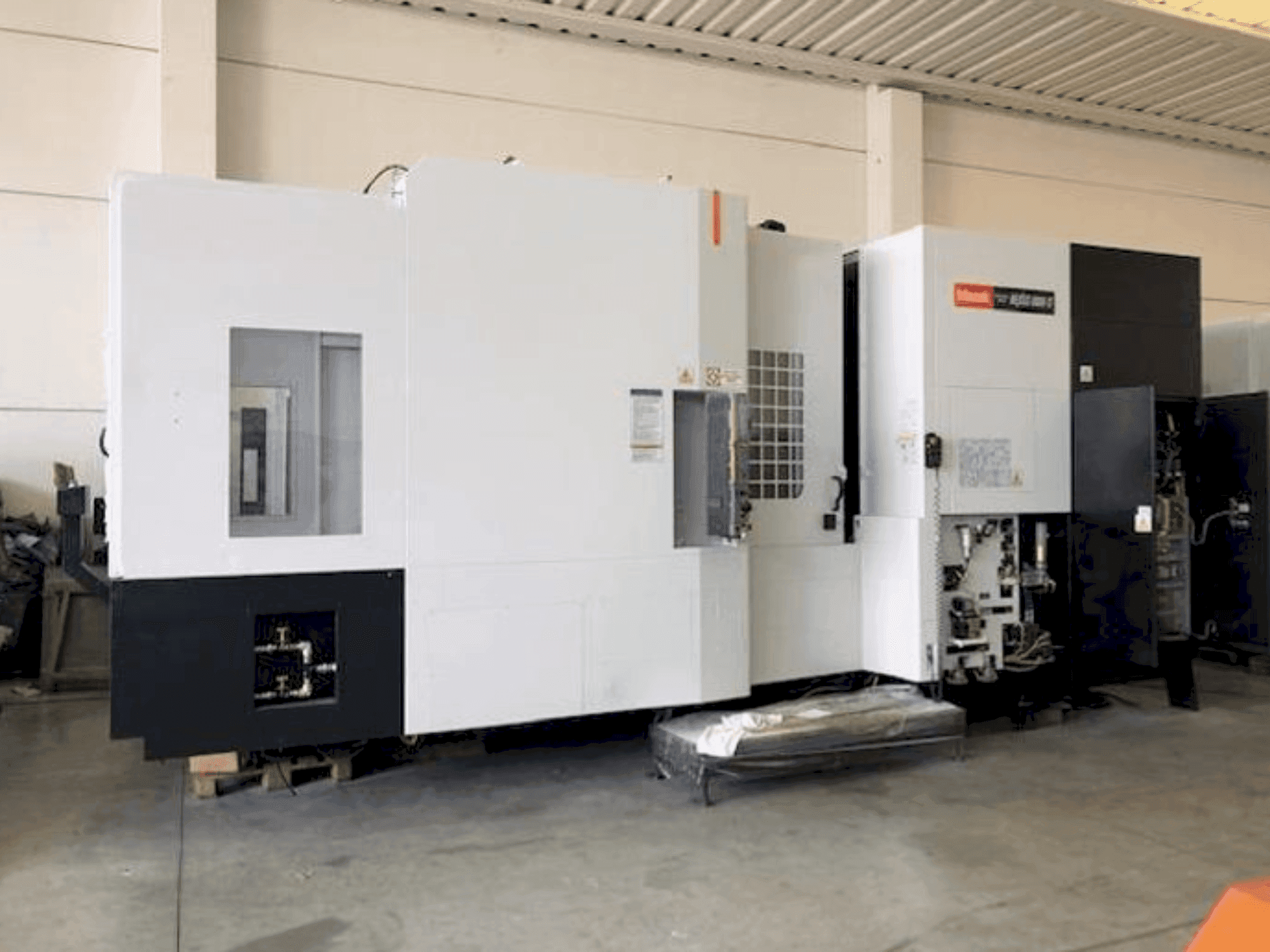

MAZAK HCN-8800 Horizontal Machining centre

Show in original language

This MAZAK HCN-8800 Horizontal Machining centre was manufactured in the year 2008 in Japan. It is equipped with a MATRIX 1 control unit. The machine disposes of a 4 axis and a spindle. Tool magazin with a capacity of 120 tools.

Overview

brand: Mazak
year: 2008
MODEL: HCN-8800
production hours: 0
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre

Technical Information - Mazak HCN-8800

General Data

Measurements width: 3881 mm
Measurements depth: 7966 mm
Measurements height: 3726 mm
Machine weight: 31300 kg

Control Unit

Model: 1

Main drive

Number of axis: 4

Movement

X-AXIS Movement: 1400 mm
X-AXIS Rapid traverse: 60000
Y-AXIS Movement: 1200 mm
Y-AXIS Rapid traverse: 60000
Z-AXIS Movement: 1325 mm
Z-AXIS Rapid traverse: 60000

Tools

Slots in storage: 120
Max weight: 30 kg
Max tool diameter: 250 MM
Max tool length: 630 MM

Media

Cooling pressure: 50 BAR

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Board length (board) 800 // board width (board) 800
- - Distance between table top and spindle nose (table) 100-1425
- - Max. Dimensions piece (length x width x height) (table) d. 1450 x h. 1450
- - Table surface (spindle) tapped holes
- - Max. Weight workpiece (mandrel) 2200
- - Spindle (chuck) 8000 / spindle attachment (chuck) iso 50
- - Torque (cont. / 10 min) (spindle) 1218 nm
- - Tool selection method (atc magazine) fixed // tool change time (atc magazine) 5 sec.
- - Cooling tank (coolant) 500l
- - Table 800x800 4th axis continuous

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
