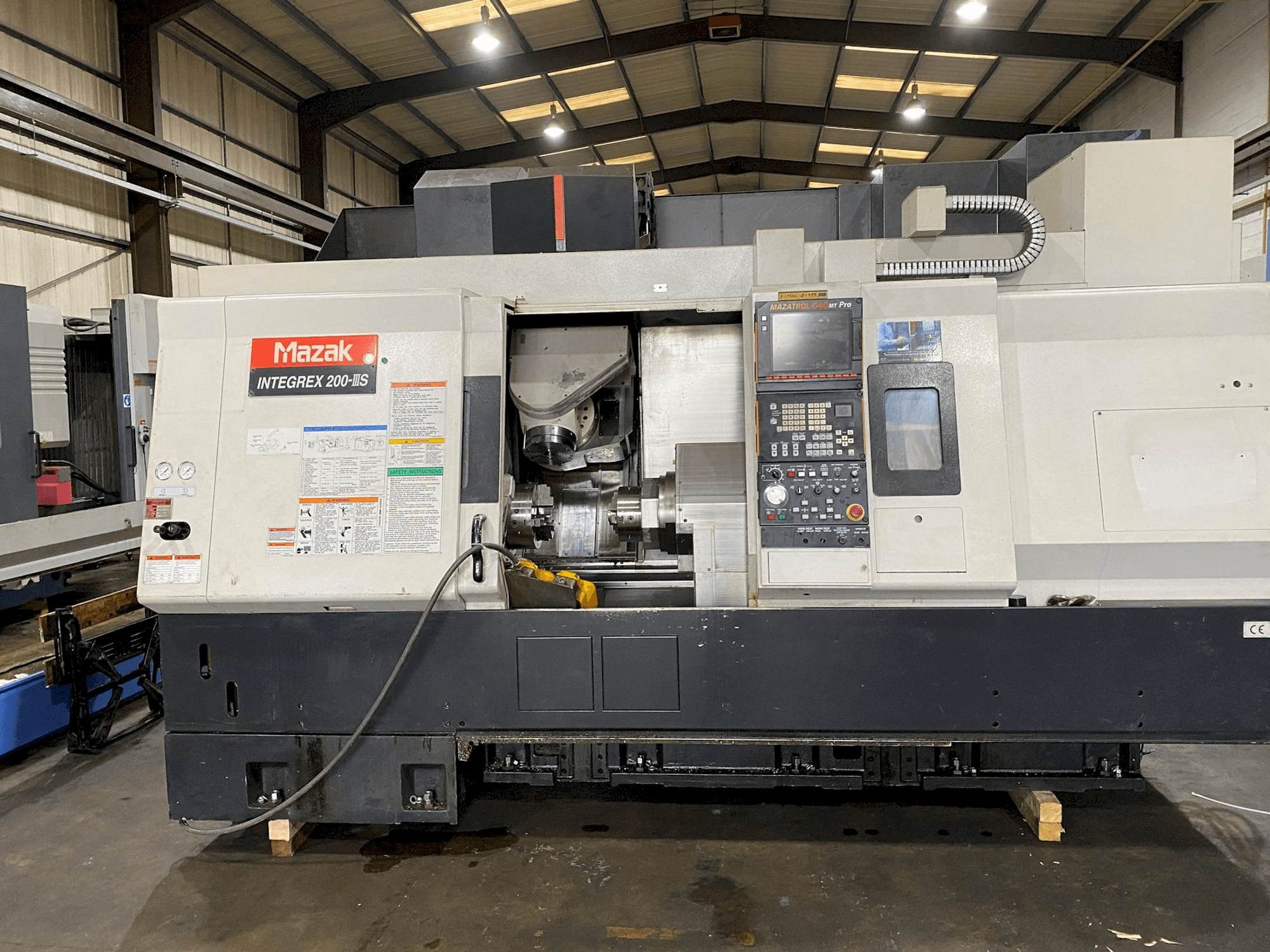

Front view of Mazak Integrex 200 III-S machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Integrex 200 III-S

Photo Gallery

Mazak - Integrex 200 III-SGB-TUR-MAZ-2004-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak Integrex 200 III-S Lathe machine

Show in original language

This Mazak Integrex 200 III-S Lathe machine was manufactured in 2004 in Japan. This 6 axis machine is operated through a MAZATROL 640MT PRO control unit. It work with a spindle speed up to 5000 rpm and a spindle motor Power of 22/15 kW. This machine is in good conditions.

Overview

brand: Mazak
year: 2004
MODEL: Integrex 200 III-S
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak Integrex 200 III-S

General Data

Measurements width: 3820 mm
Measurements depth: 2060 mm
Measurements height: 2597 mm
Machine weight: 9600 kg

Control Unit

Model: MAZATROL 640MT PRO
Brand: MAZATROL

Main drive

Number of spindles: 2
Spindle speed range: 5000 1/MIN

Movement

X-AXIS Movement: 580 mm
Y-AXIS Movement: +/- 80 mm
Z-AXIS Movement: 1045 mm
B-AXIS Movement: -30 /+195 DEGREES MM

Tools

Slots in storage: 40
Max weight: 10 KG
Max tool diameter: 90 MM
Type of tool holder: Capto C6

Media

Power consumption: 78.6 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 660 mm
- - Maximum cutting length 1000 mm
- - Maximum cutting diameter 380 mm
- - Bar capacity 65 mm
- - Milling motor power 15 kw, max. Rpm 12. 000
- - C axis 0. 001 degrees
- - Spindle motor power 22/15 kw
- - Rapid feedrates xyz: 38 x 26 x 38m/min
- - Sub-spindle speed 5000 rpm, power 18. 5 kw, c axis 0. 001 degrees
- - 3 jaw chuck 200 mm, tool setter, coolant, swarf conveyor, b axis
Qualitative Machine Benefits:
- - Good condition
- - Machine manual

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
